Note:

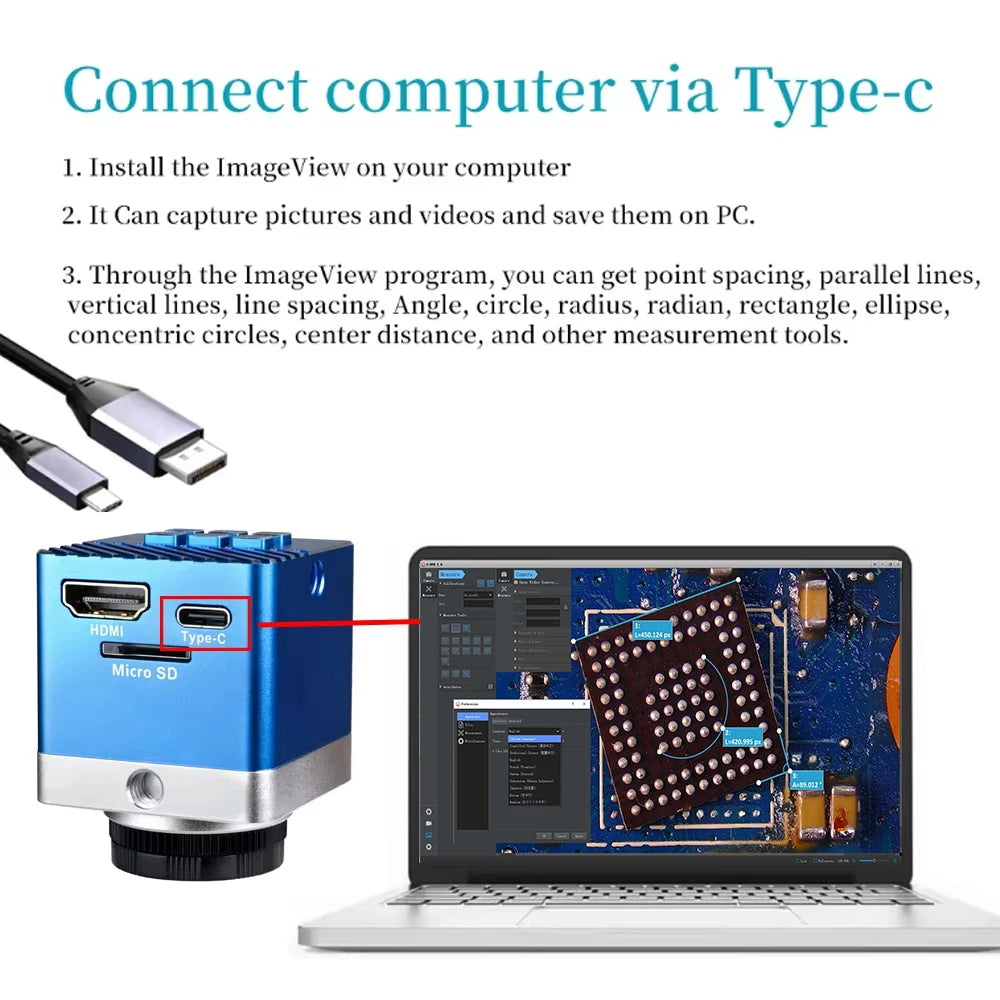

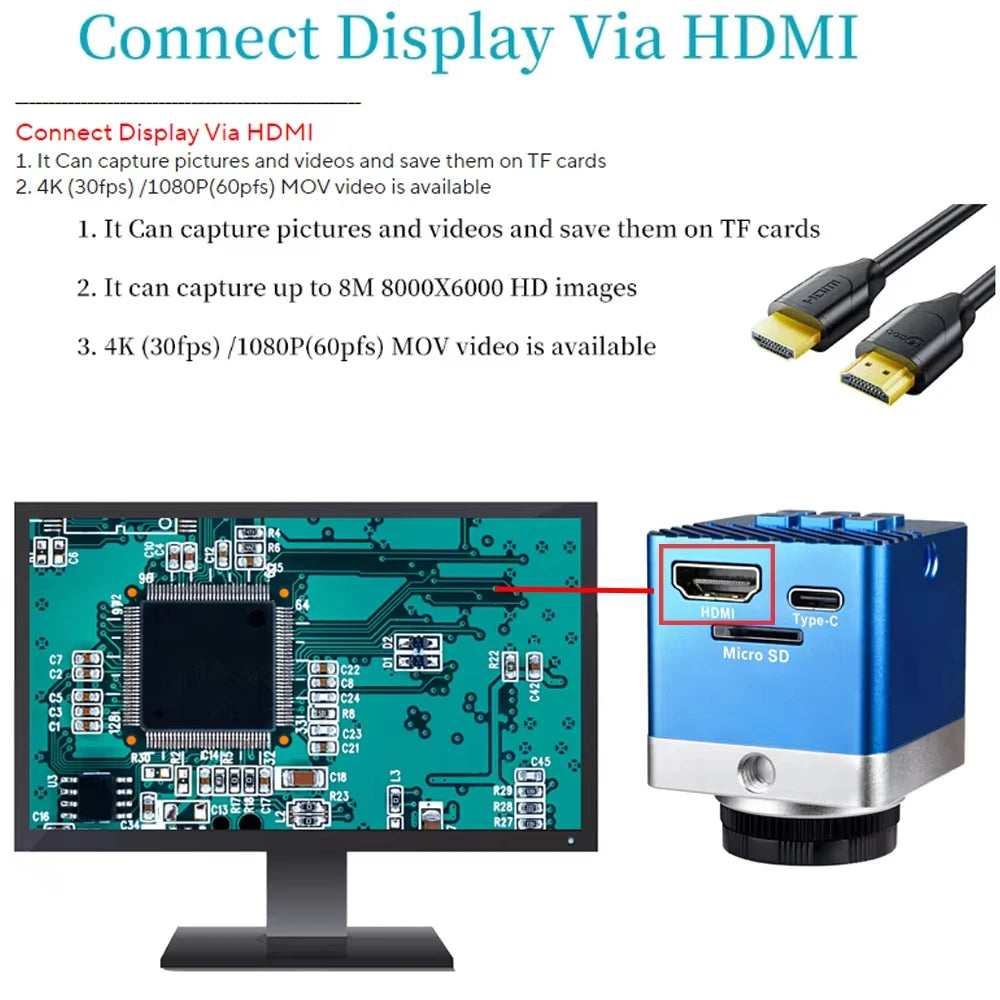

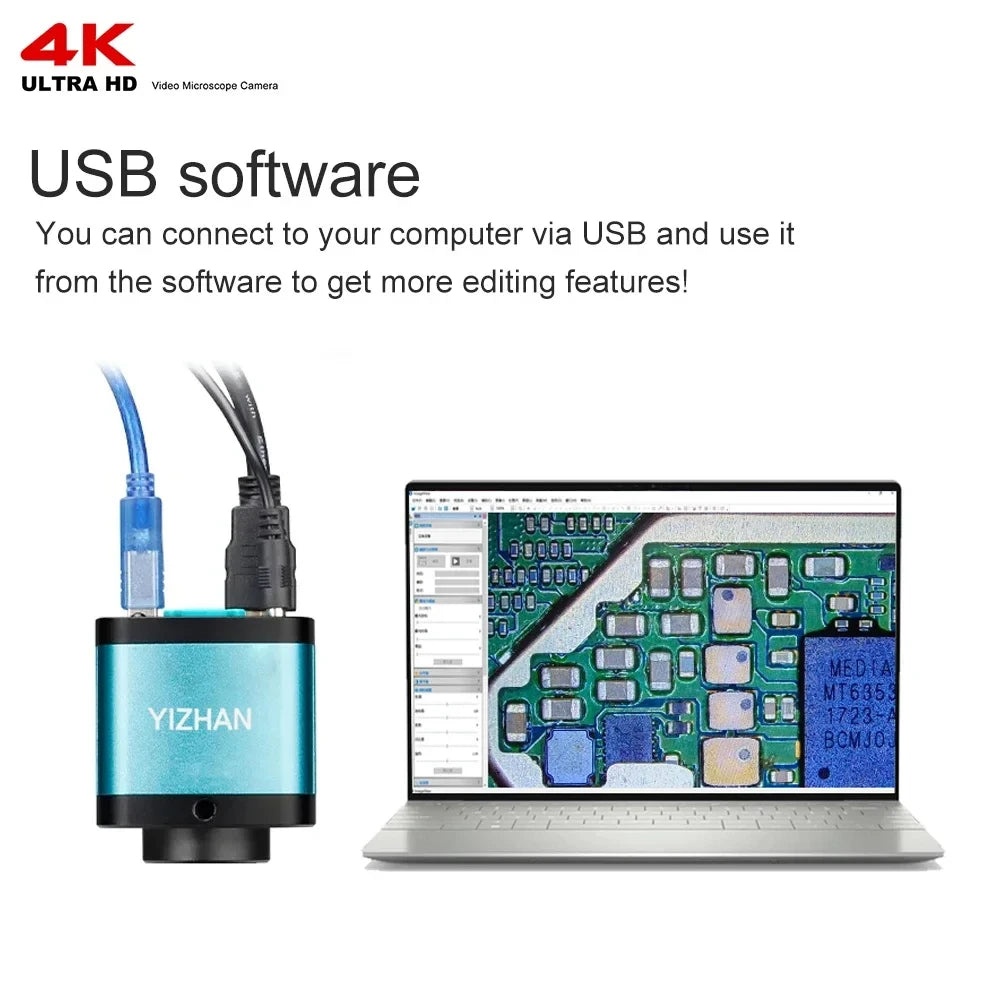

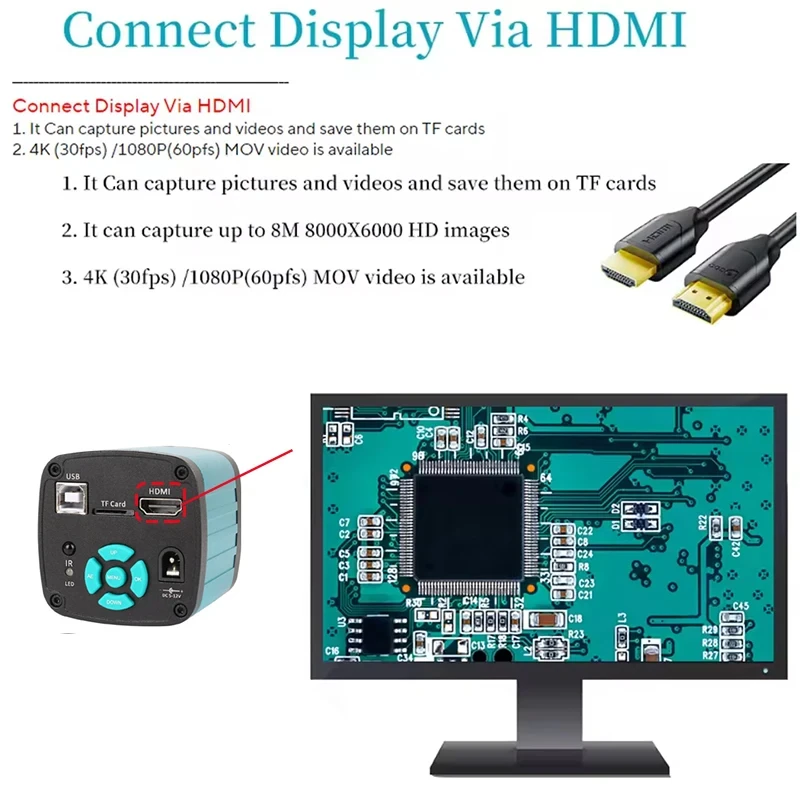

These microscopes can be connected to a display and have basic functions. However, the XVH2003 (1080P HDMI) camera cannot be connected to a computer, while other cameras can be connected to a computer and used with computer software for measurement, photography, and video recording.

Download links for computer software for the XHU4002 (48MP 4K HDMI USB) and XH3011 (UHD 4K HDMI USB) cameras: https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?pli=1

Download links for the XHU4012 (60MP 4K HDMI USB) camera software:
https://drive.google.com/file/d/19ZvEU5O9uayVsi1dgsJTA-08-XyHPPEW/view

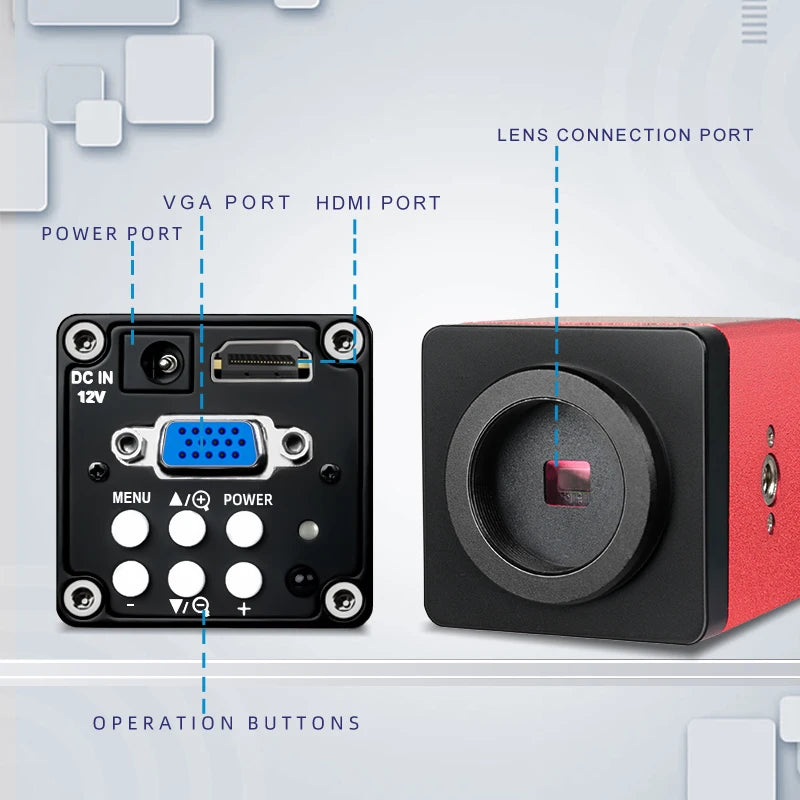

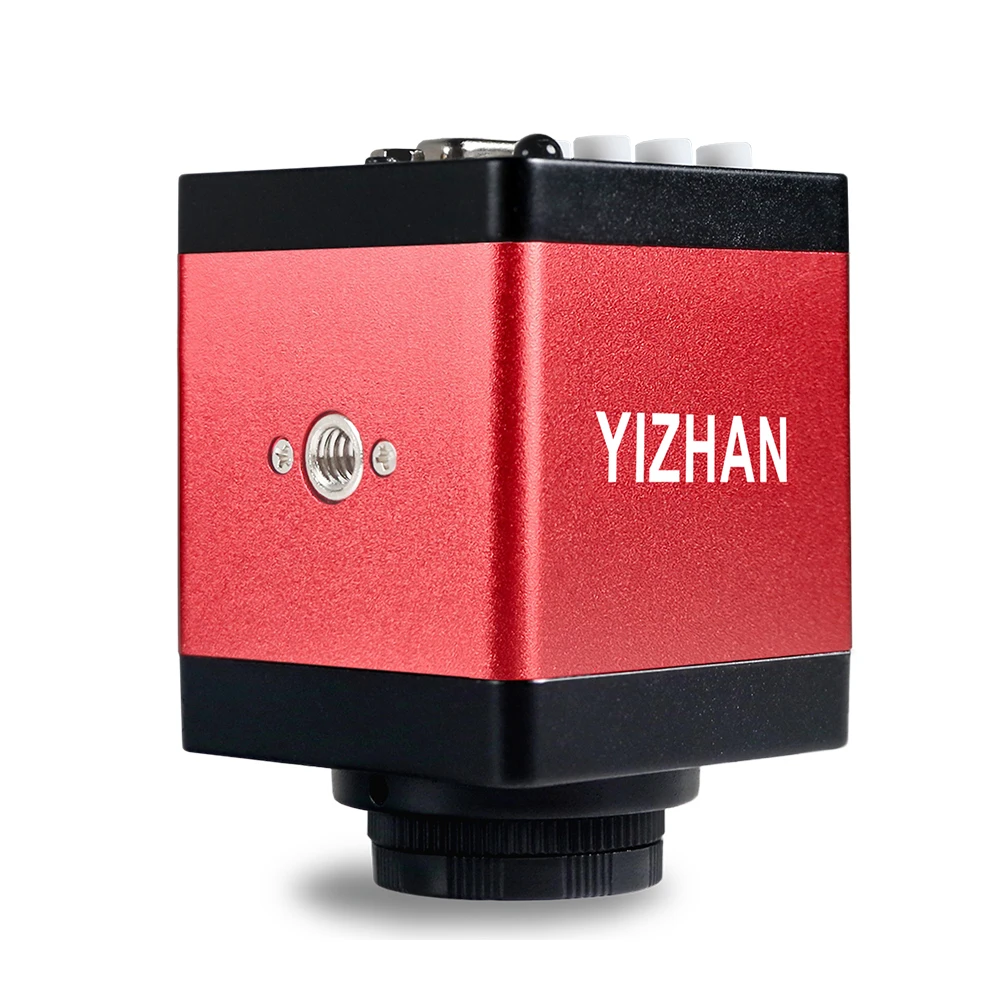

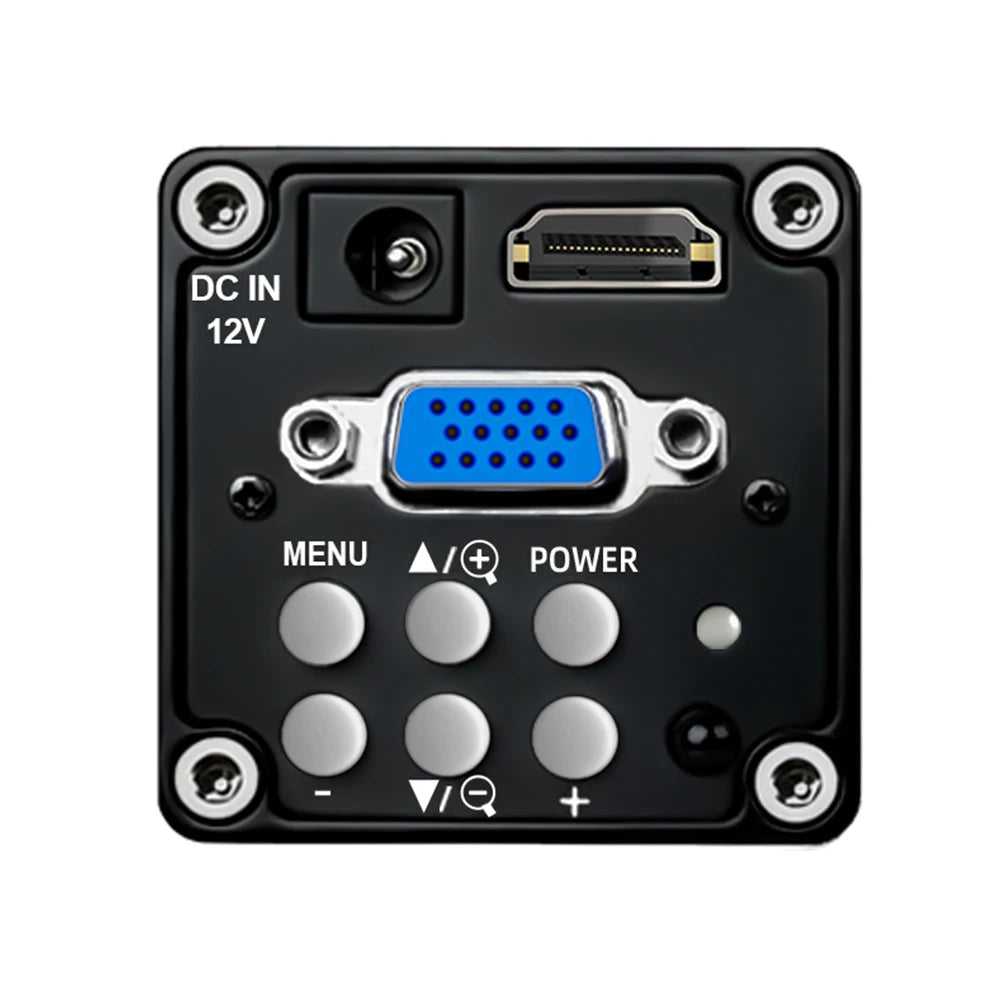

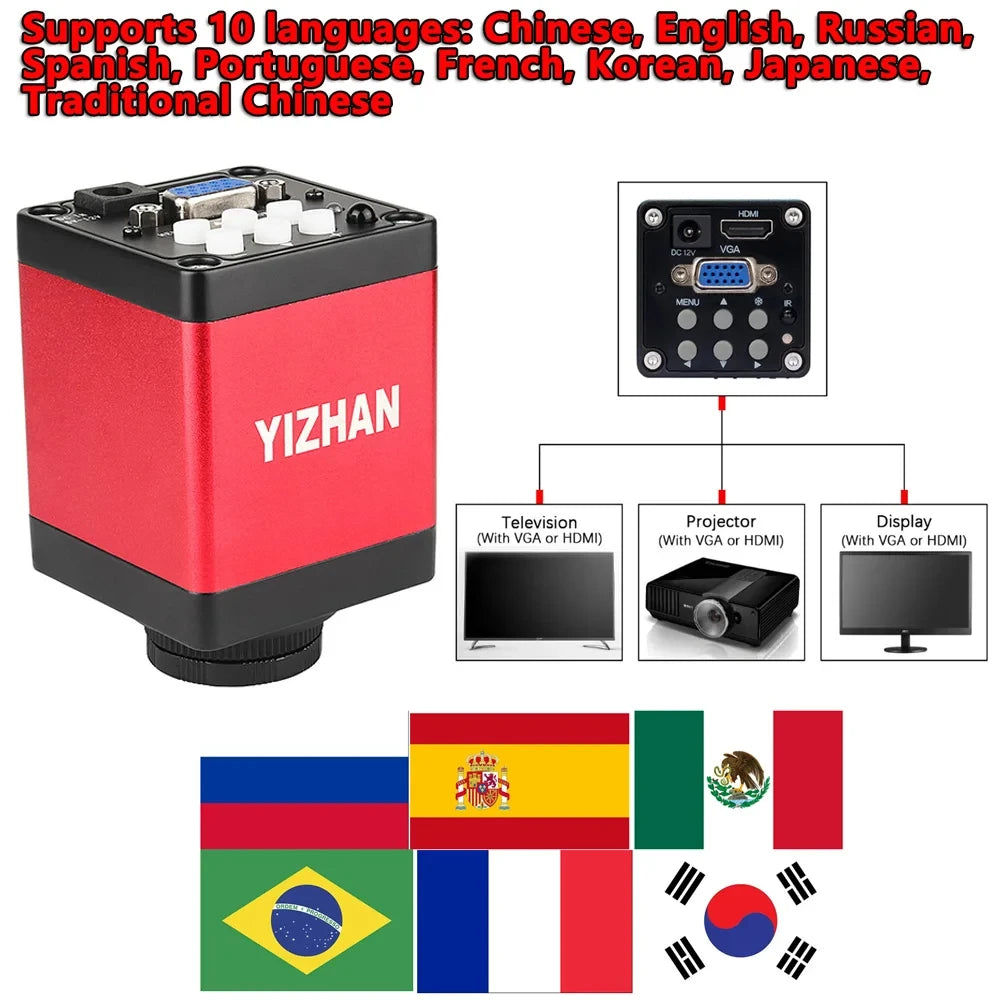

XVH2003 Camera Description:

◆Using 2 million pixel back-illuminated CMOS image sensor:
◆Using 1/2.9 inch image sensor;
◆HDMI/VGA 1080P 30 frames image output;
◆Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance/one-key white balance, red, green, blue adjustable;
◆Provide 8 line drawing functions, line color, thickness, position adjustable;
◆Provide center cross line display/off;
◆Support Chinese and English menu languages (default English); 10 languages
◆Support shutdown setting parameter saving;

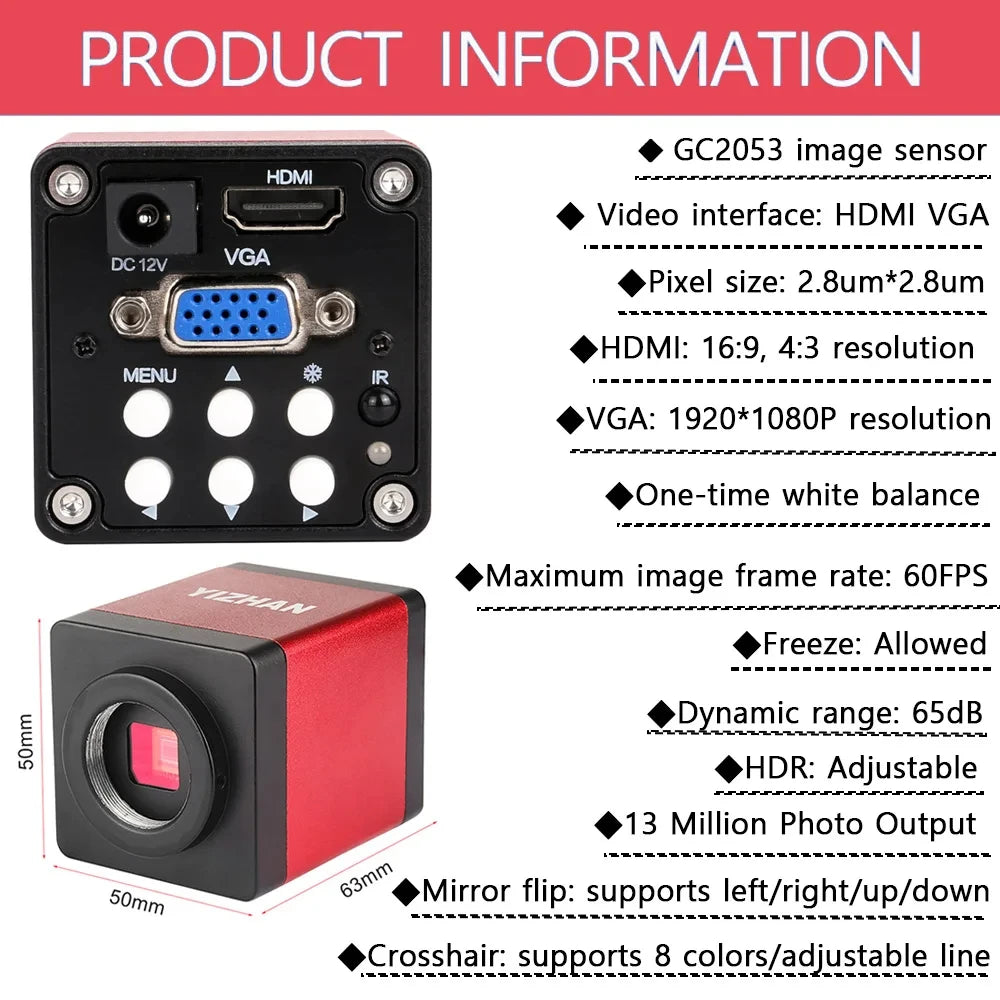

Specifications:
Sensor: GC2053
Dimensions: 75*50*50mm
Video interface: HDMI VGA
Lens: CS
Operating voltage: 12V
Operating current: 150mA
Optical format: 1/2.9''
Pixel size: 2.8µm*2.8µm
TV lines: 1200TV lines
Maximum image frame rate: 60FPS
Scanning mode: progressive scan
Shutter mode: electronic shutter
Dynamic range: 65dB
Radio signal-to-noise ratio: 45dB
OSD language: English/Chinese
AWB mode: one-time white balance/manual/auto
HDR: adjustable
Crosshair: supports 8 colors/line width adjustable
Black and white: allowed
Negation: allowed
Mirror flip: supports left/right/up/down
Freeze: allowed
Compare: allowed
Manually set brightness, contrast, sharpness, saturation: allowed
Output display resolution: HDMI: 16:9, 4:3 VGA: 1920*1080P or above

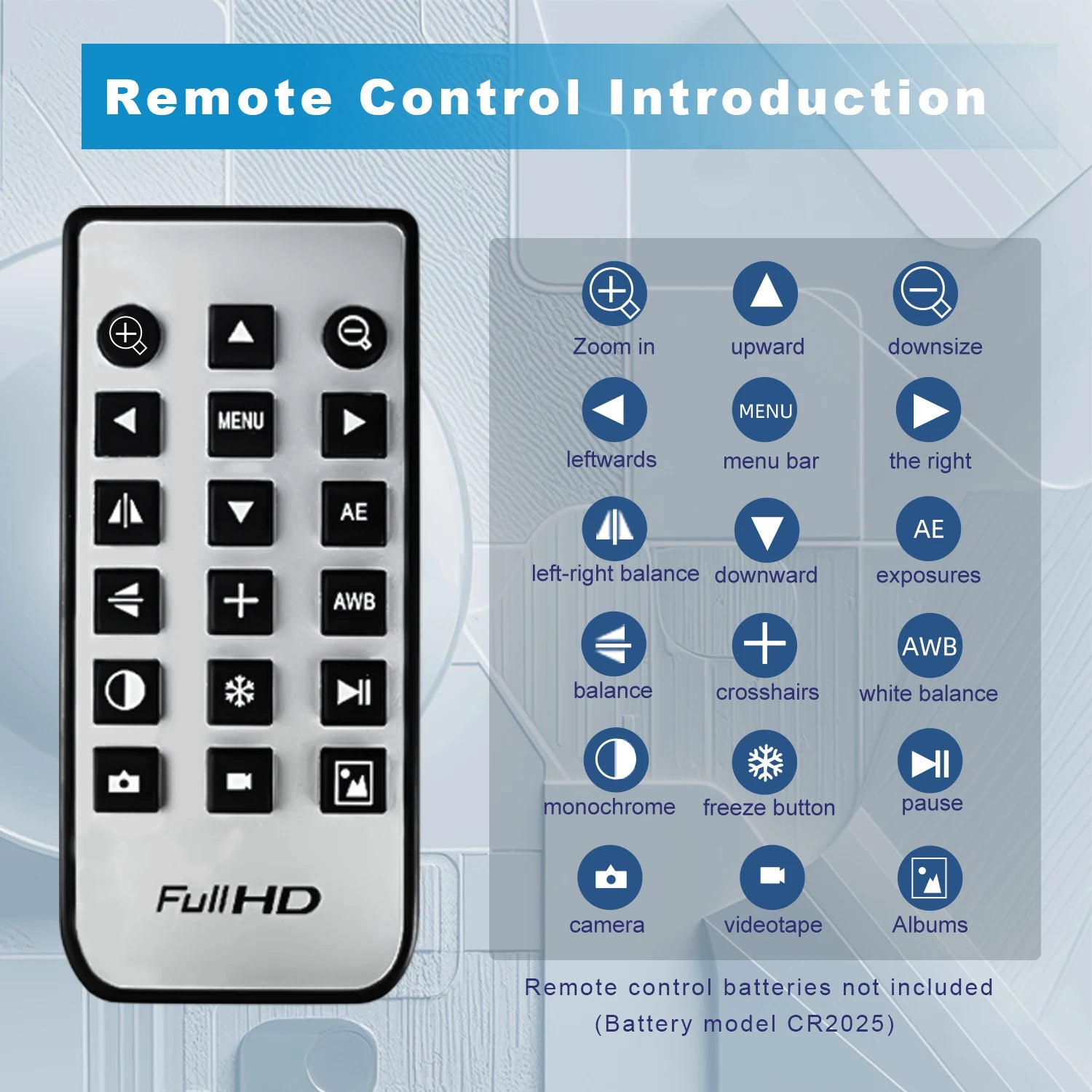

Remote control: Yes
Features: Remote control function

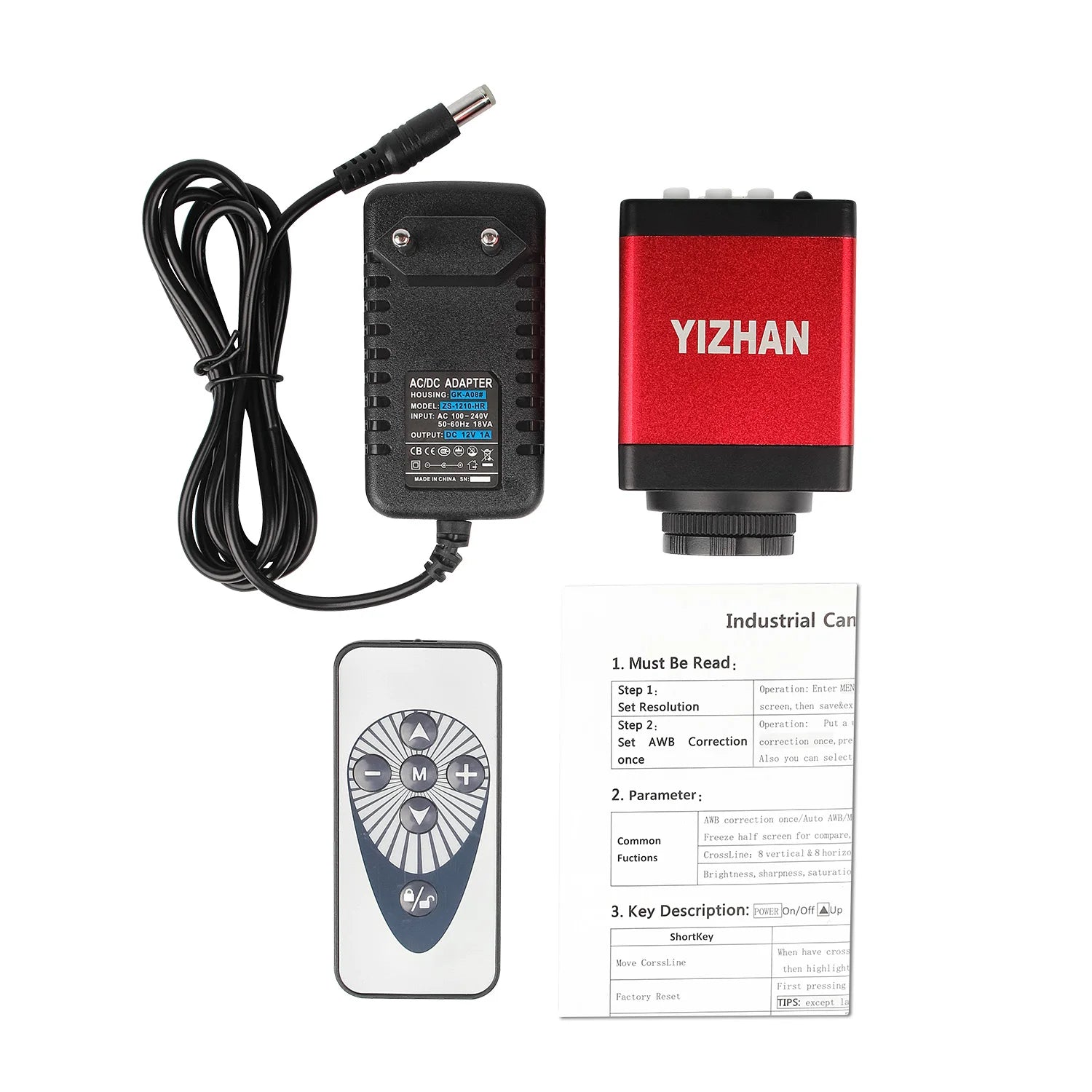

Package includes:
1*XVH2003 microscope camera
1*power cord
1*remote control
1*instruction manual

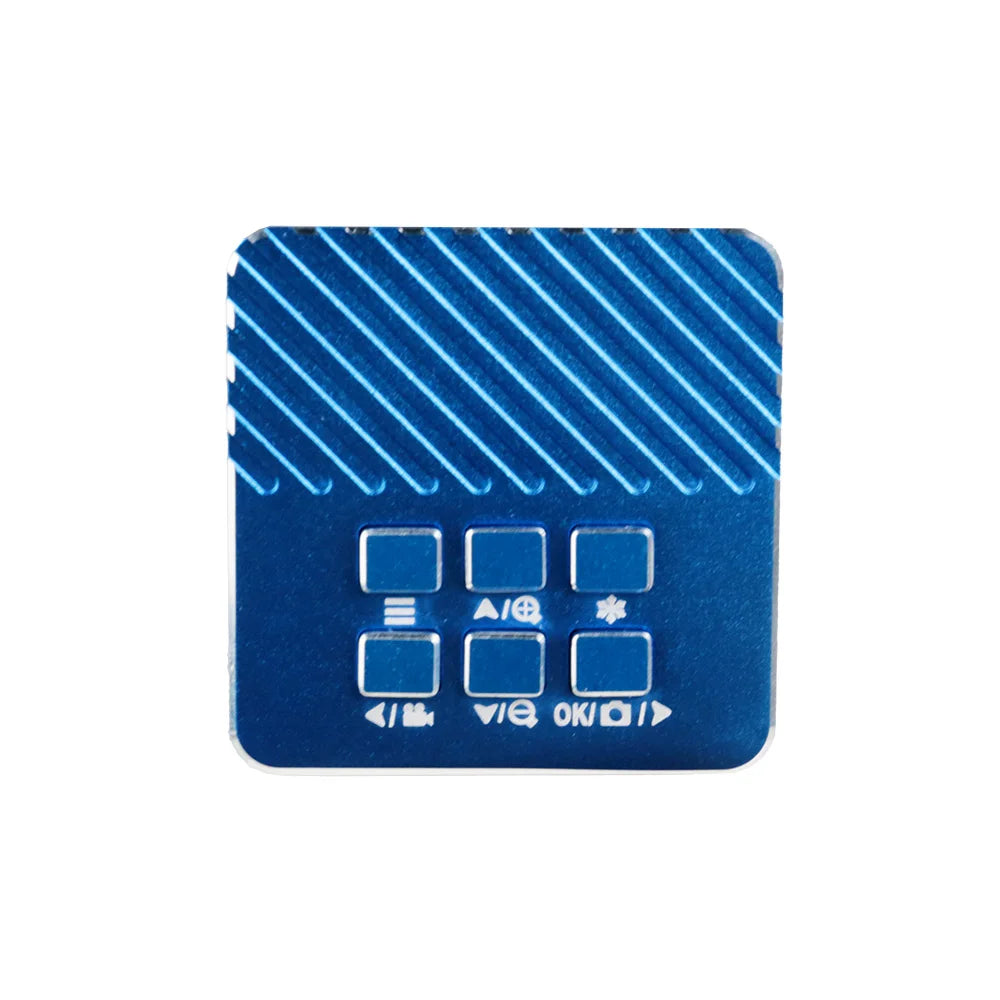

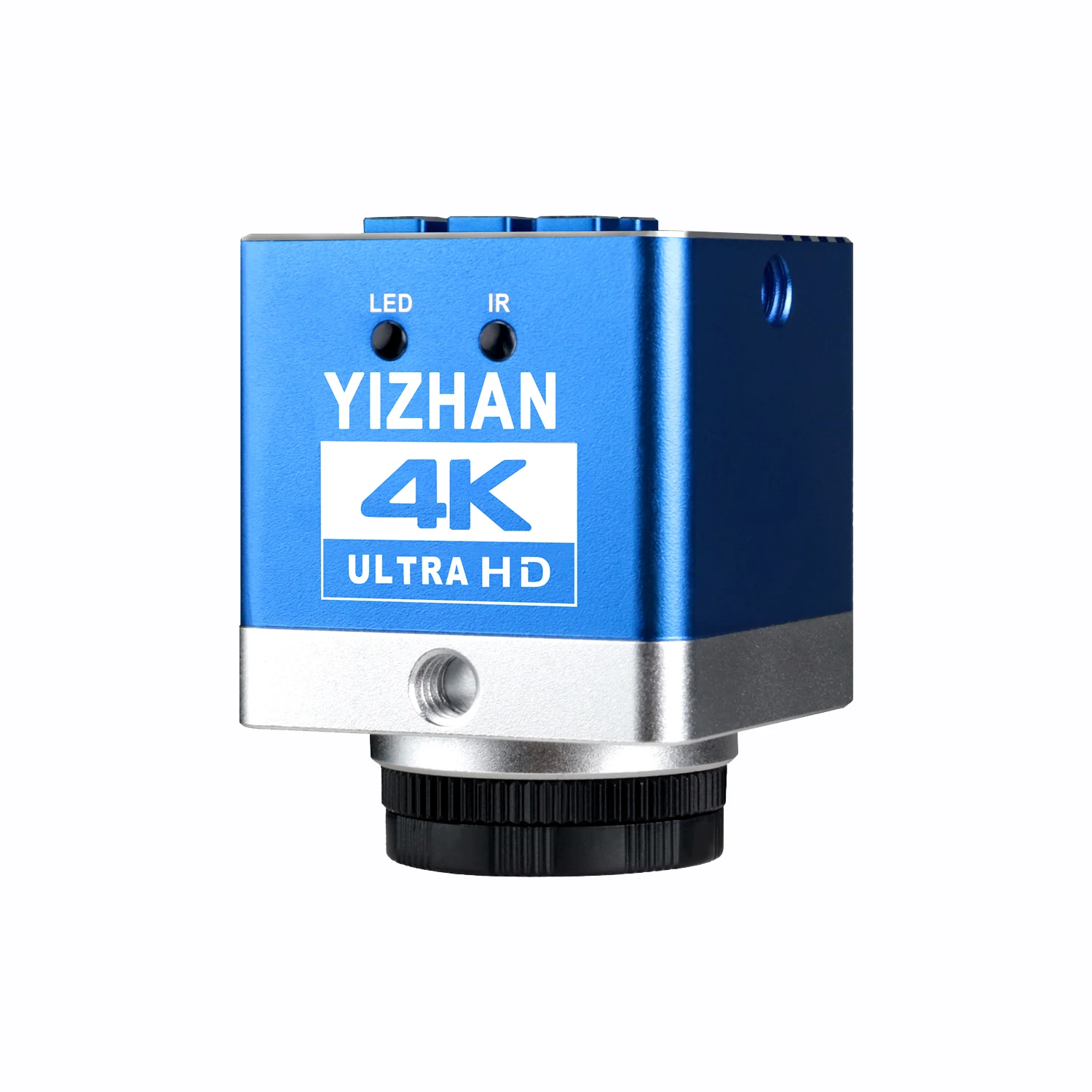

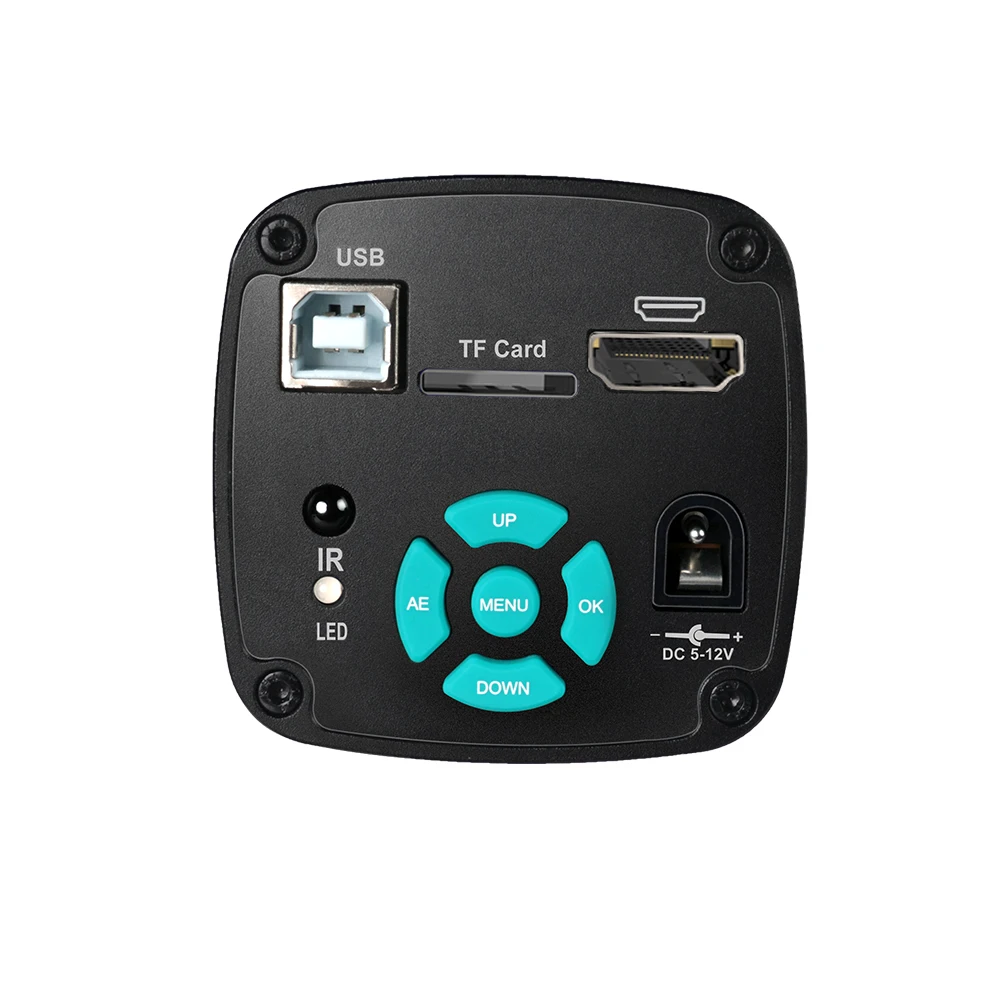

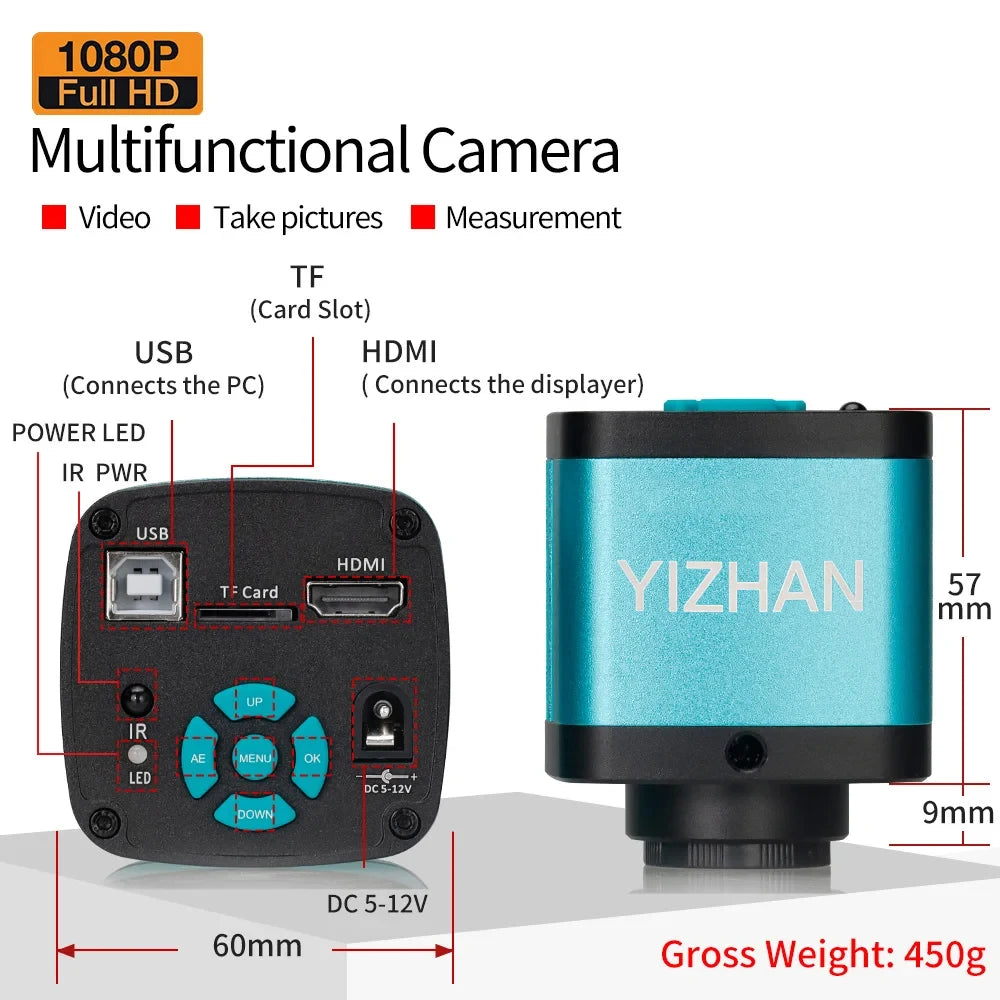

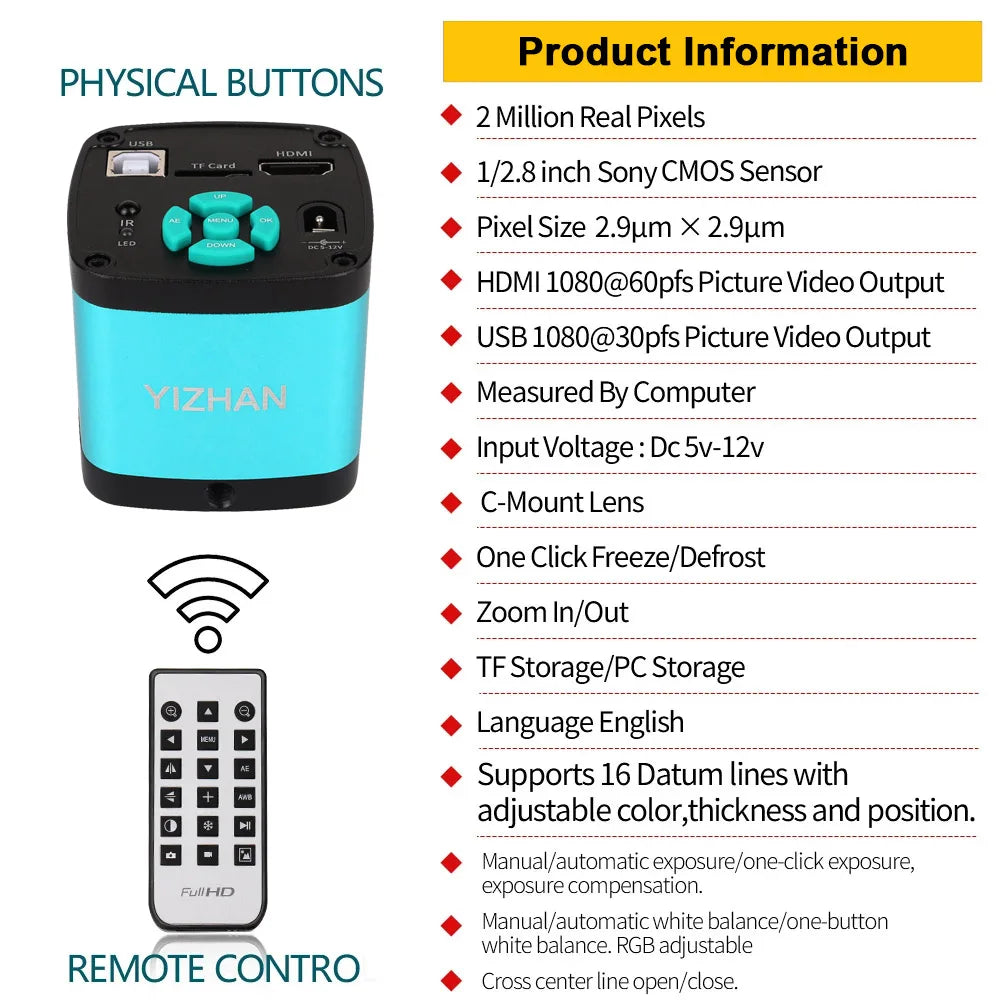

XHU4002 Camera Description:

◆Adopt 2 million pixel imported Sony CMOS image sensor;
◆Adopt 1/2.8 inch image sensor, the viewing angle is wider than 1/3 inch;
◆HDMI 1080P 60 frame image output;
◆USB2.0 driver-free output 1080P 30 frames of image output;
◆4K video recording;
◆Maximum 4800MP photo taking, JPG format, photo size 4608x3456;
◆One-button freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 8-line drawing function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking when taking photos, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Sturdy metal shell;

Specifications:
Sensor: 1/2.8-inch imported Sony CMOS image sensor
Size: 2.9µm × 2.9µm
HDMI output: 1920*1080 60FPS
USB Output: 1920*1080/30, 1280*720/30, 640*480/30, 320*240/30 (MJPG)
Camera interface: C/CS
Exposure: Auto/Manual
Exposure compensation: Support
White balance: Auto/Manual, RGB adjustable
Storage: Maximum support 64GB
Input voltage: DC 5V-12V
Line: Support 8 straight lines with adjustable color, thickness and position
Center line: Support
Menu language: English/Chinese
Remote control: Support remote control operation
Model: XHU4002
Color: Blue
Net weight: 250g
Gross weight: 450g
Product size: 60*60*70mm
Packaging size: 145*130*70mm
Output interface: HDMI USB
Resolution: 1920*1080P
Remote control: Yes

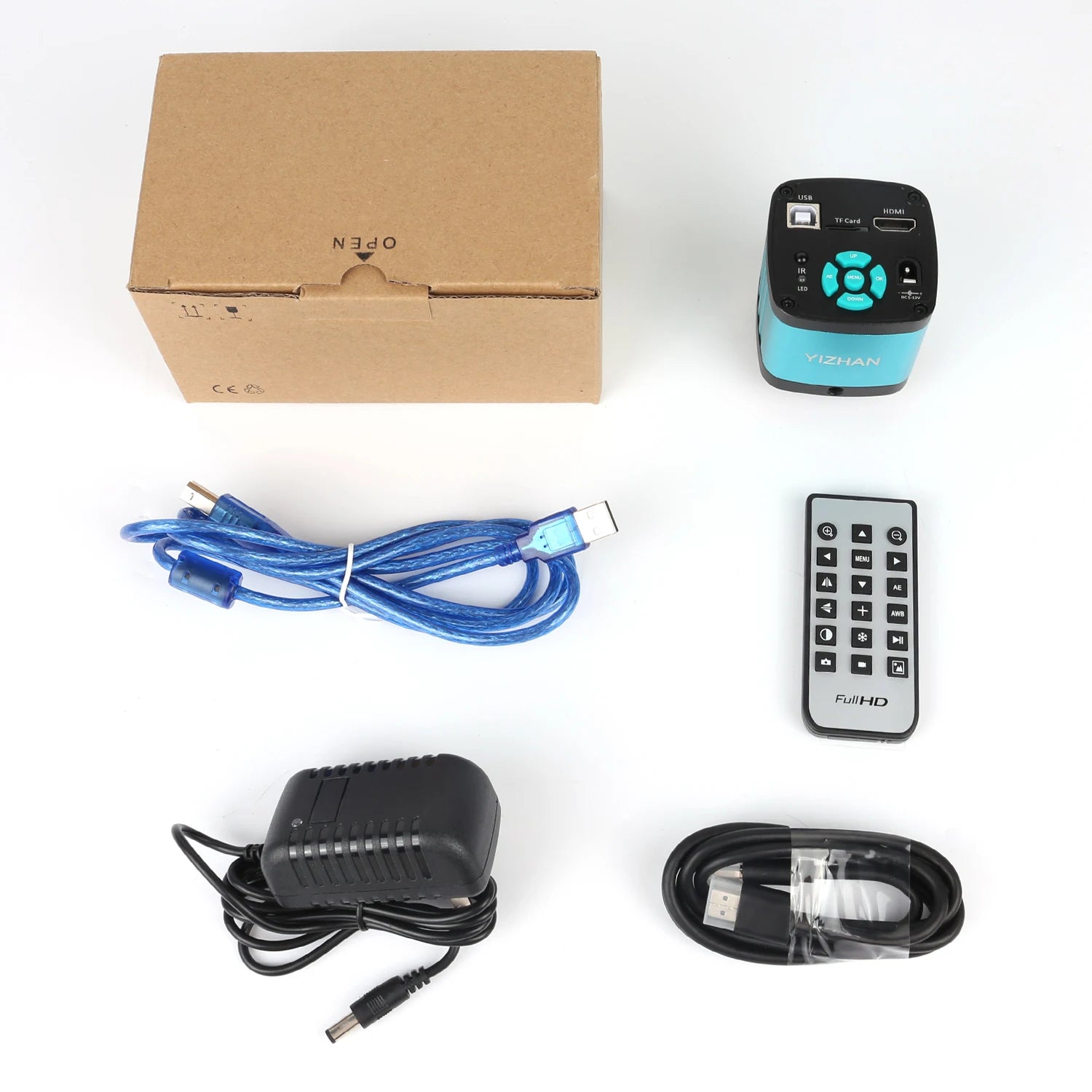

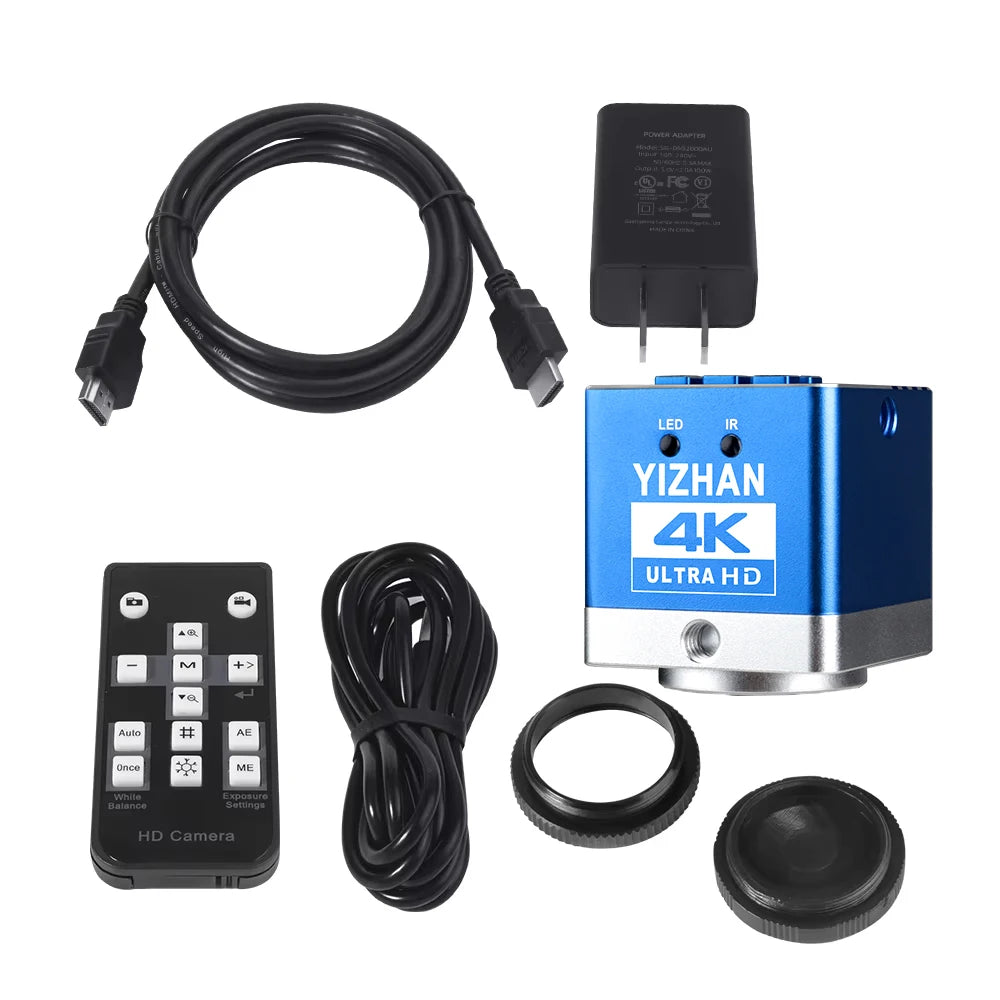

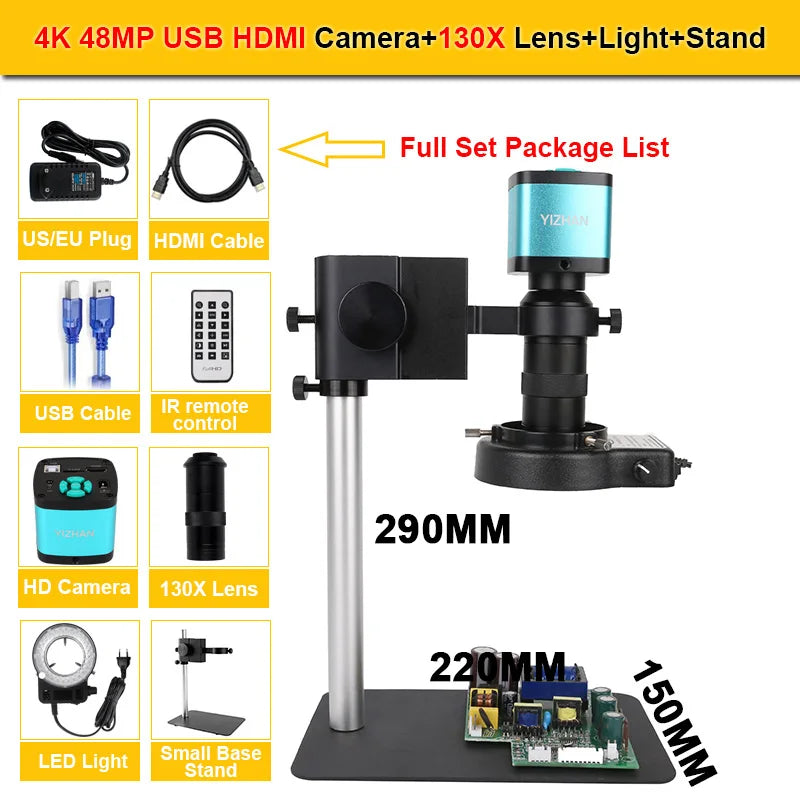

Package includes:
1*XHU4002 microscope camera
1*Adapter
1*HDMI cable
1*USB communication interface cable
1*Remote control
1*Instruction manual

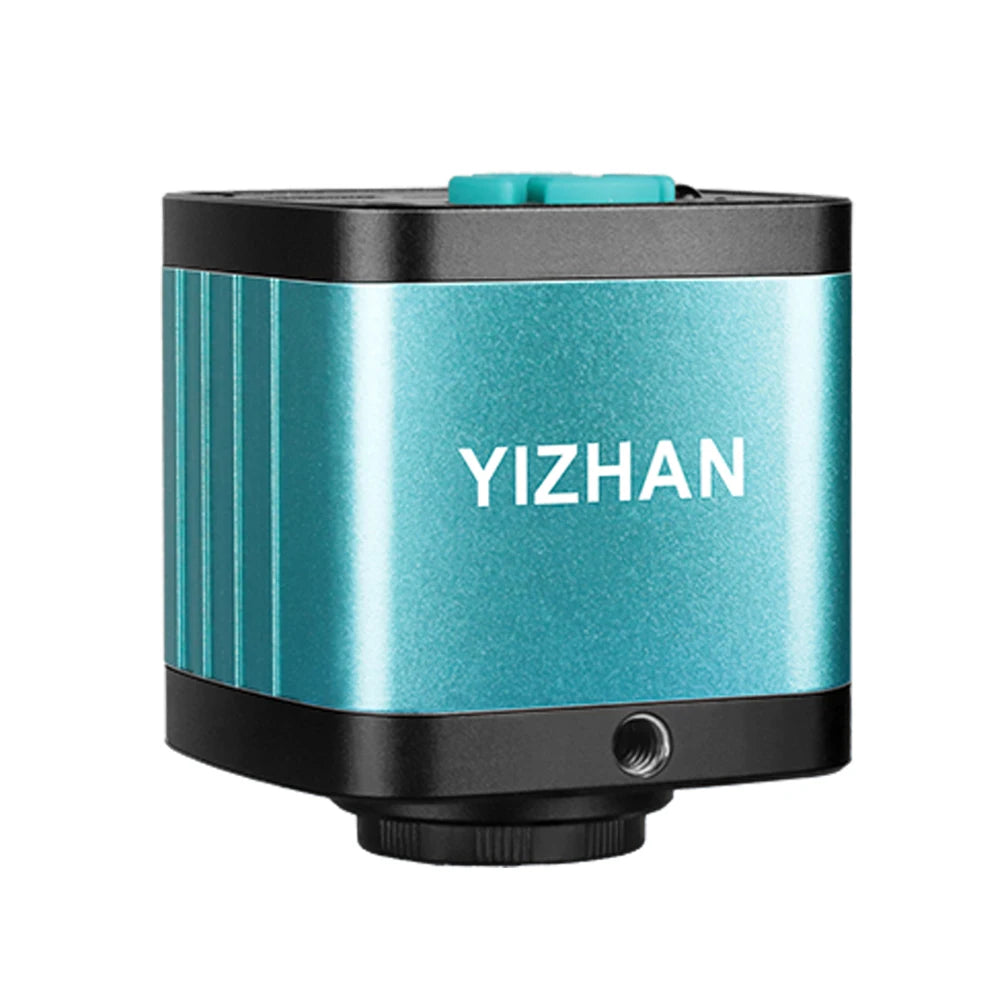

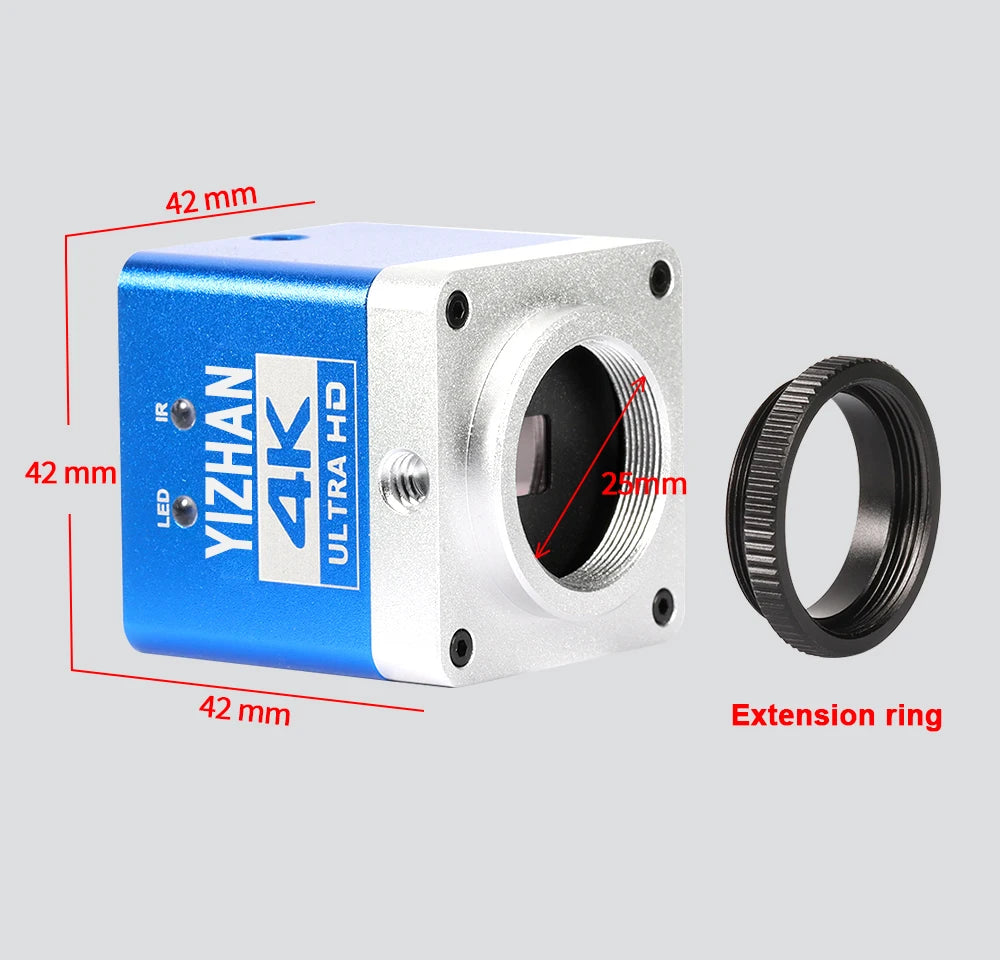

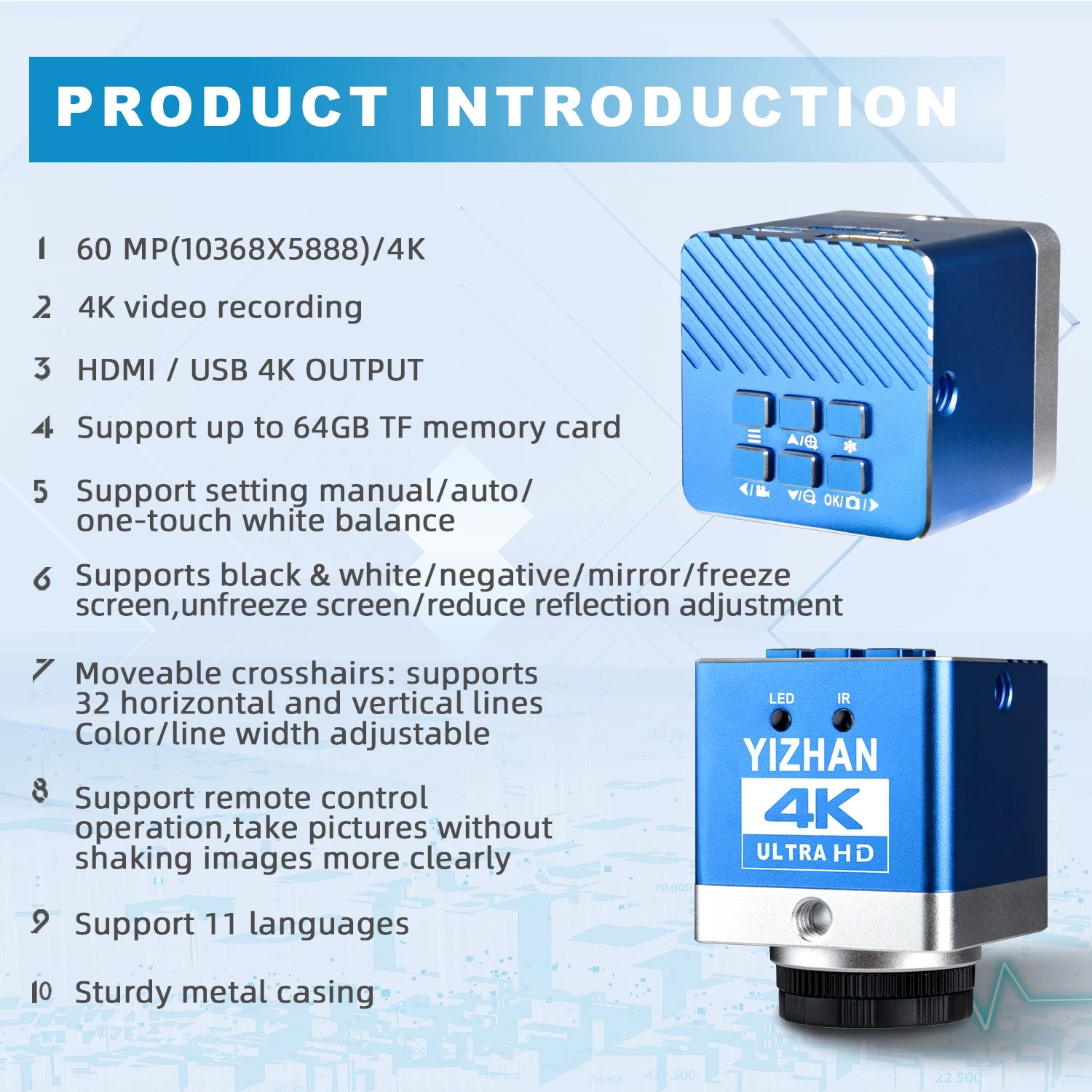

XHU4012 Camera Description:

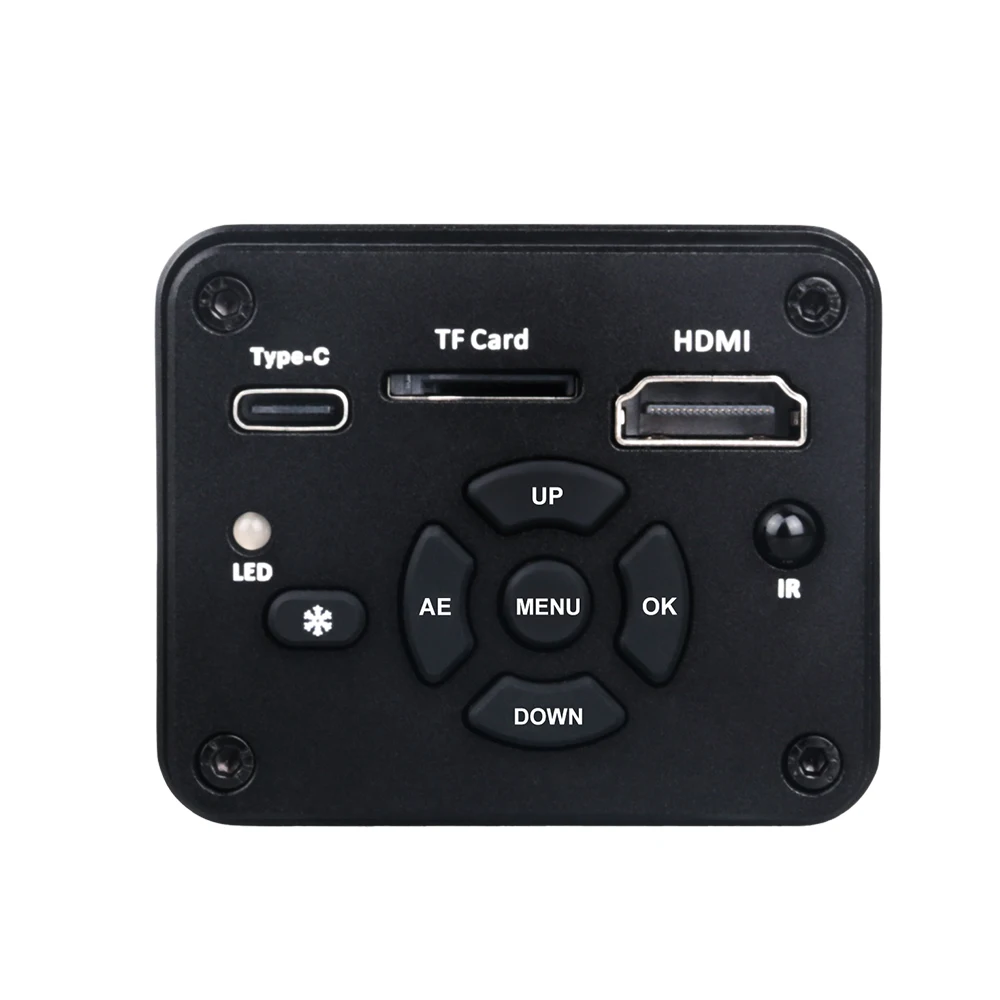

Interfaces: HDMI + Type-C
Dimensions: 42*42*46mm
Sensor Size: 1/2.7"
Power Supply: 12V/USB
HDMI Output Resolution: 4K @30FPS / 1080P @60FPS
USB-PC Output Resolution: 4K @30FPS / 1080p@30FPS
Photo Resolution: 60MP (10368*5888)
Video Resolution: 4K @30FPS / 1080P @30FPS
Menu Language: 11 languages
Modable Crosshairs: Supports 32 horizontal and vertical lines; color/line width adjustable
Lens Interface: CS
Operating Current: 190mA
Effective Pixels: 4K (3840*2160)
Scanning Method: Progressive Shutter Type: Electronic Shutter
Dynamic Range: 69dB
Signal-to-Noise Ratio: 40dB
White Balance Mode: Single White Balance/Manual/Auto
Reduced Reflection Adjustment: Adjustable
Black & White: Allowed
Negative: Allowed
Mirroring: Allowed
Freeze/Thaw: Allowed
Adjustable Image Brightness/Contrast/Sharpness/Saturation: Allowed

Package Includes:
1*XHU4012
1*HDMI Cable
1*Type-C Cable
1*EU/US Plug
1*Remote Control
1*Instruction Manual

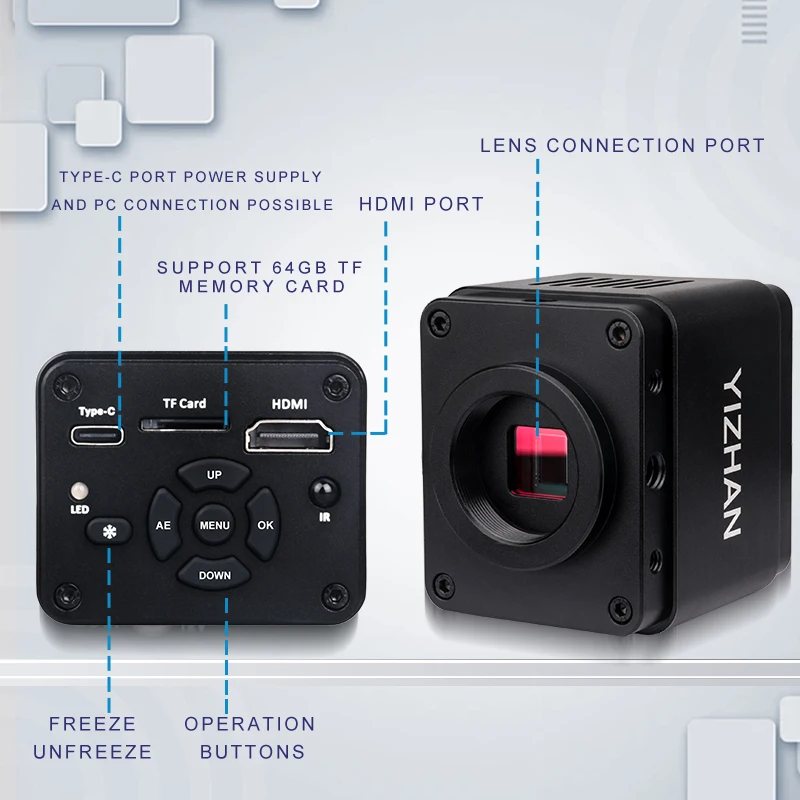

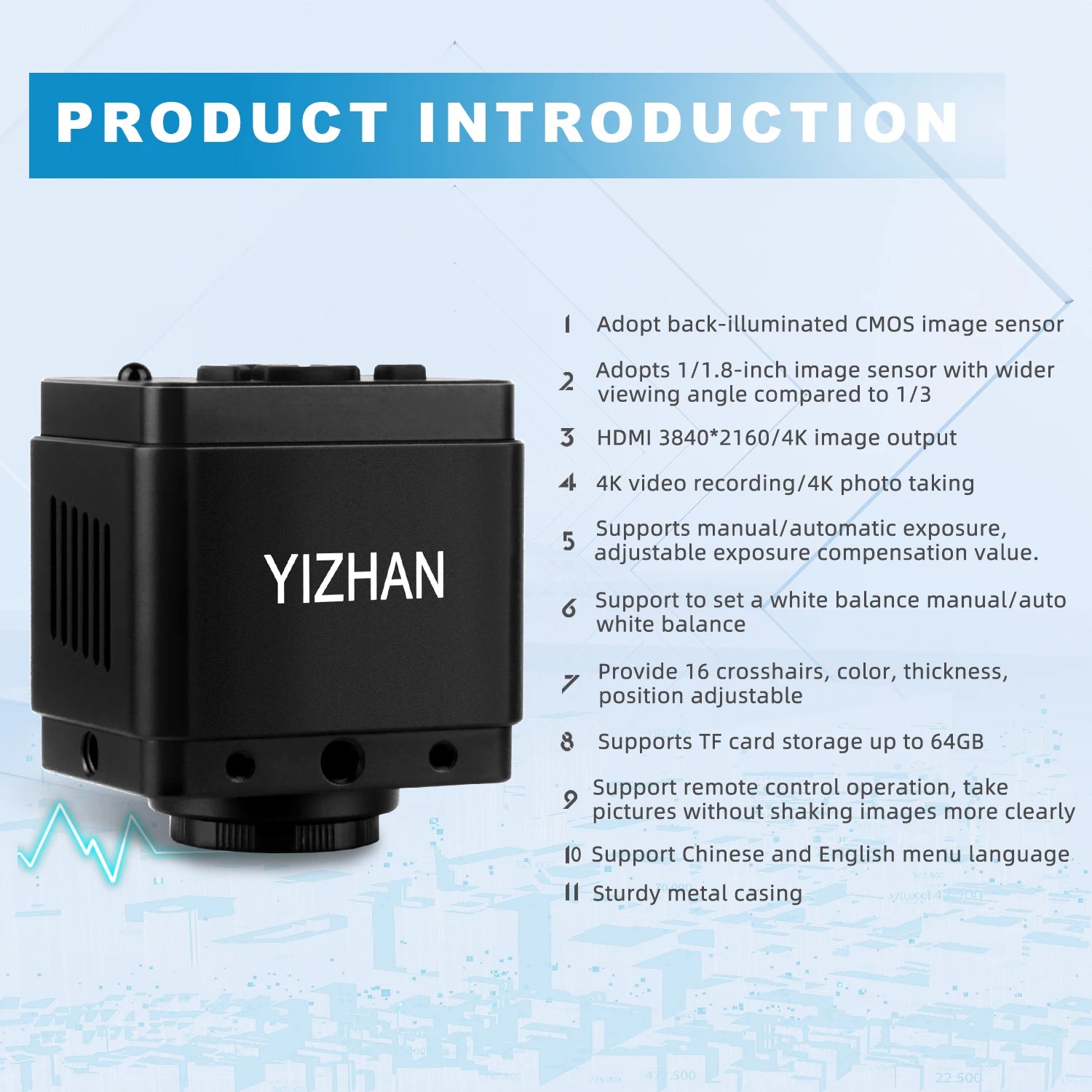

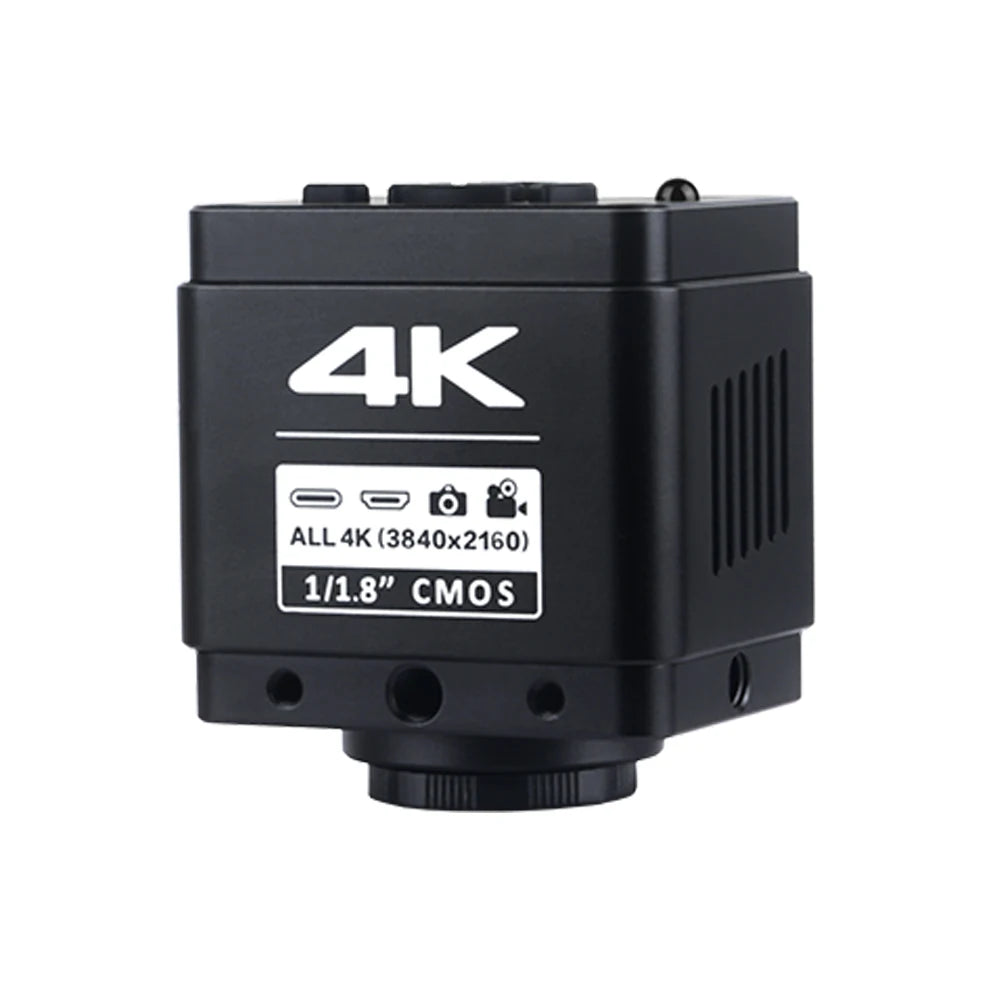

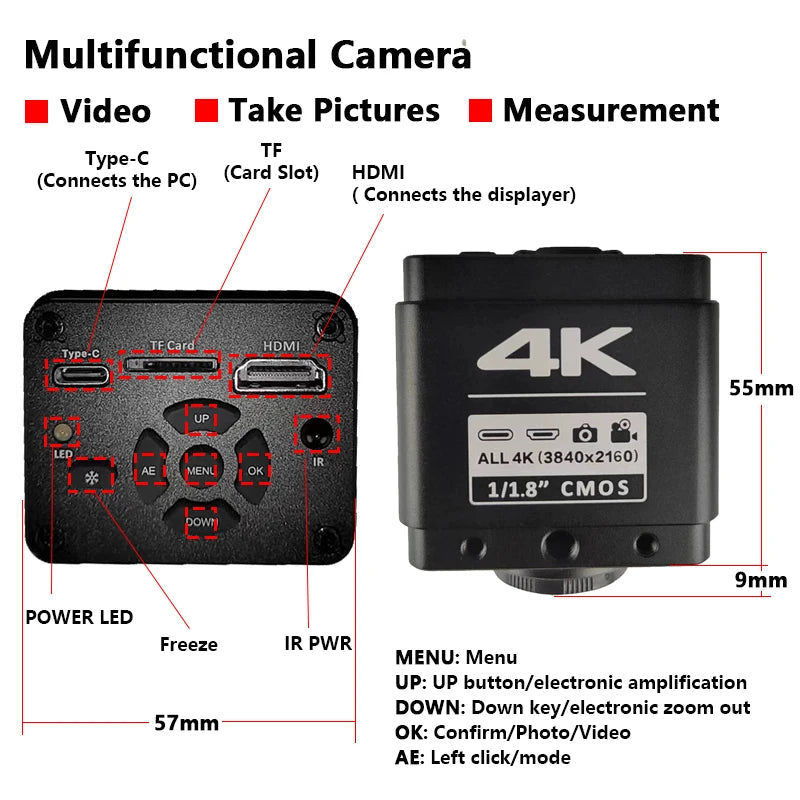

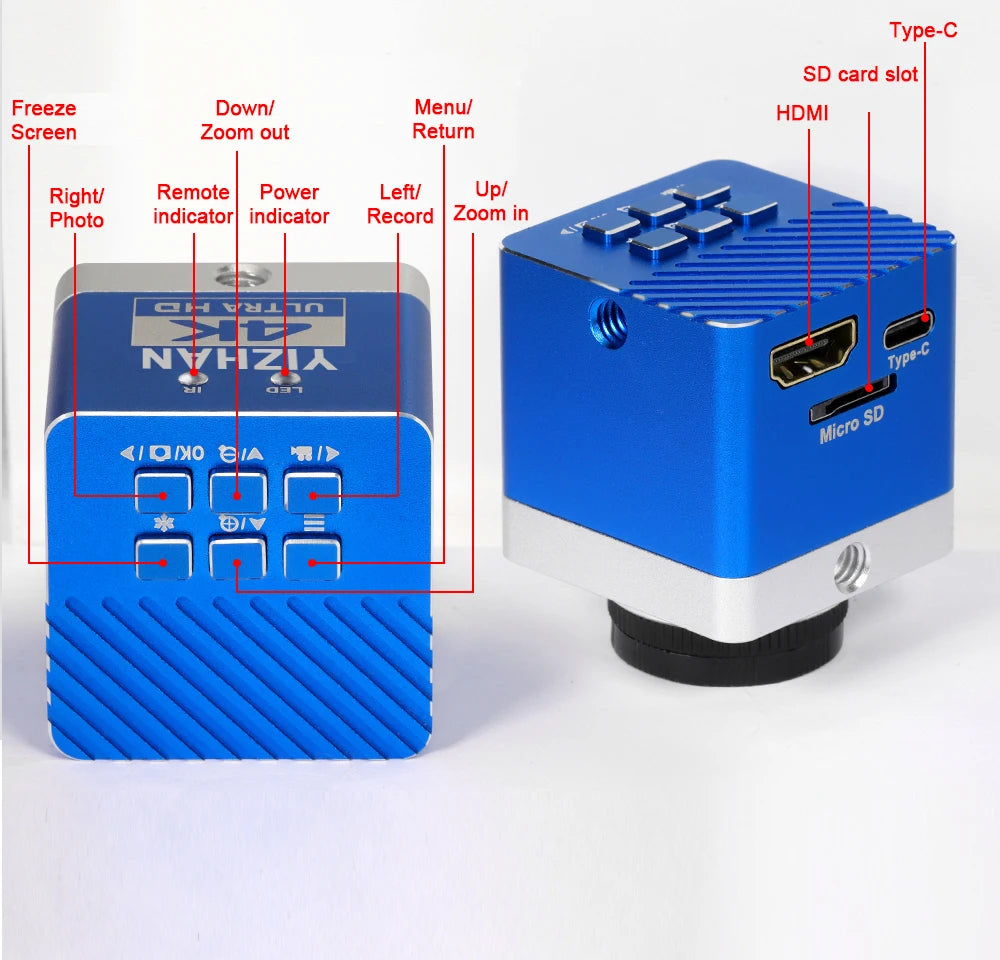

XH3011 Camera Description:

◆Using 8.29 million pixel Sony CMOS image sensor;
◆Using 1/1.8 inch image sensor;
◆HDMI 3840*2160 30 frames/1080P 60 frames image output;
◆USB2.0 driver-free output 3840*2160 30 frames of image output;
◆4K video recording;
◆4K photo taking
◆One-button freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 16-line drawing function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;

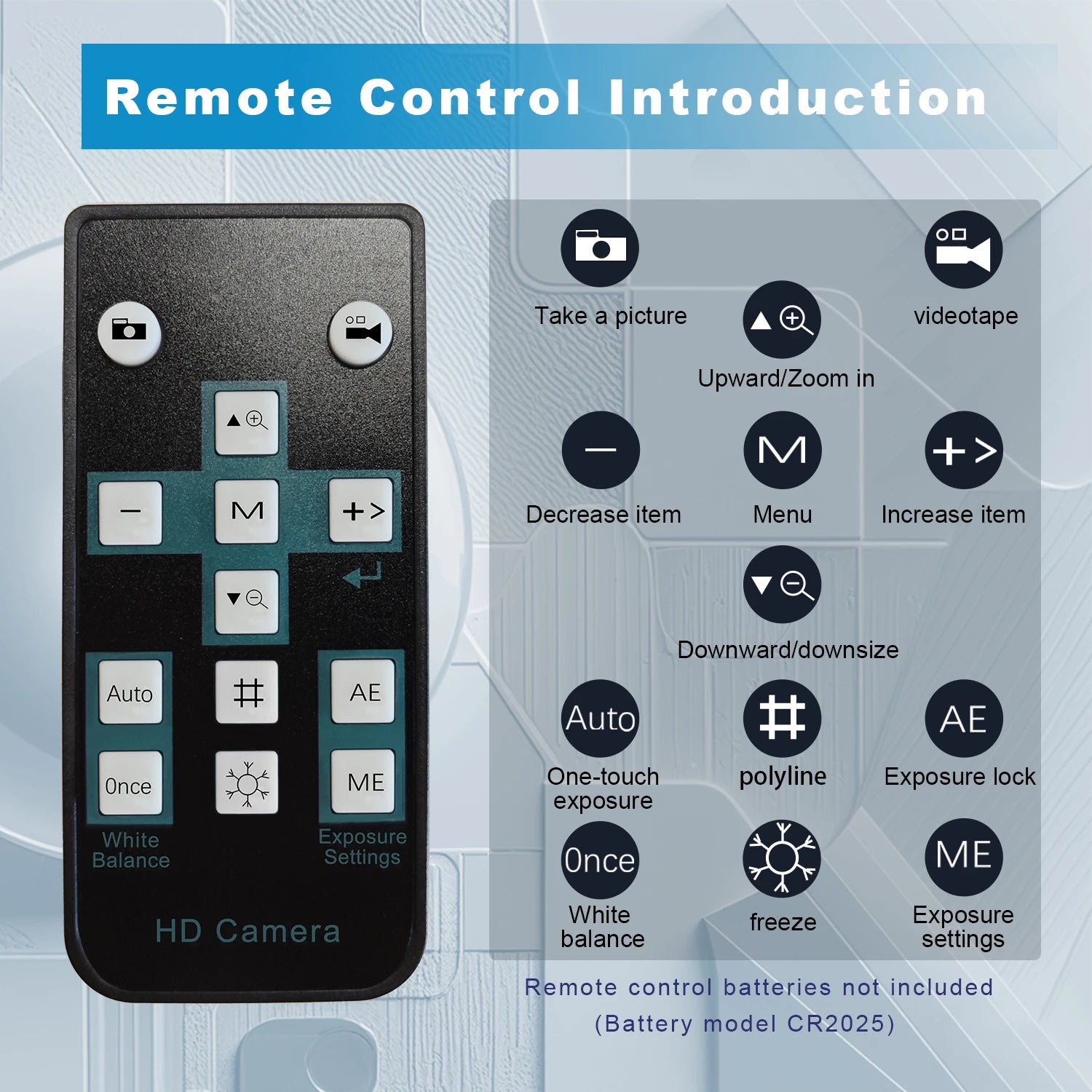

◆Support remote control operation, no shaking when taking pictures, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Sturdy metal shell;

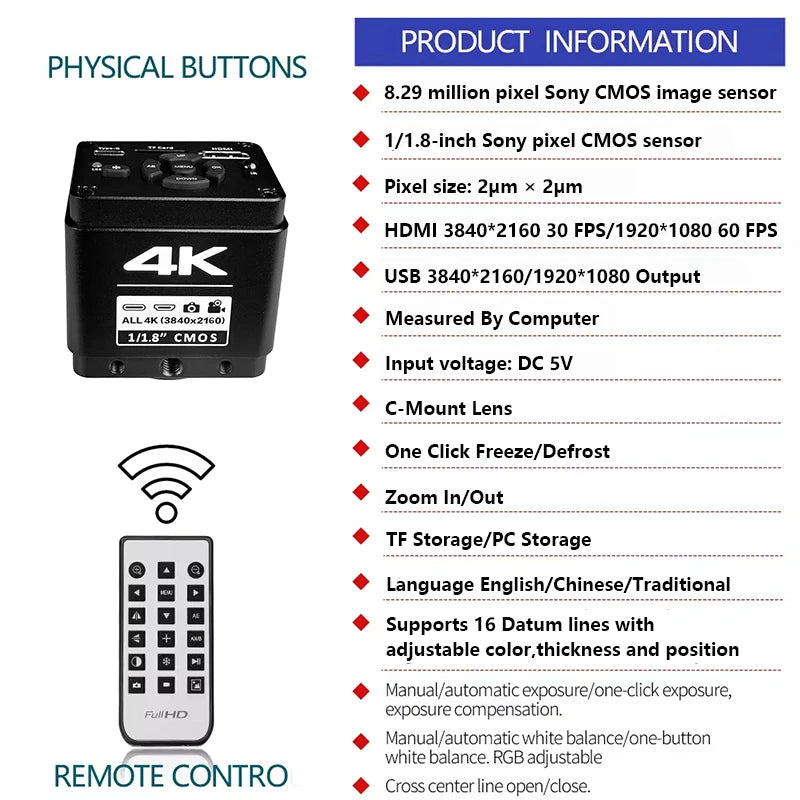

Specifications:
Sensor: 1/1.8-inch Sony 8.29 million pixel CMOS sensor
Pixel size: 2µm × 2µm
HDMI output: 3840*2160 30 frames/1920*1080 60 frames
USB output: 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
Lens interface: C/CS
Exposure: automatic/manual
Exposure compensation: support
White balance: automatic/manual, support R, G, B adjustable
Storage: maximum support 64GB
Input voltage: DC 5V
Line drawing: support 16 straight lines, color, thickness and position adjustable
Center line: support
Menu language: English/Chinese/Traditional
Remote control: support
Packaging size: 145*130*70mm

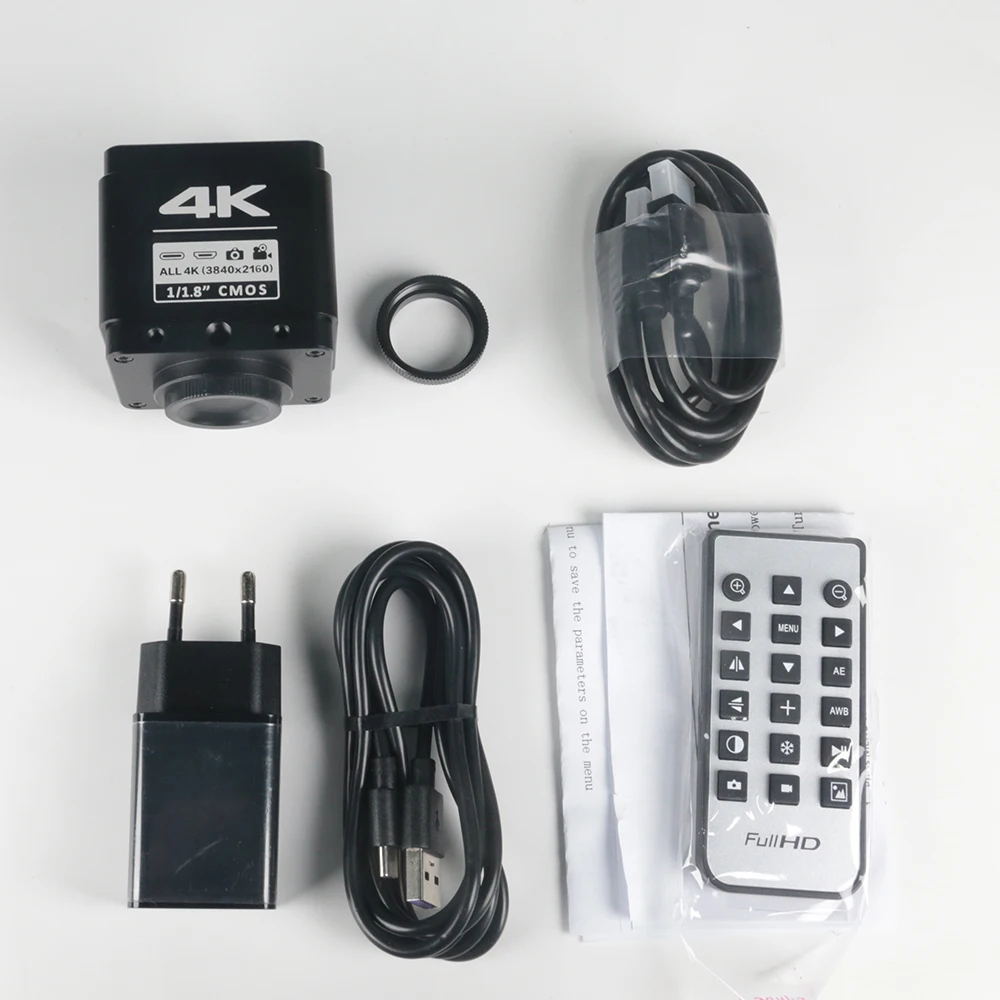

Package includes:
1*XH3011 camera
1*US/EU plug
1*HDMI cable
1*Type-C cable
1*remote control

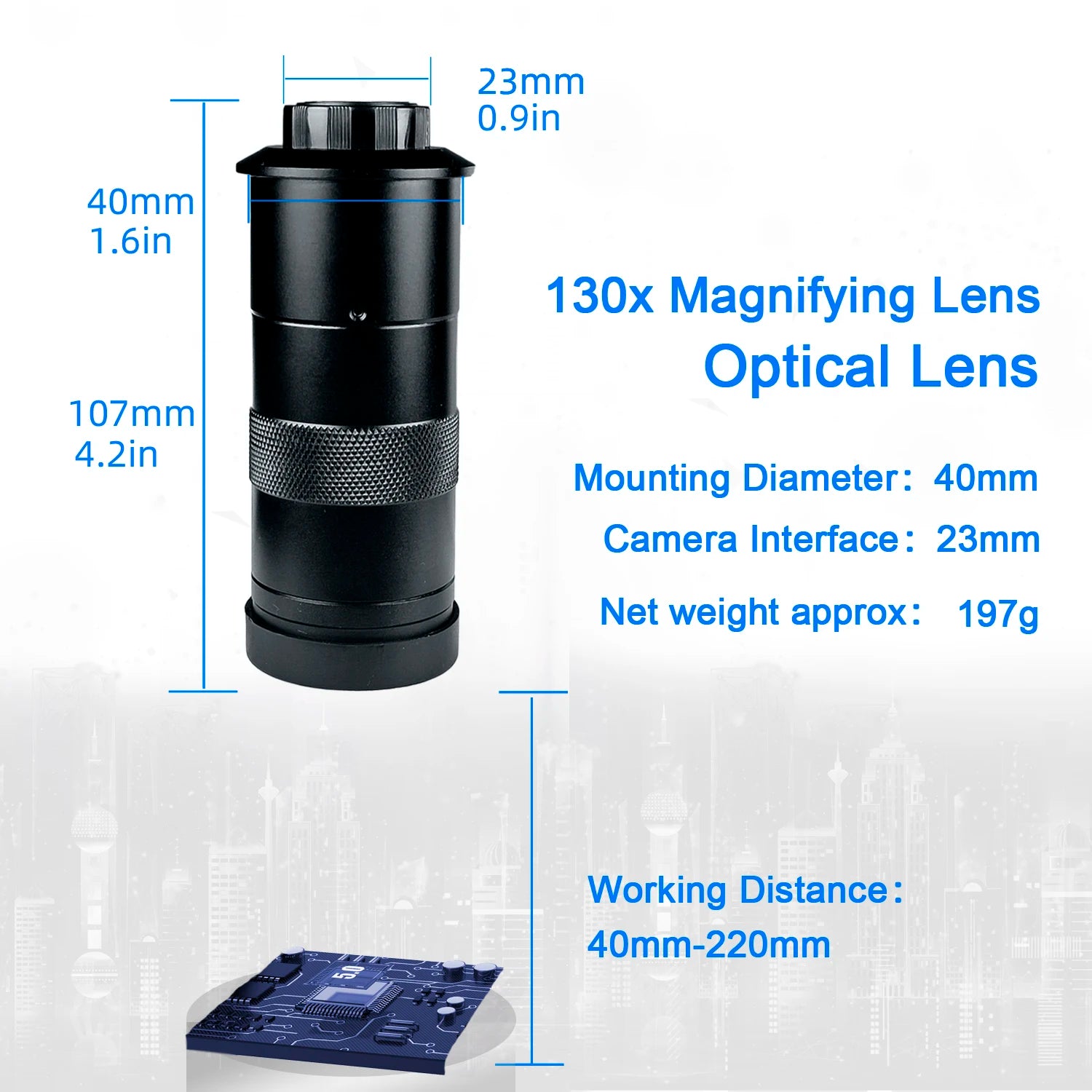

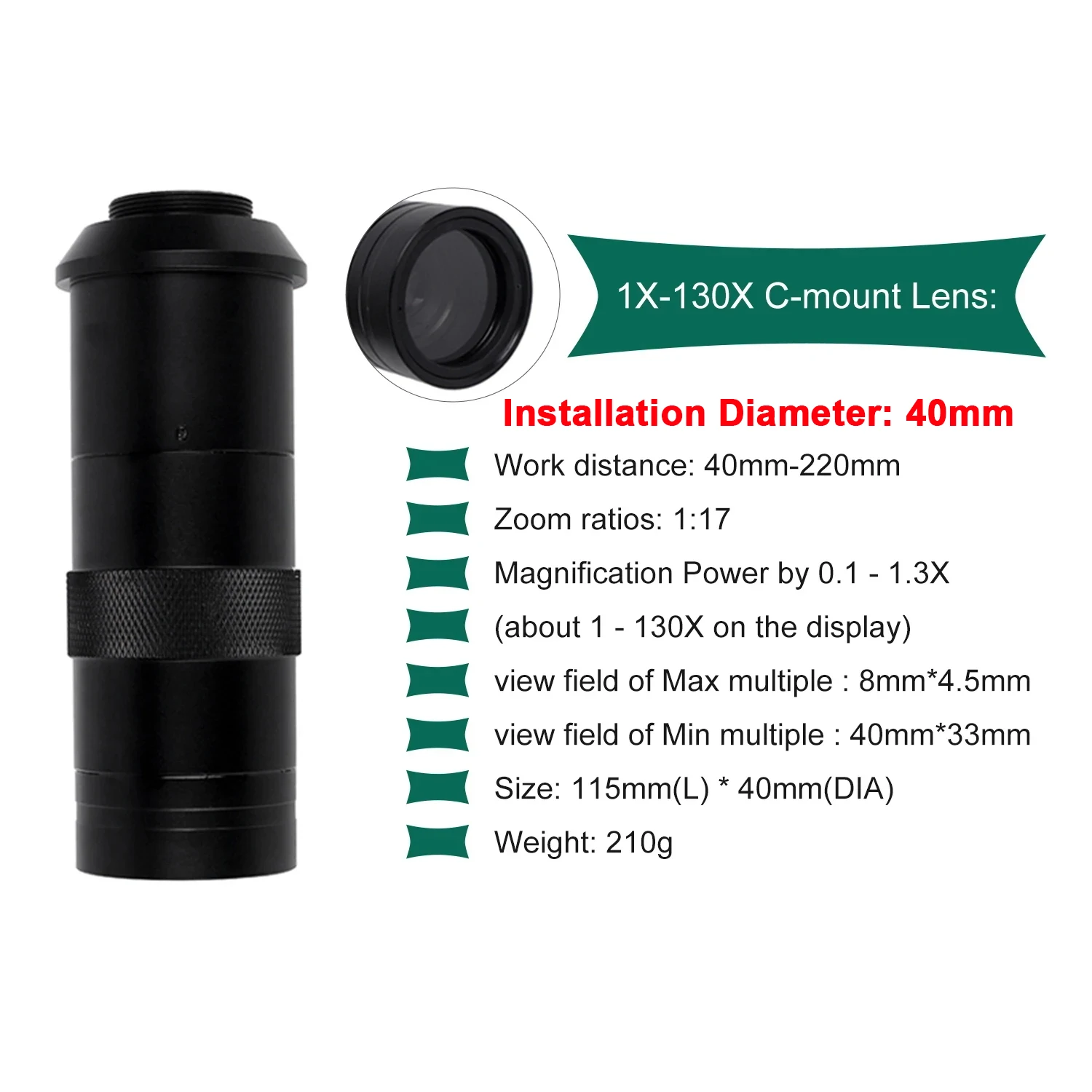

130X Lens Specifications:

Mounting Diameter: 40mm
Working Distance: 40mm-220mm
Zoom Ratio: 1:17
Magnification: 0.1-1.3X (approx. 1-130X on screen)
Maximum Magnification Field of View: 8mm*4.5mm
Minimum Magnification Field of View: 40mm*33mm
Dimensions: 115mm (Length) * 40mm (Diameter)
Weight: 210g

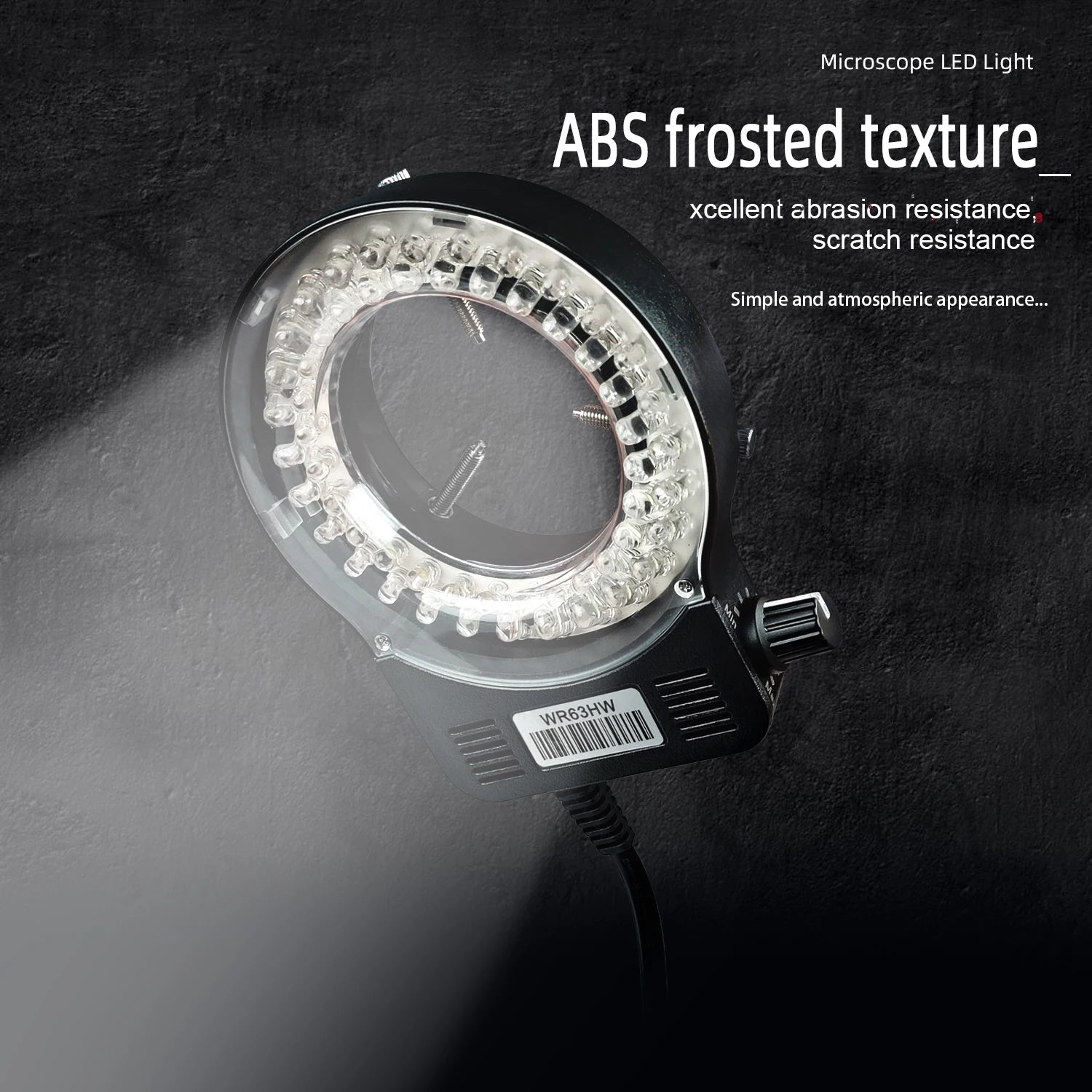

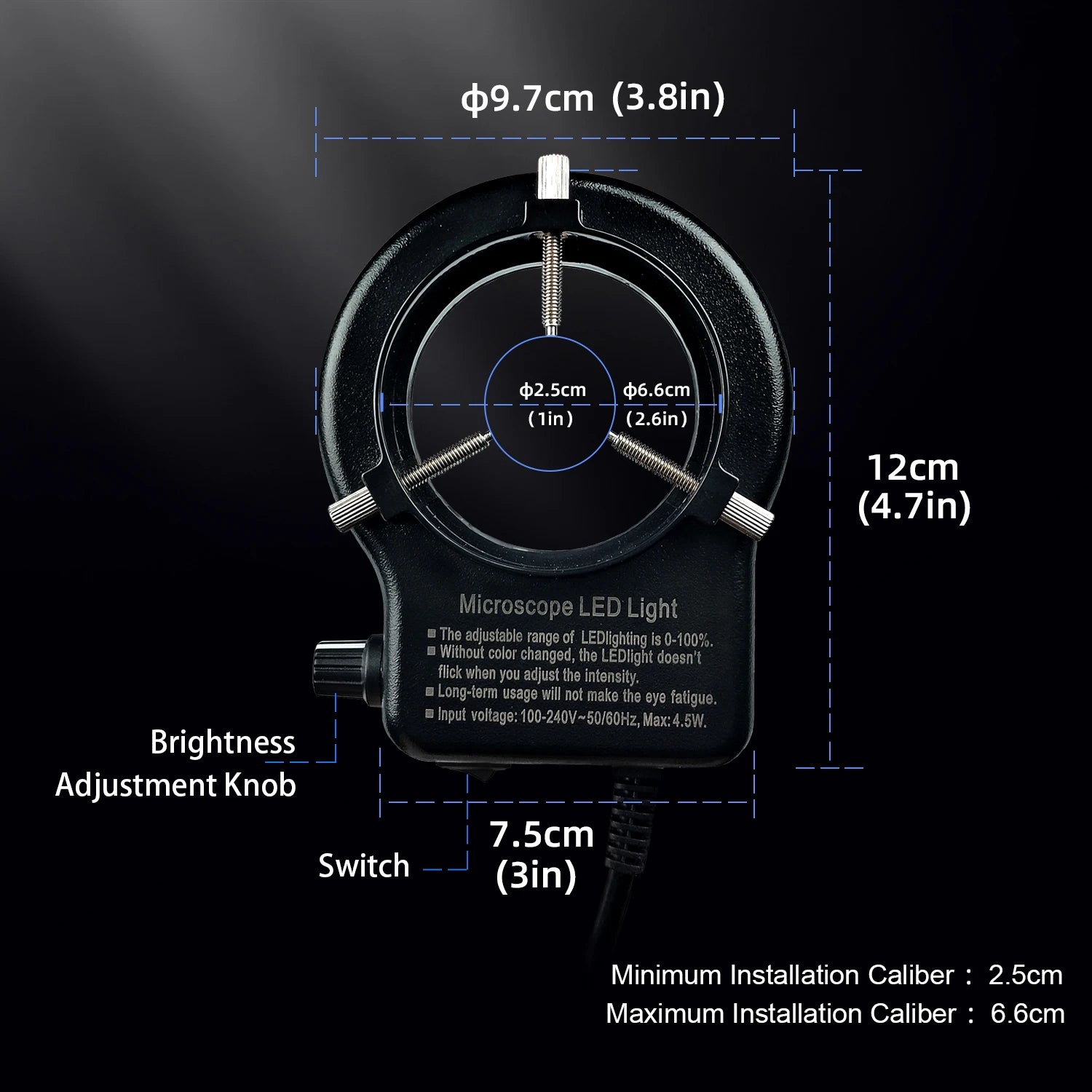

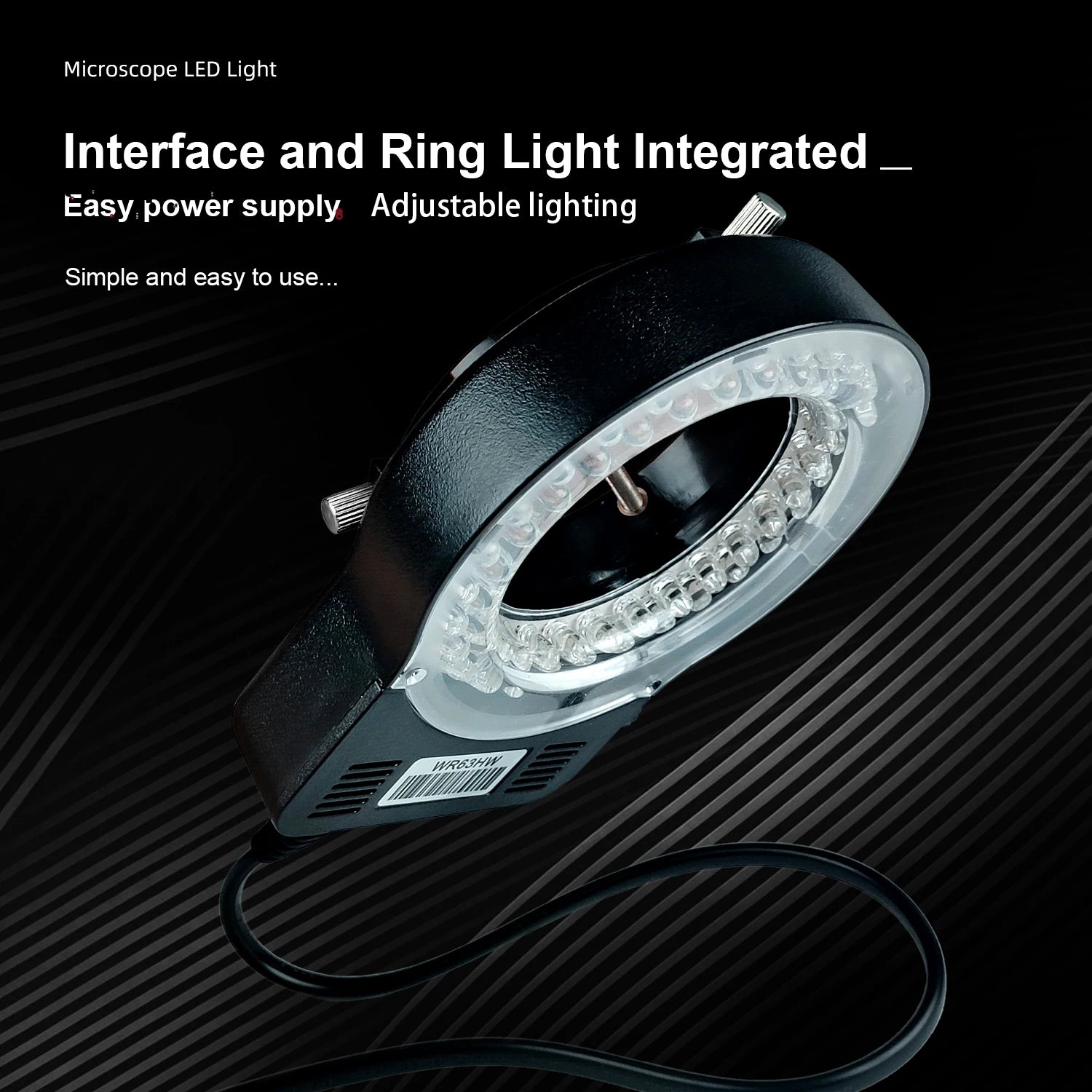

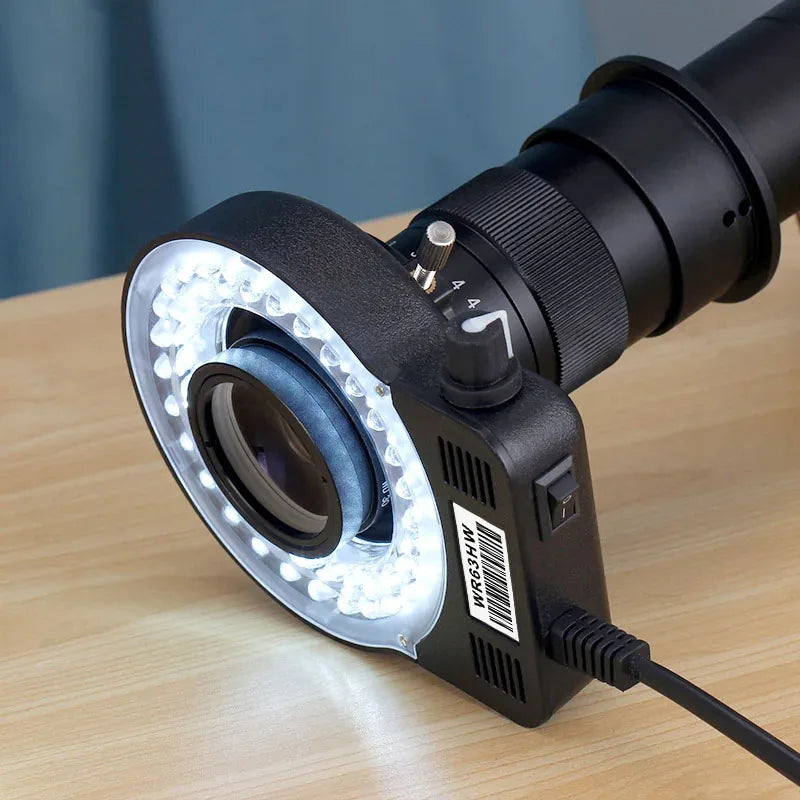

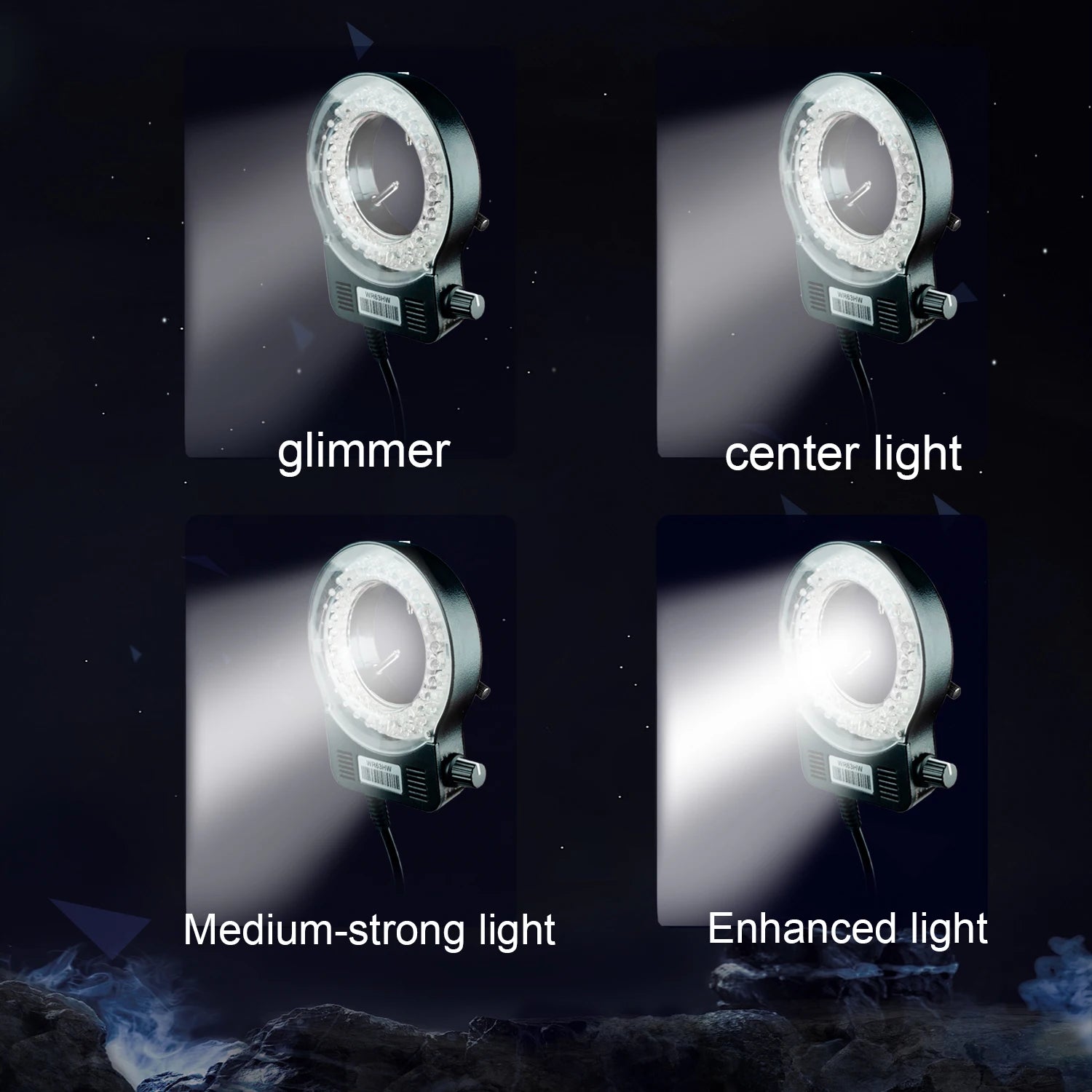

Ring light specifications:

Material: plastic
Color: black/white
Size: 100mm
Weight: 240g
Model: WR63HW
Power: 4.5W
Power input: 110V-220V
Output voltage: DC12V/1A
Number of LEDs: 56
Working life: 100,000 hours
Color temperature: 6500K
Effective distance: 50-300mm
Inner diameter: 63mm
Outer diameter: 97mm
Light color: white light

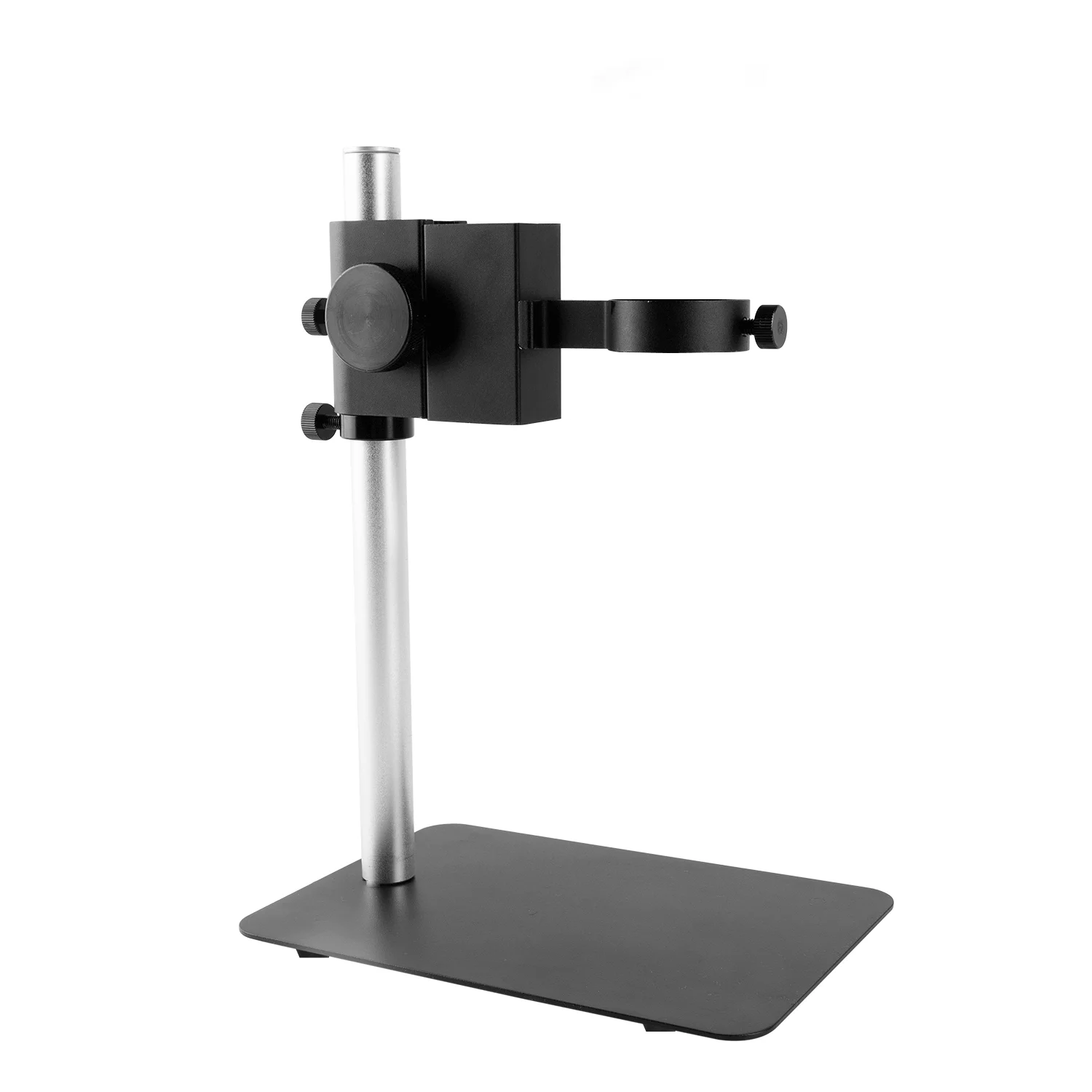

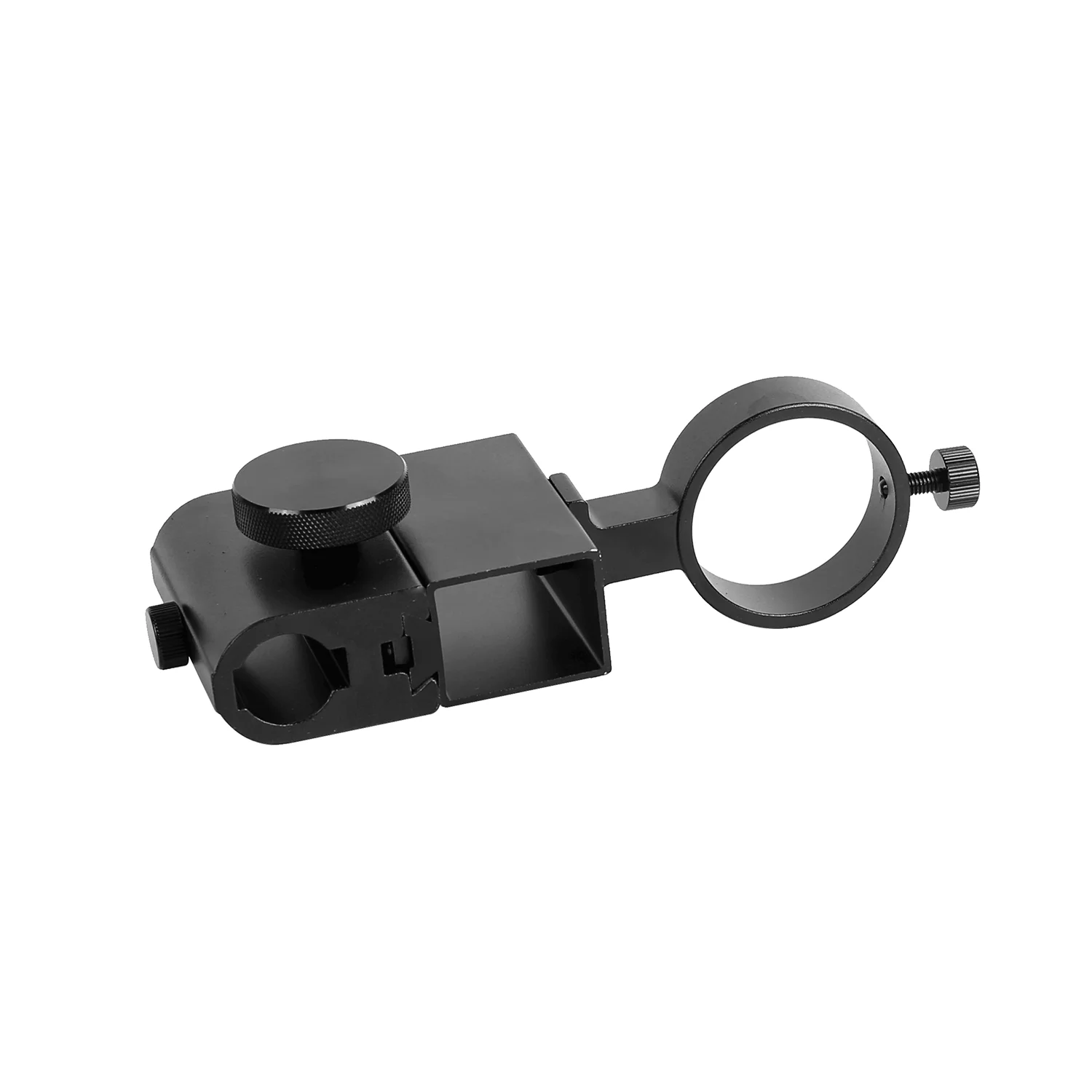

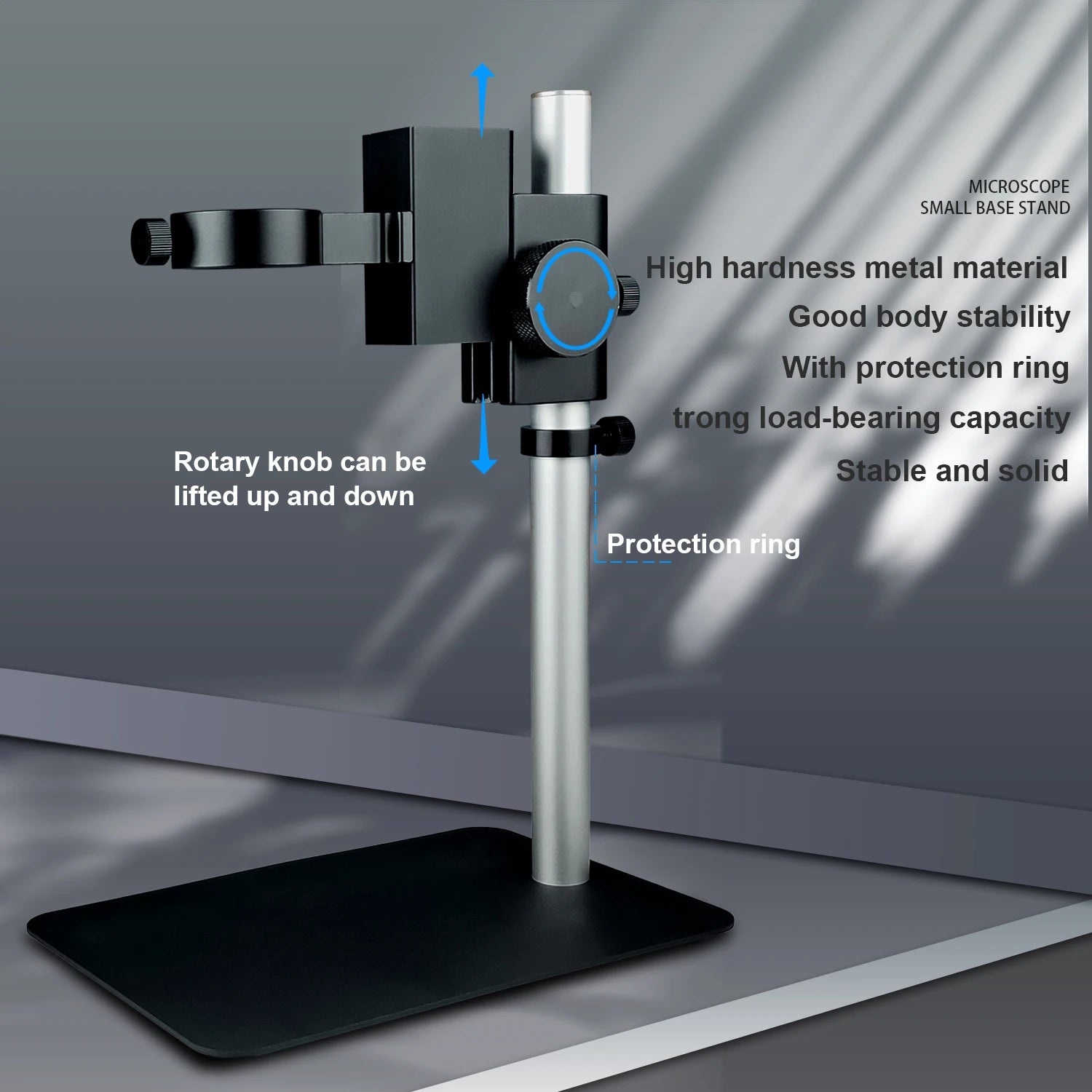

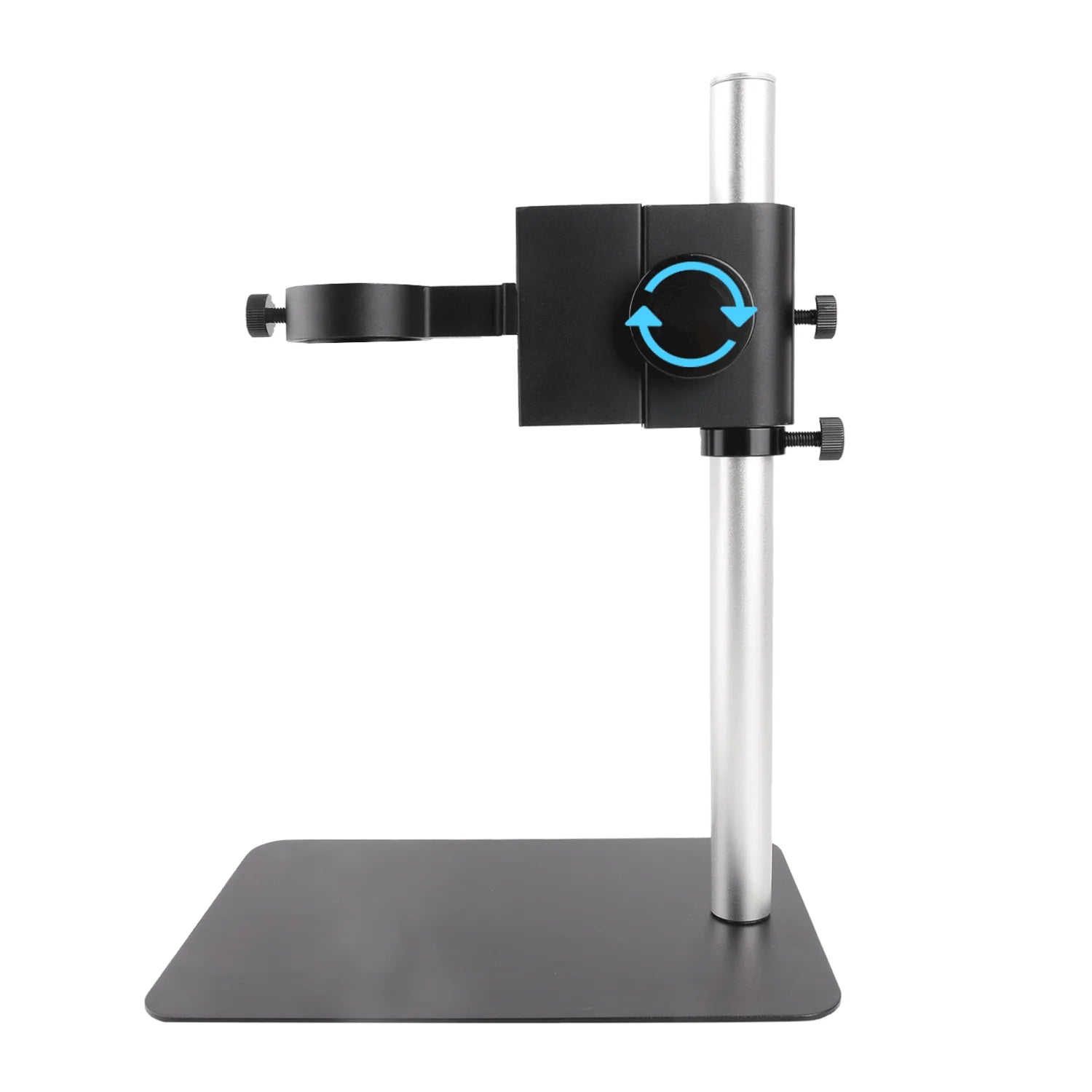

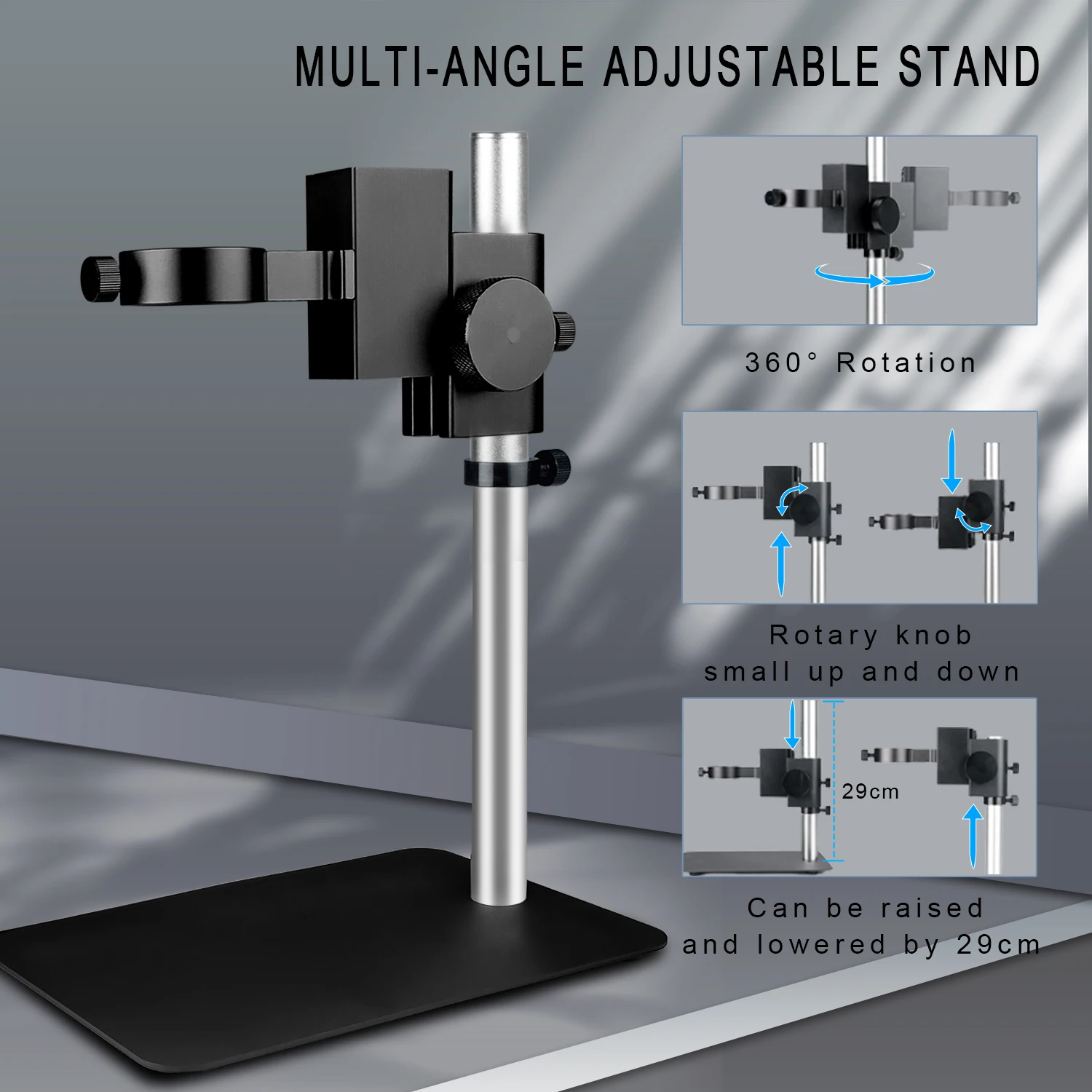

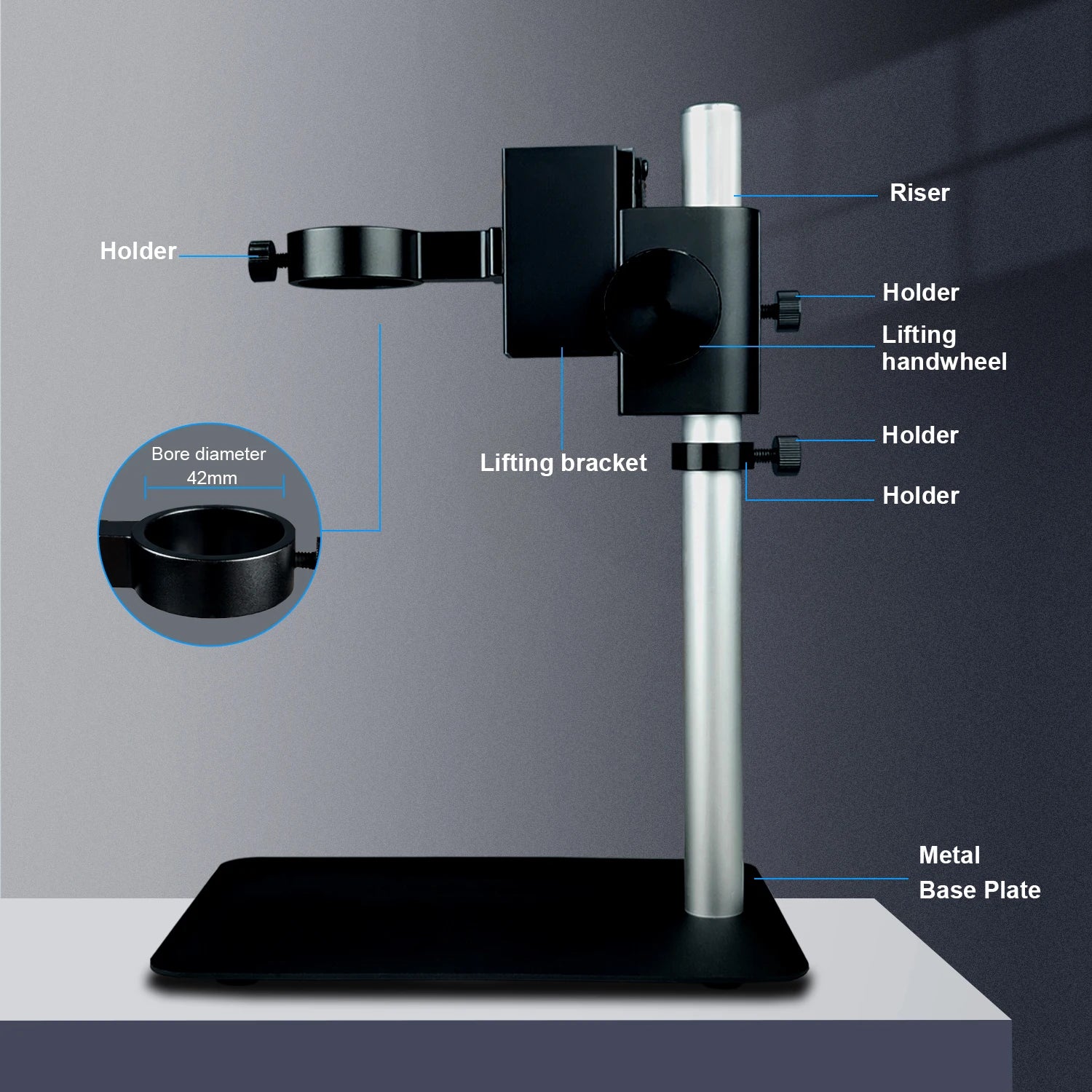

Small Base Specifications:

Features: This microscope workstation is height adjustable to meet your requirements.
It allows the microscope to rotate at any angle.
The microscope lens can be fixed on this stand.

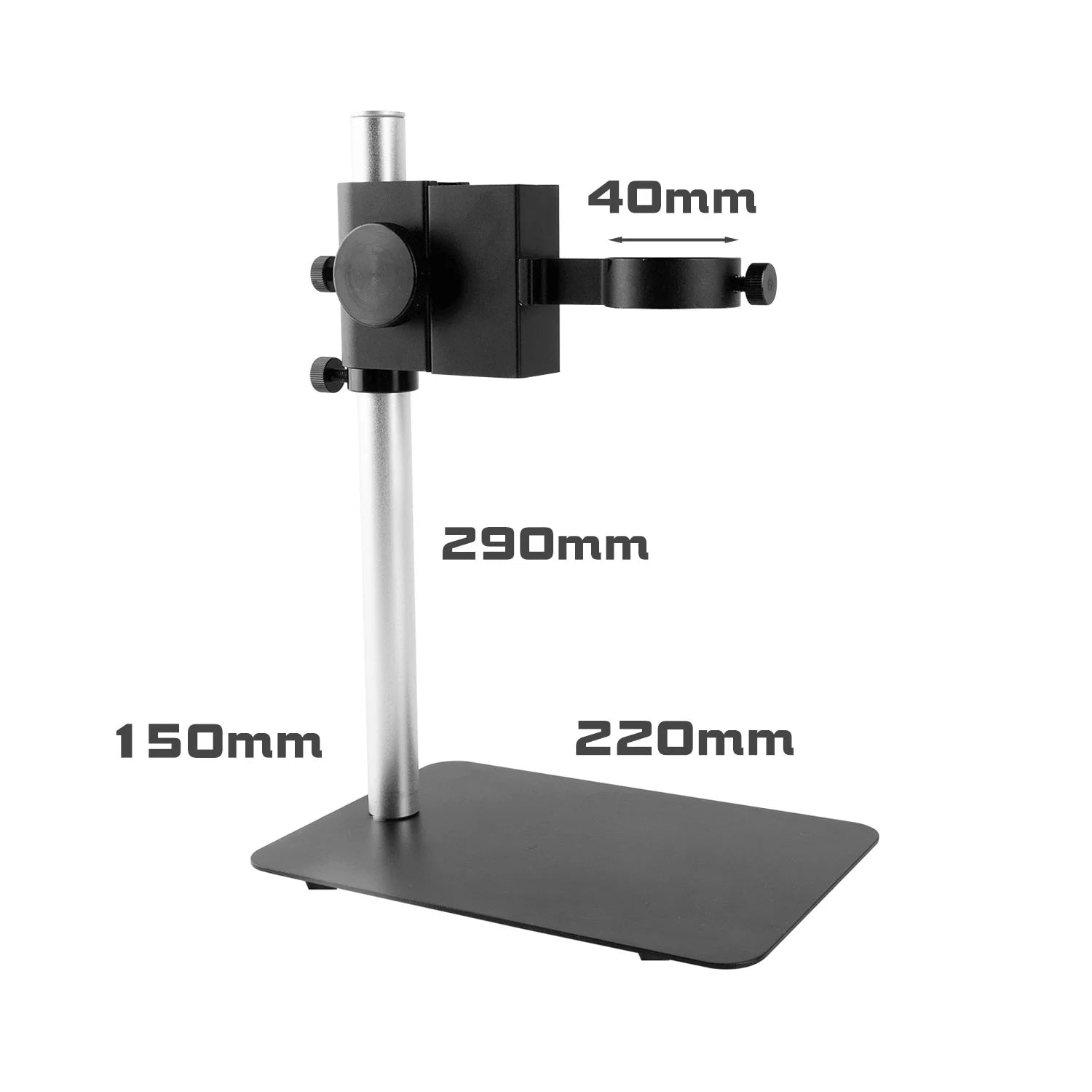

Product dimensions: Assembled base dimensions: 150mm * 220mm
Main column height: 290mm

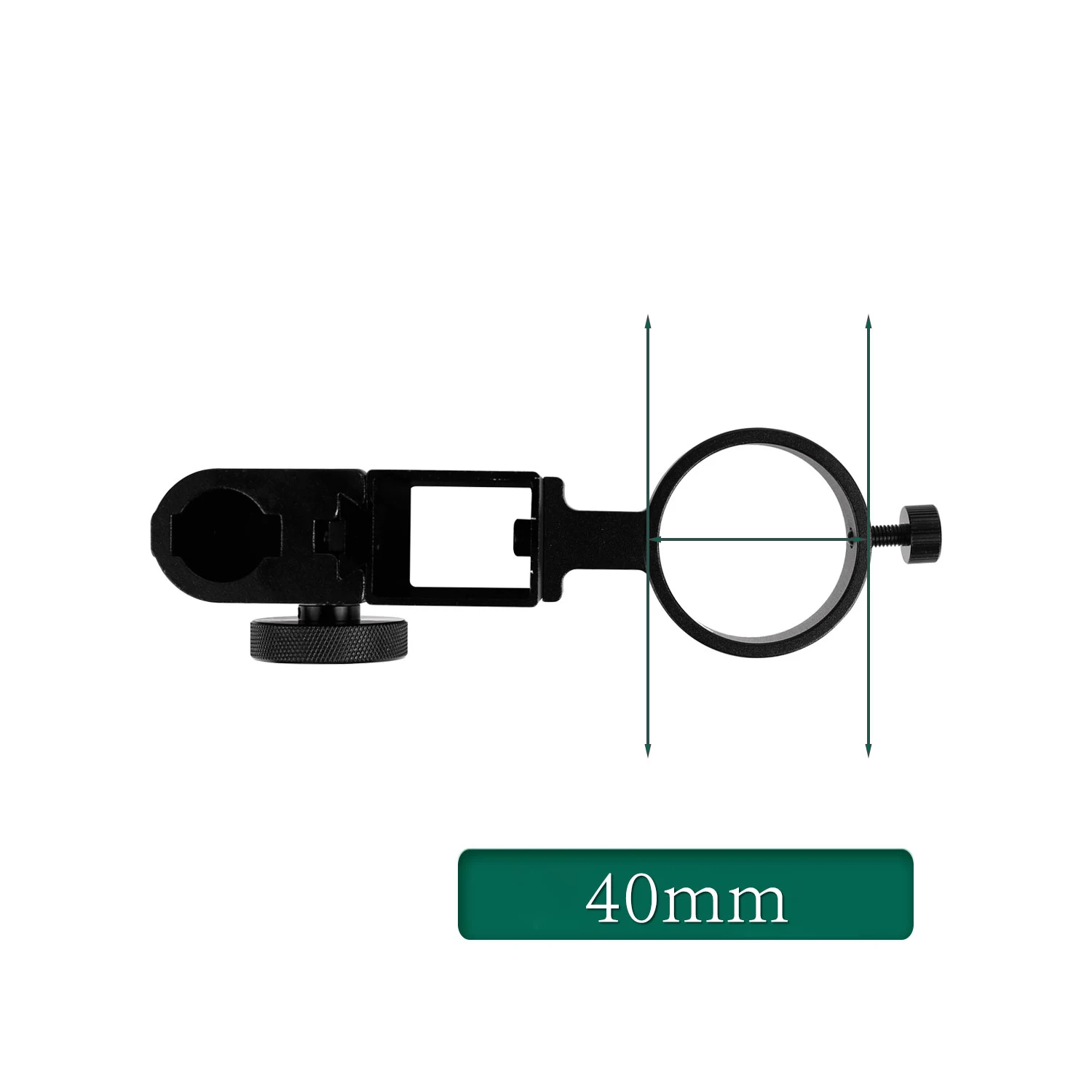

Lens mounting inner diameter: 42mm
