1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.
3. In the electronics industry, it is used as operating tools such as transistor soldering, mobile phone electronic maintenance, watch maintenance and inspection.
4. In biological anatomy, applied to local anatomy.
5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.
6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.
7. Cultural relics, books, coins, calligraphy and paintings, the inspection
8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.

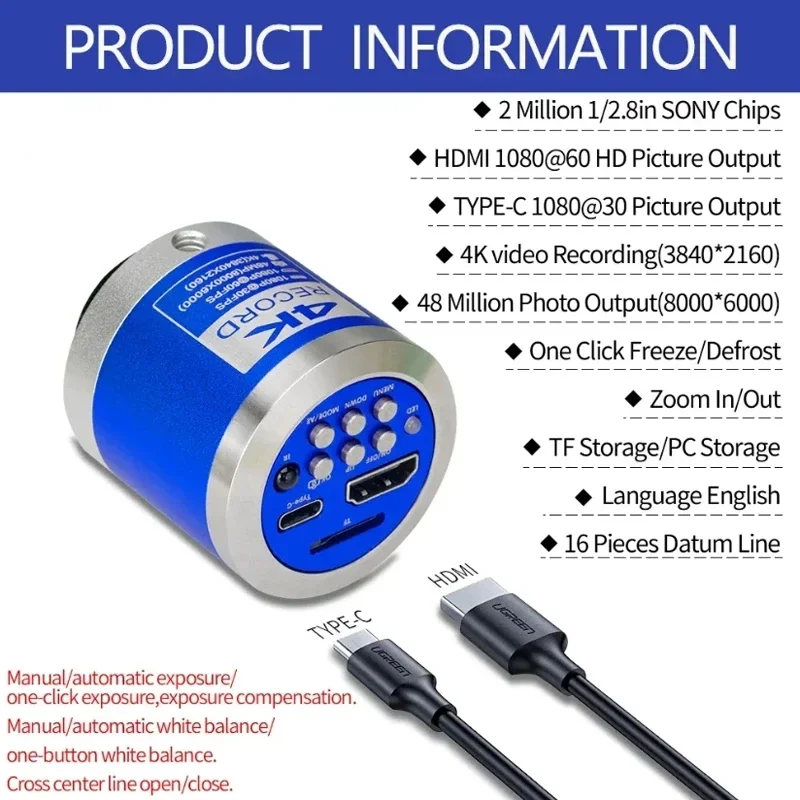

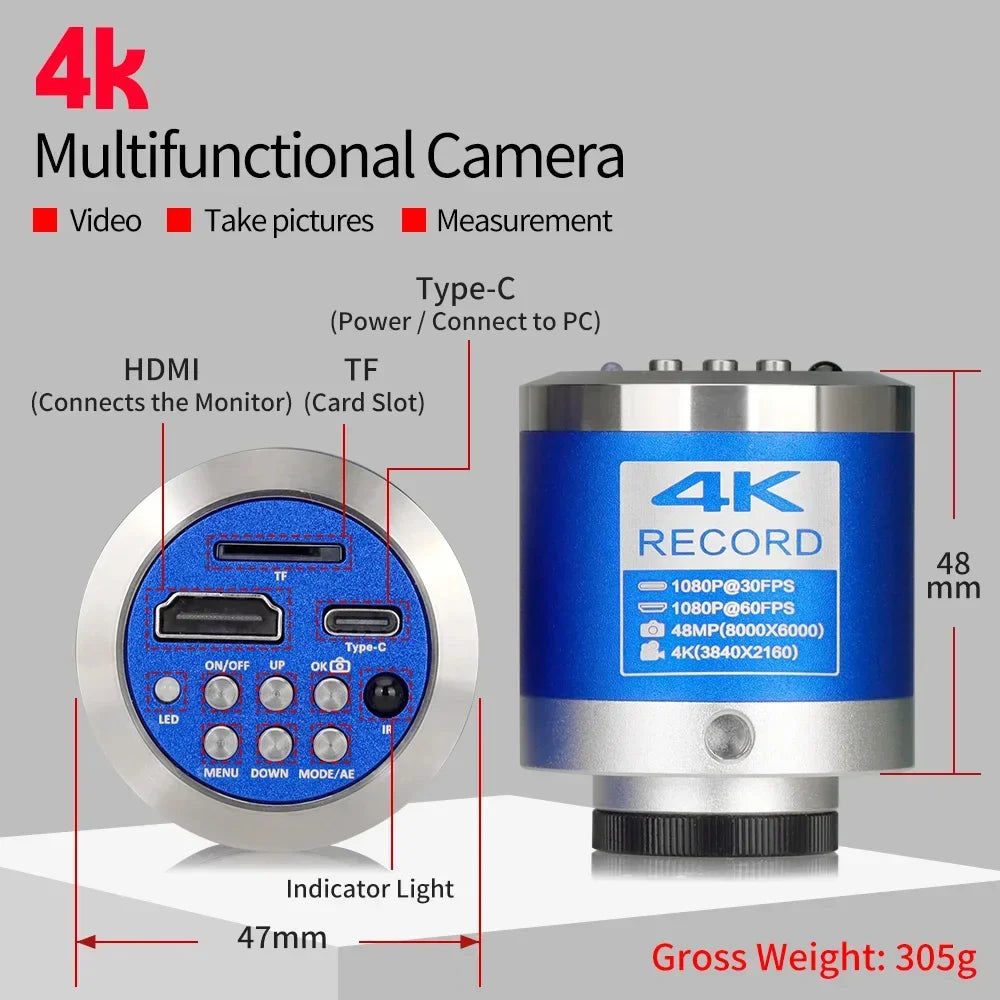

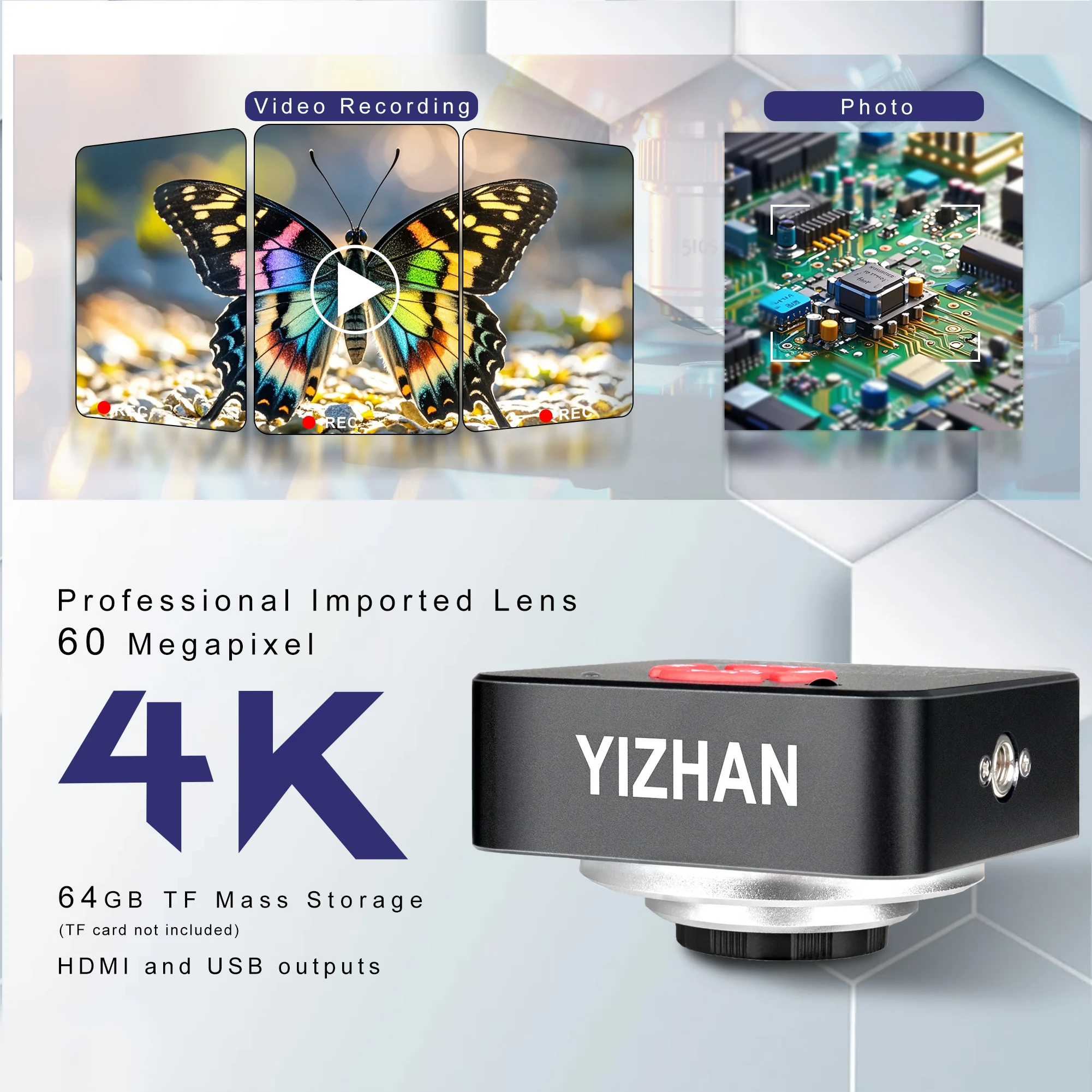

XHU4003 Product features FULL HD Camera Parameter

1/2.8in SONY Chips
4K video Recording(3840*2160)
48 Million PX Photo Output(8000*6000)
TYPE-C 1080@30 Video Output
TYPE-C 1080 Picture Output
Measured By Computer
Input Voltage : 12v/1A

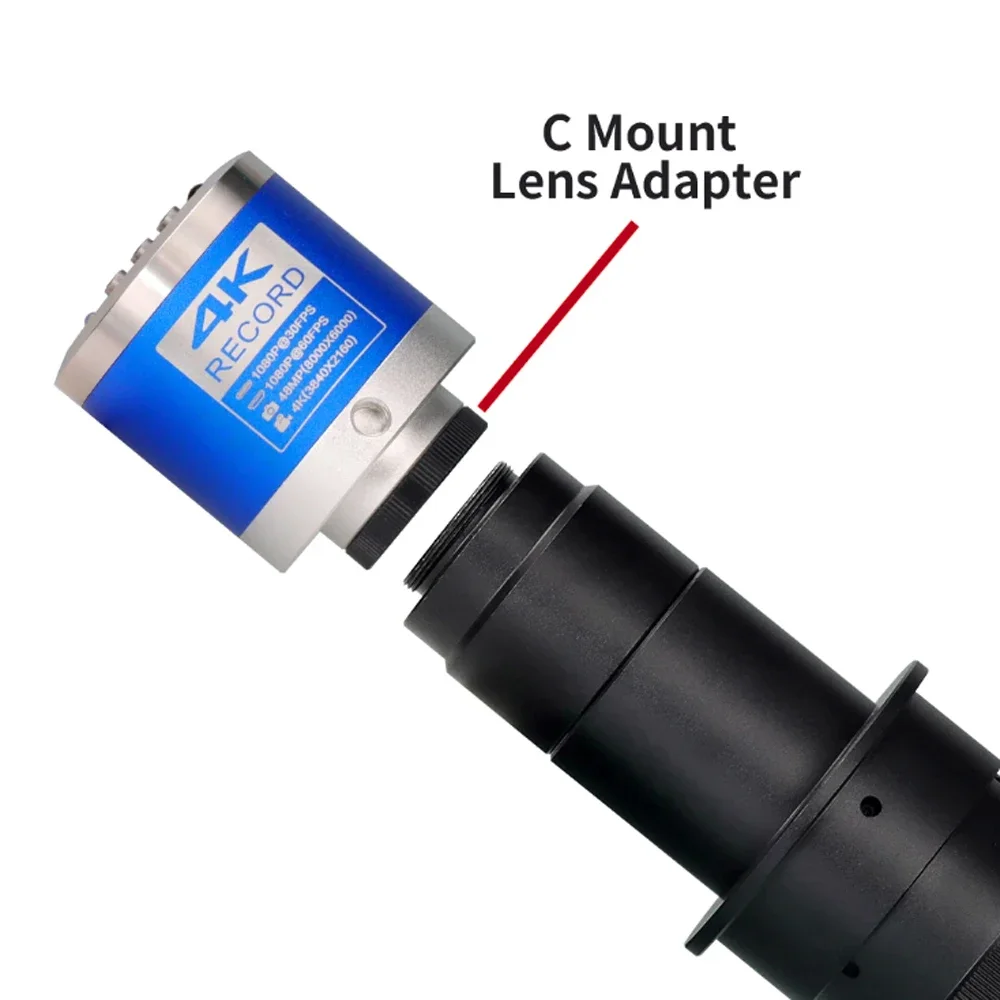

C-Mount Lens
One Click Freeze/Defrost
Zoom In/Out
TF Storage/PC Storage
Language English
Supports 16 Datum lines with
adjustable color,thickness and position.
Manual/automatic exposure/one-click exposure,
exposure compensation.
Manual/automatic white balance/one-button
white balance.RGB adjustable
Cross center line open/close.

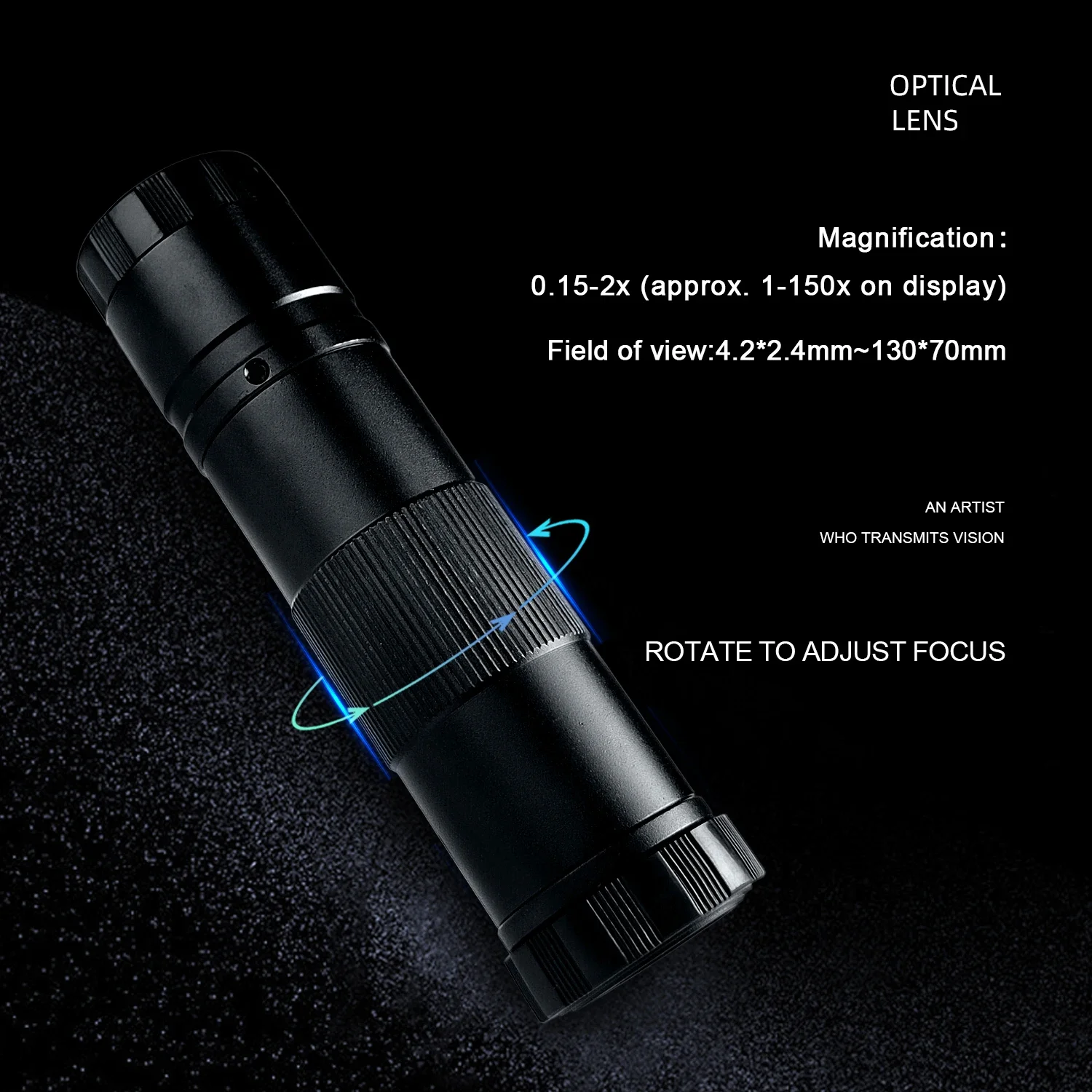

Working Distance : 20 mm—700mm
Magnification : 10X-150X (32in displayer)
X-axis Visual Field : 4.2mm-130mm

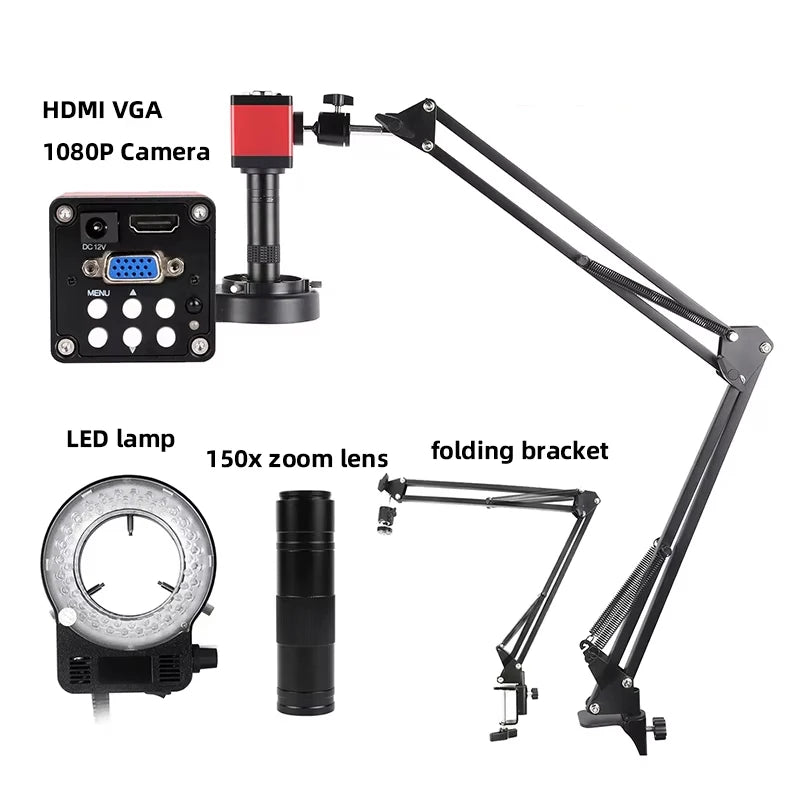

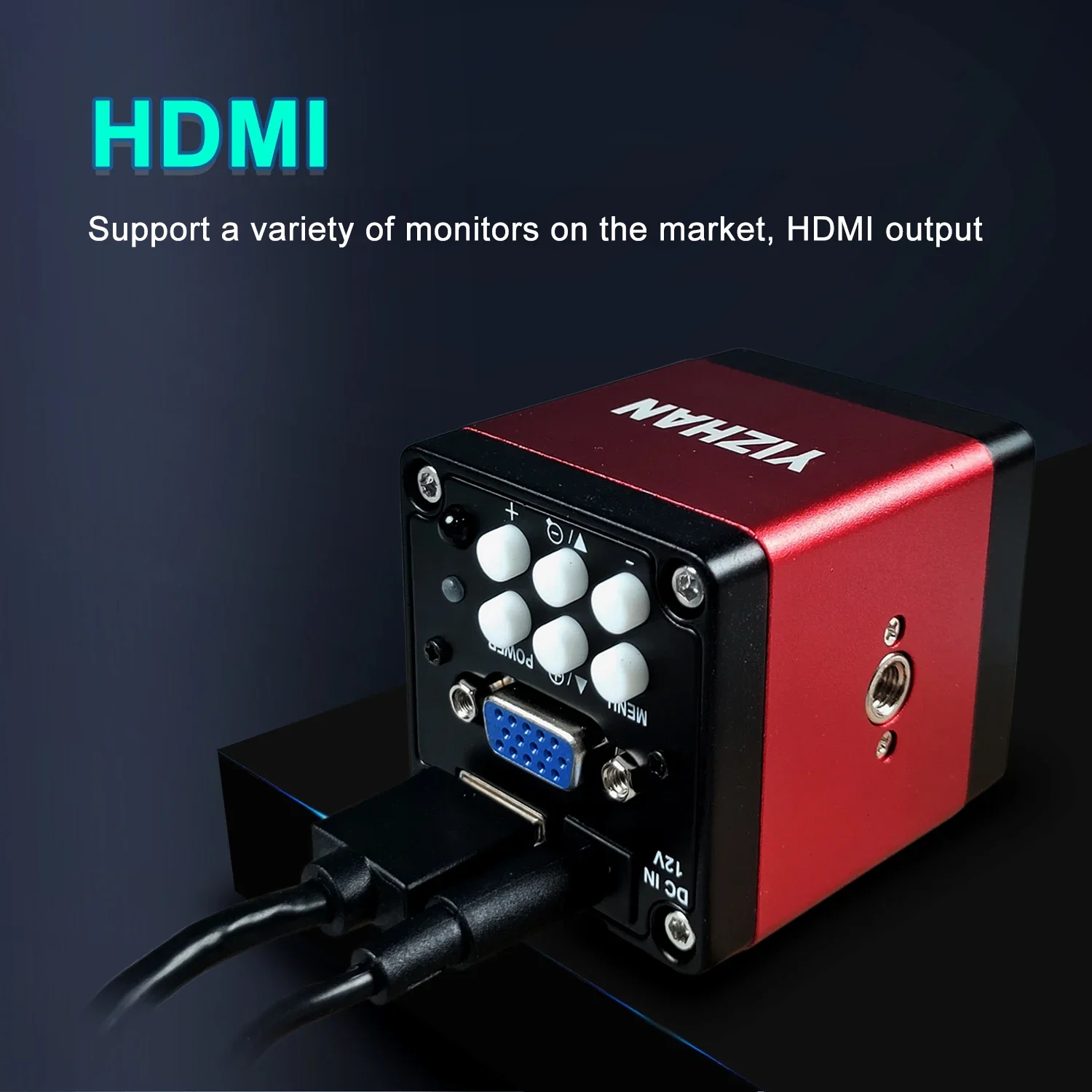

XVH2003 Product features

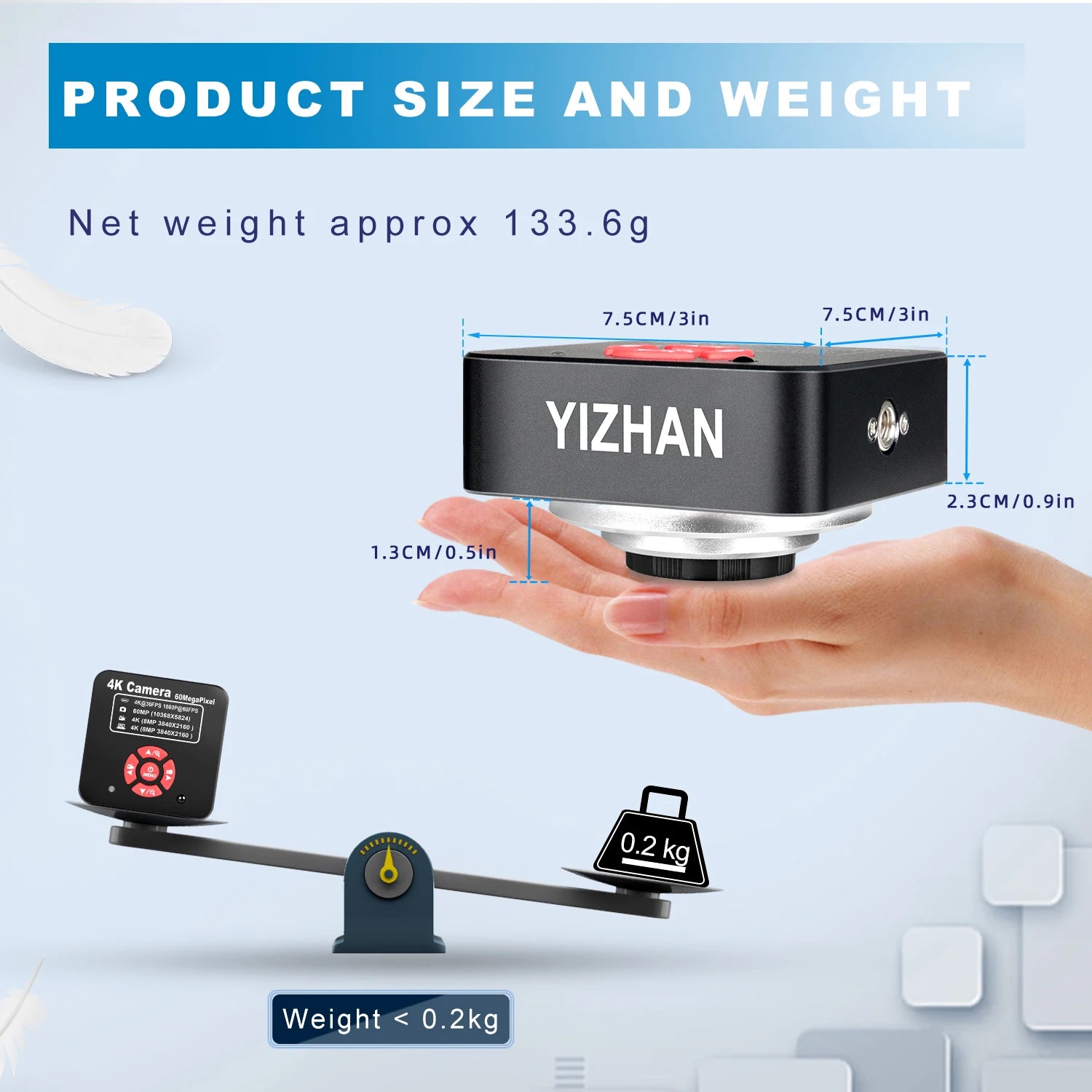

Overall dimension: 75*50*50mm

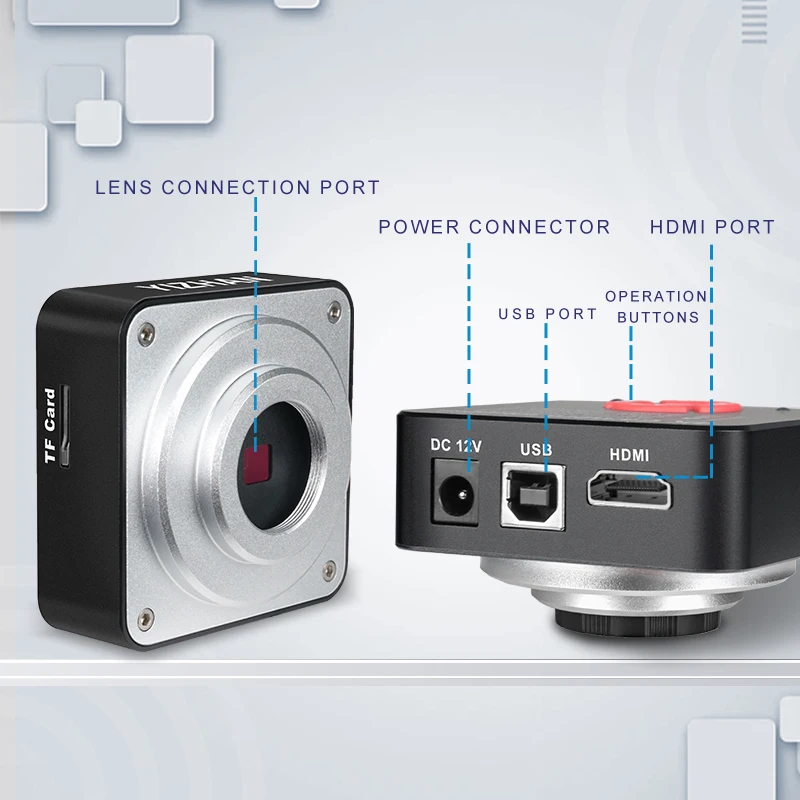

Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

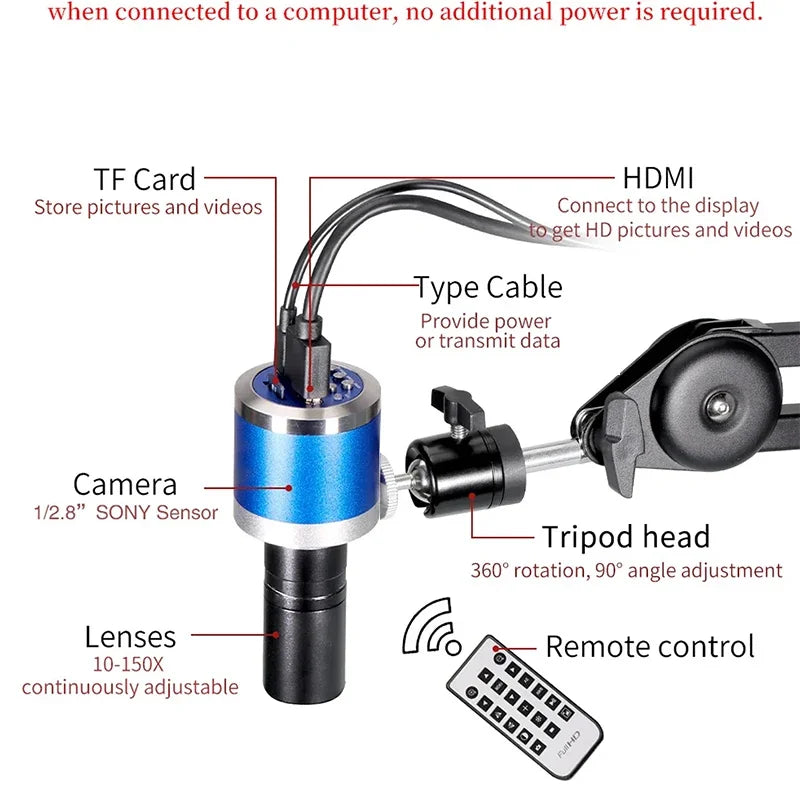

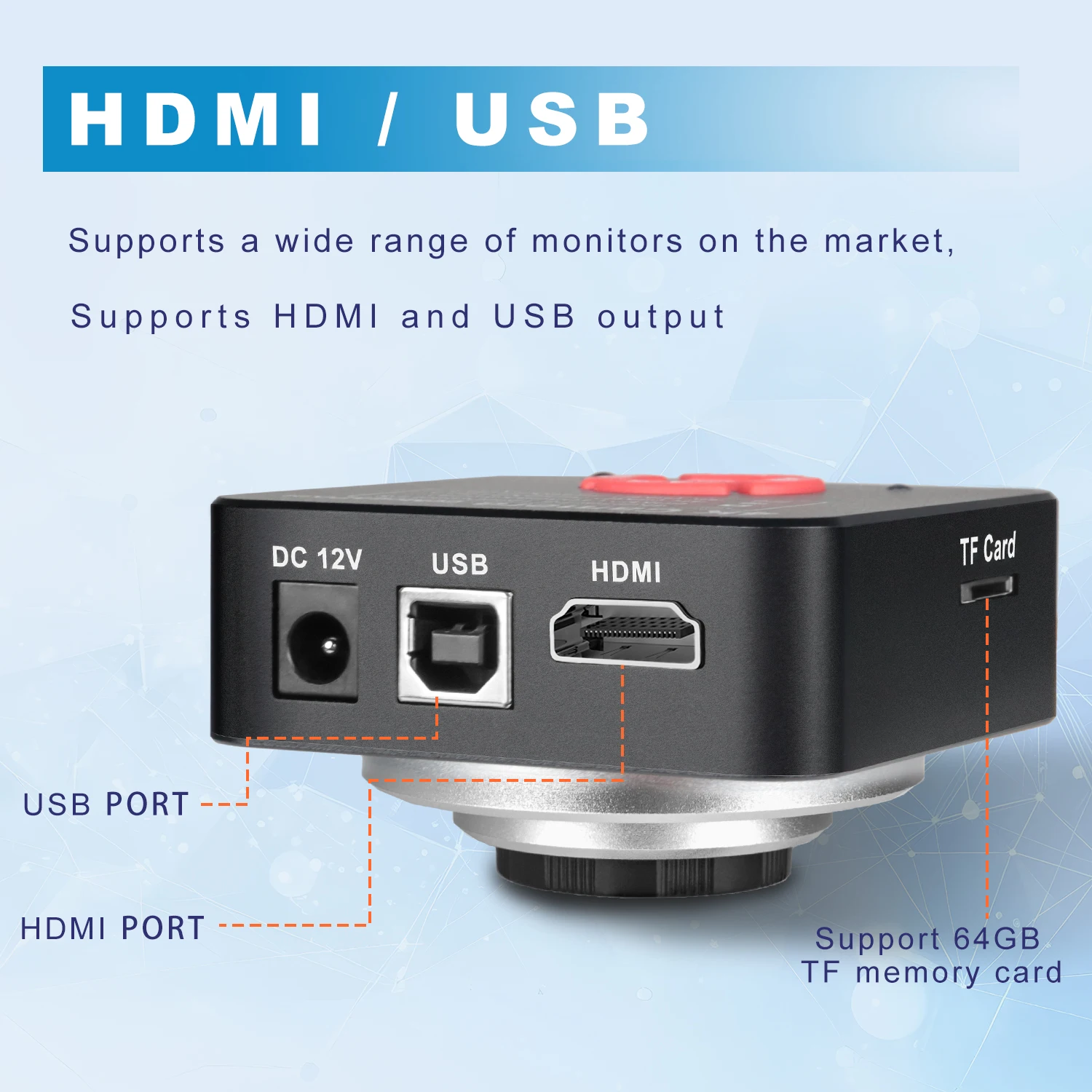

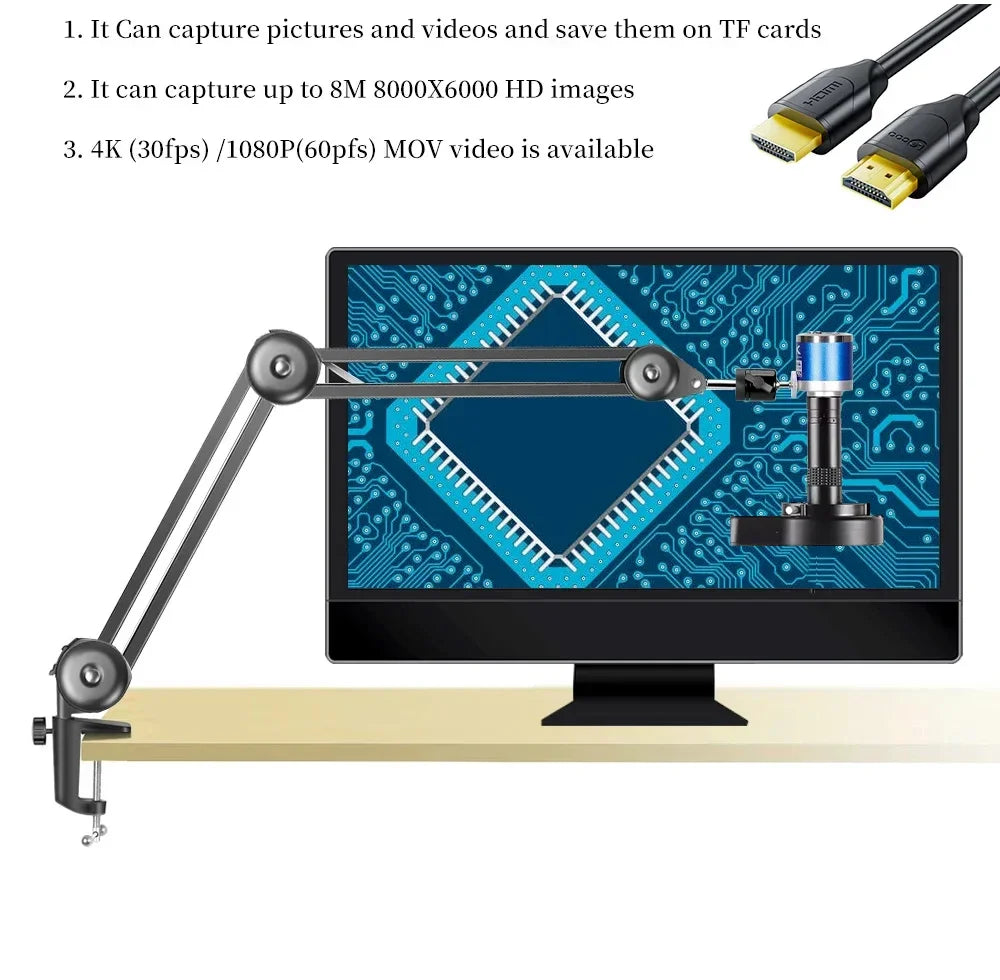

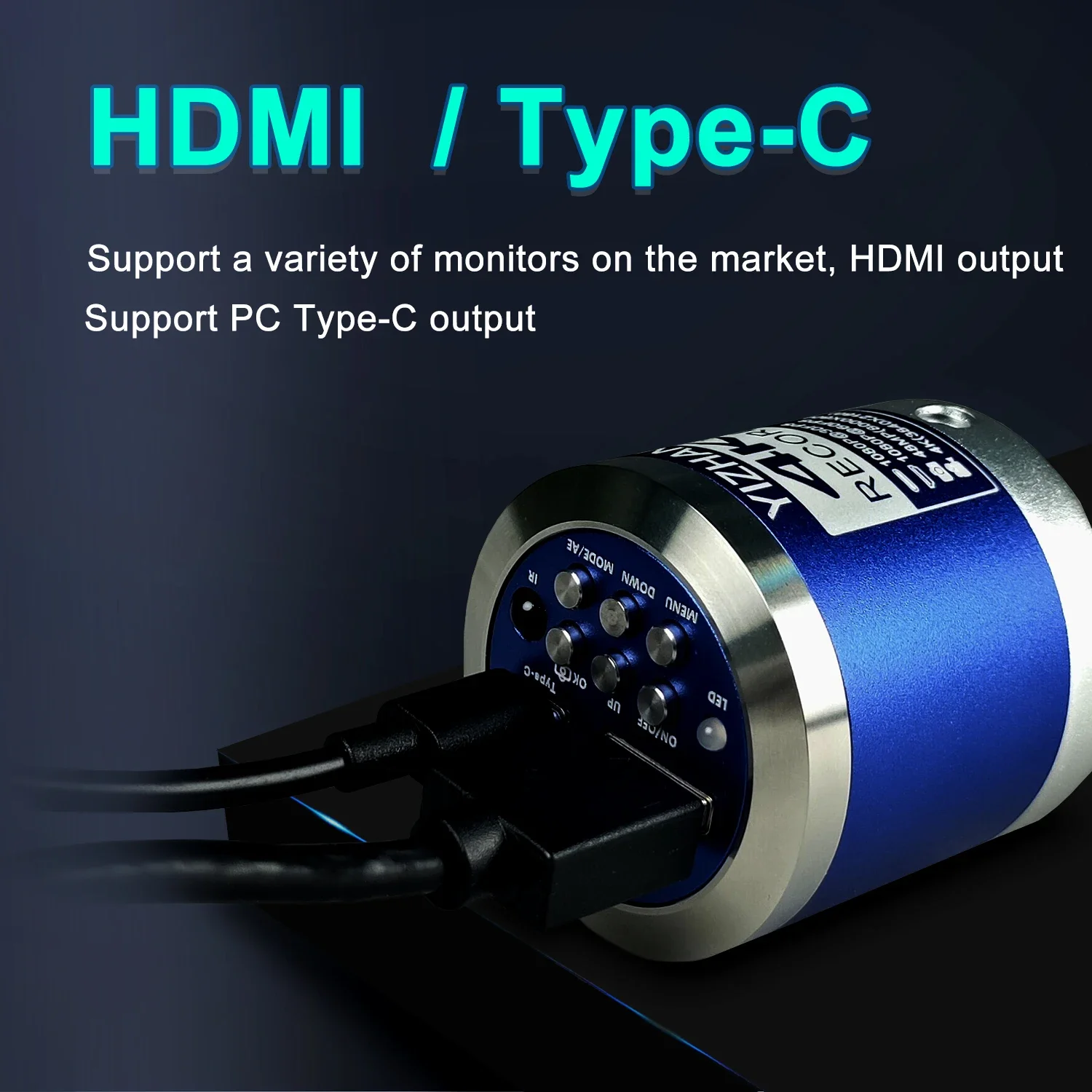

Connect Display Via HDMI

1. It Can capture pictures and videos and save them on TF cards

2. It can capture up to 8M 8000X6000 HD images

3. 4K (30fps) /1080P(60pfs) MOV video is available

Connect computer via Type

1. Install the ImageView on your computer

2. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.

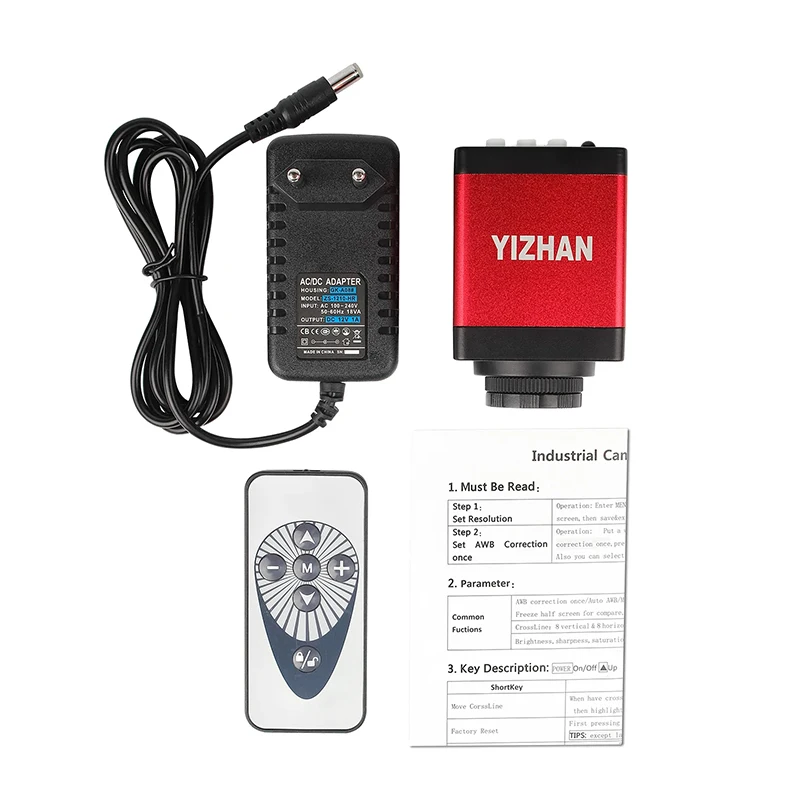

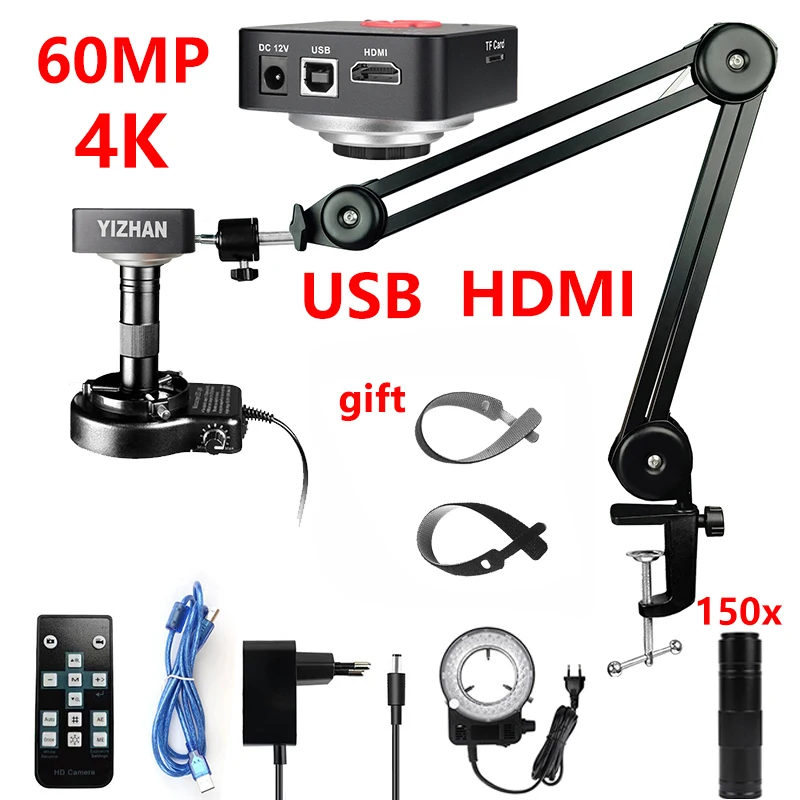

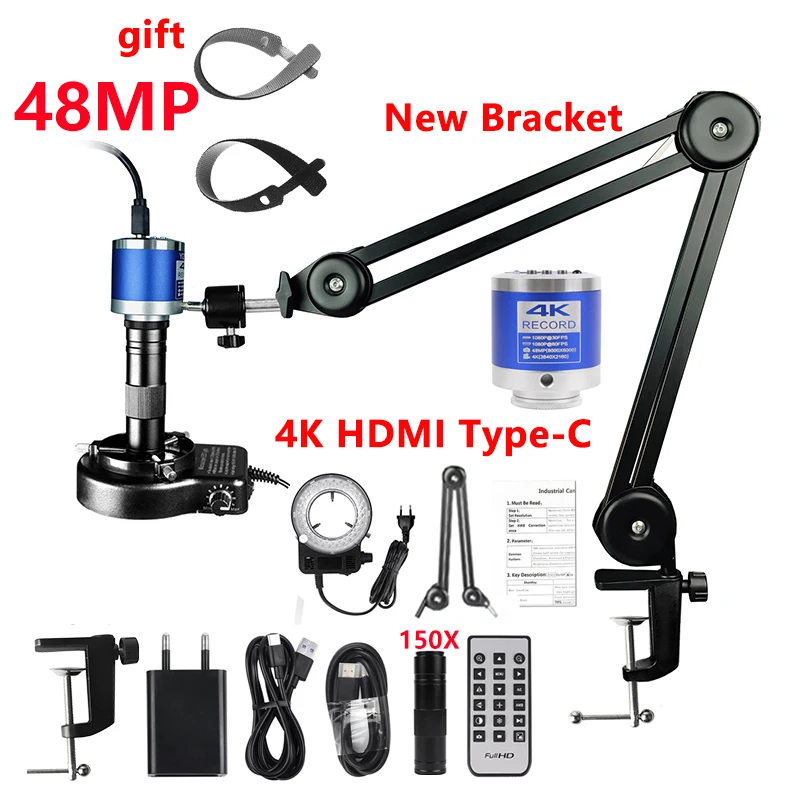

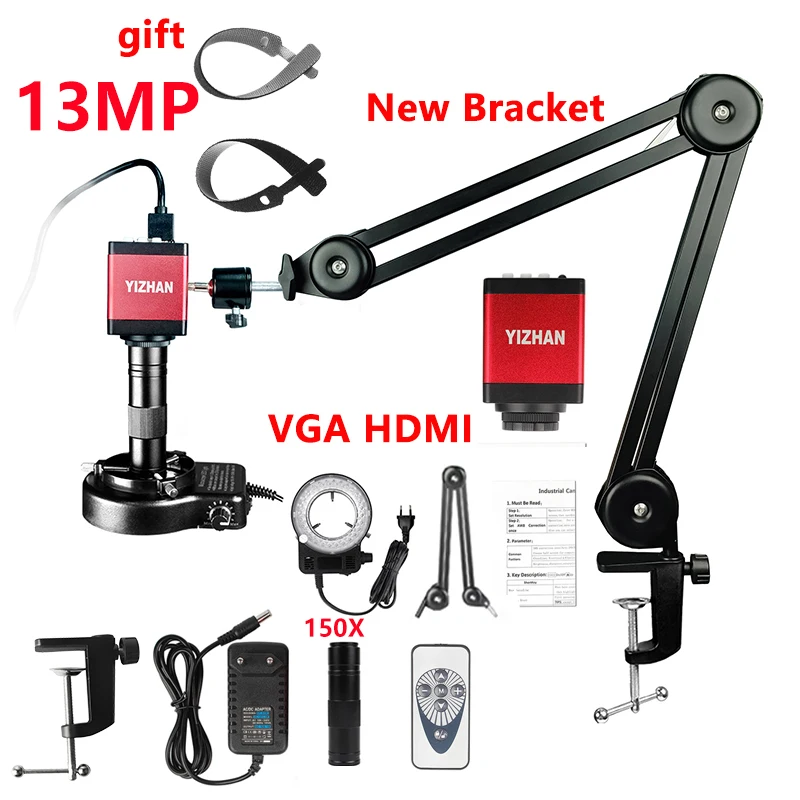

Full Set package List :

1 x FULL HD Camera
1 x Power Adapter
1 x HDMI Cable
1 x Type Cable
1 x Remote Control

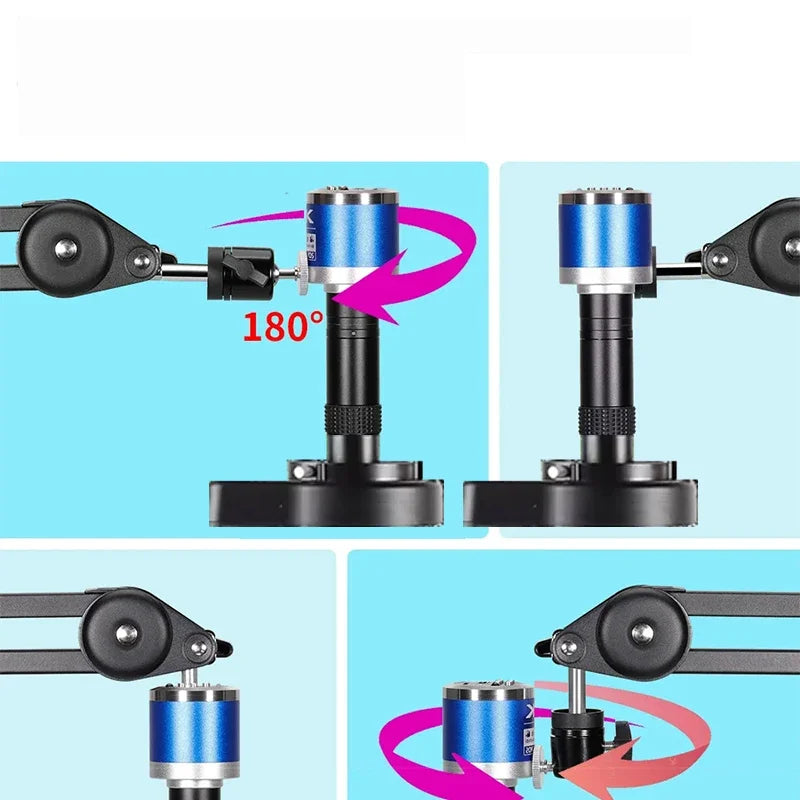

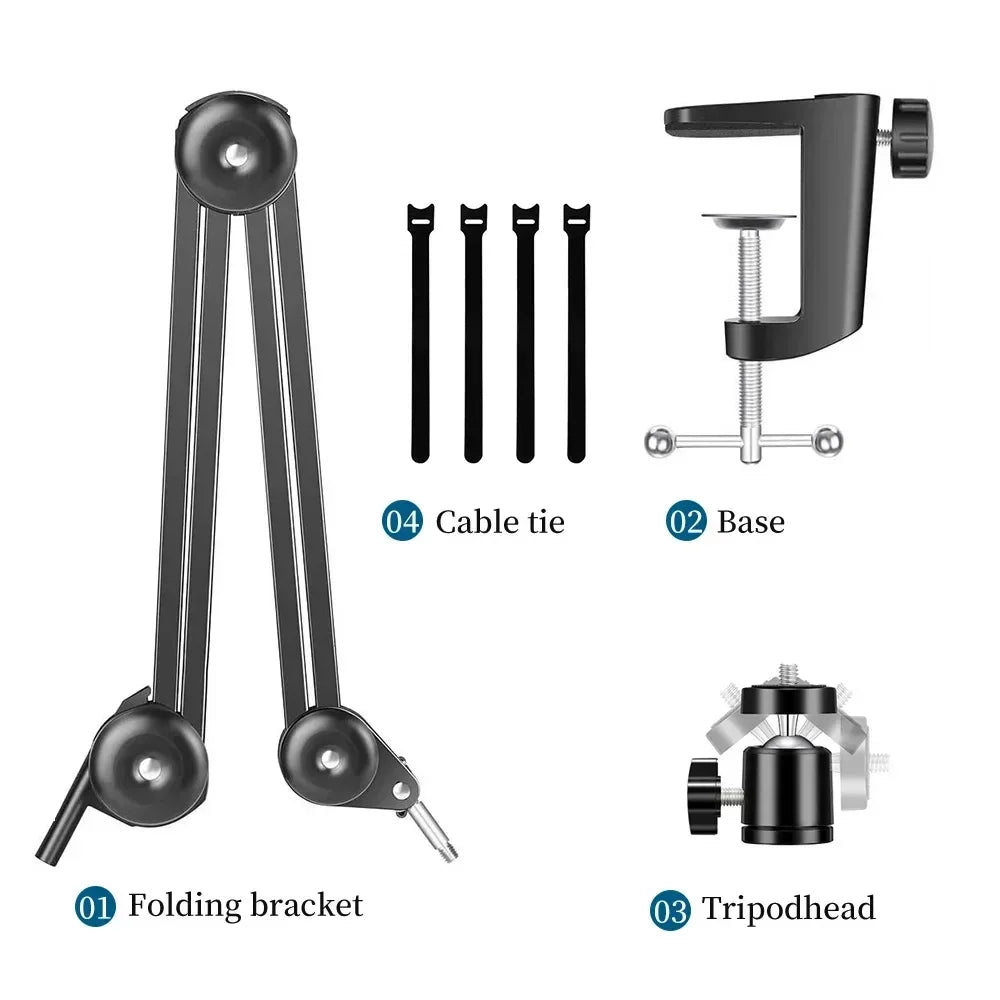

1 x 37CM Folding Bracket

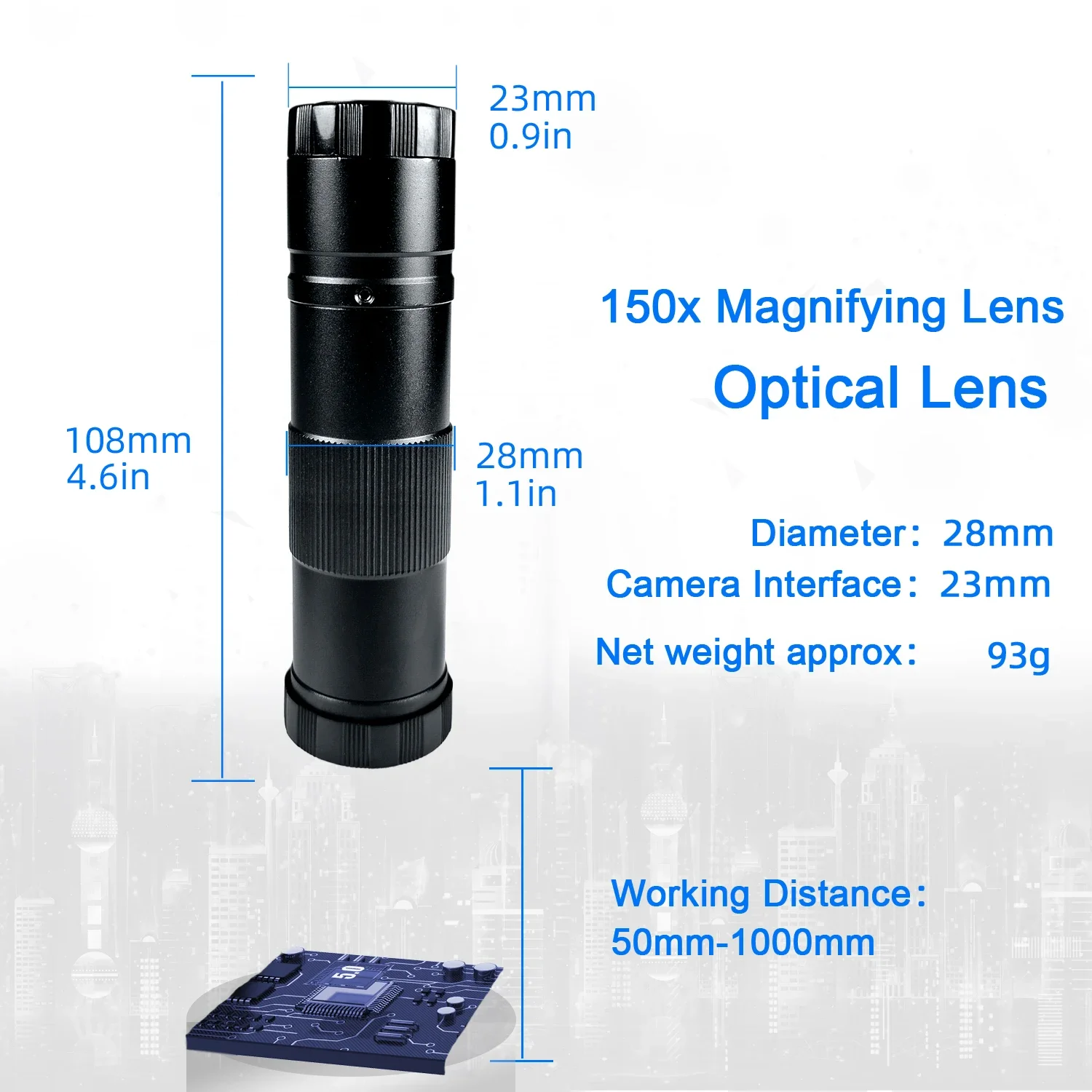

1 x Lens

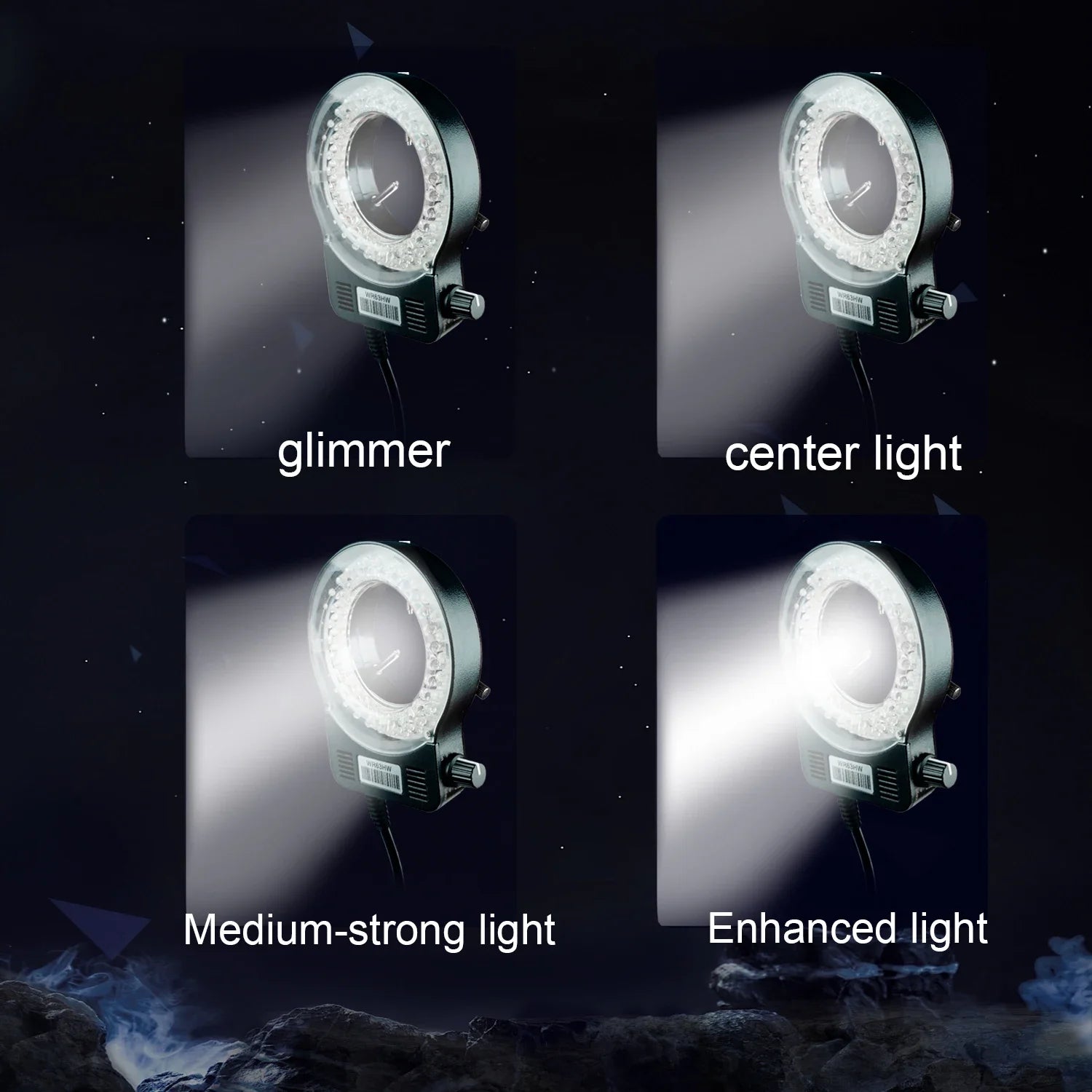

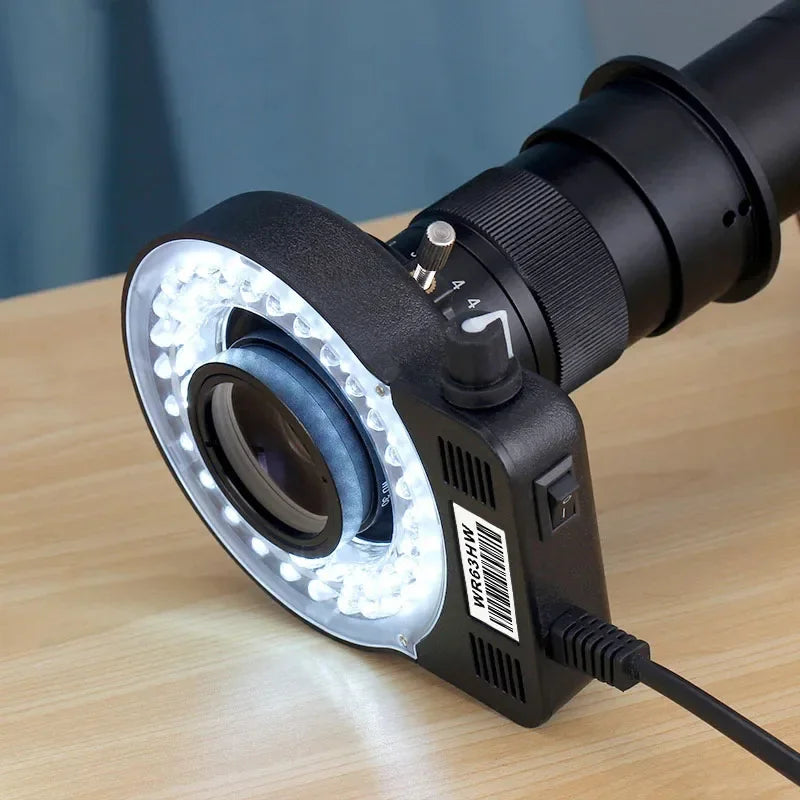

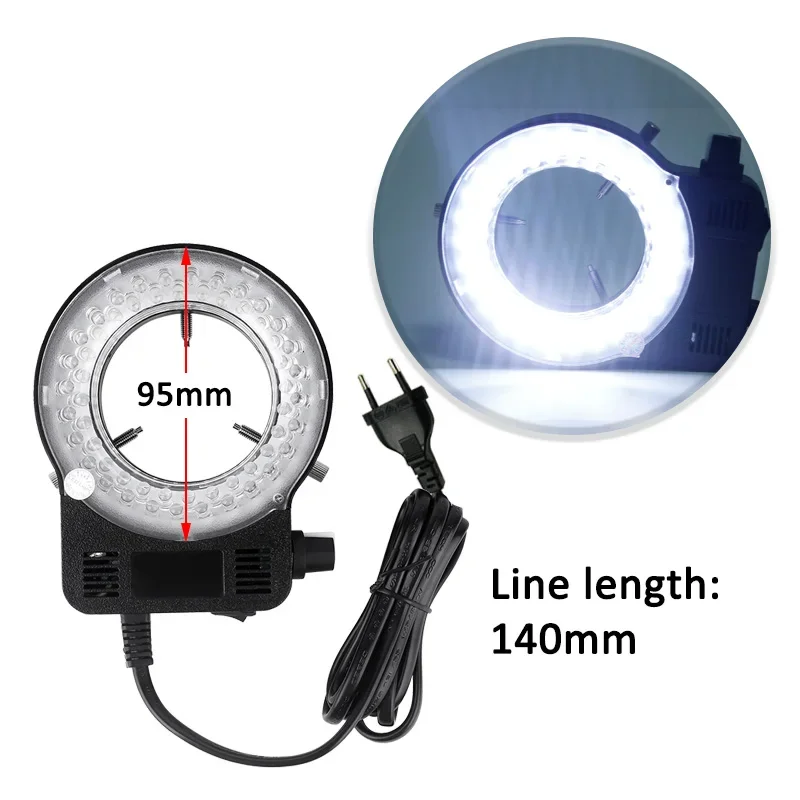

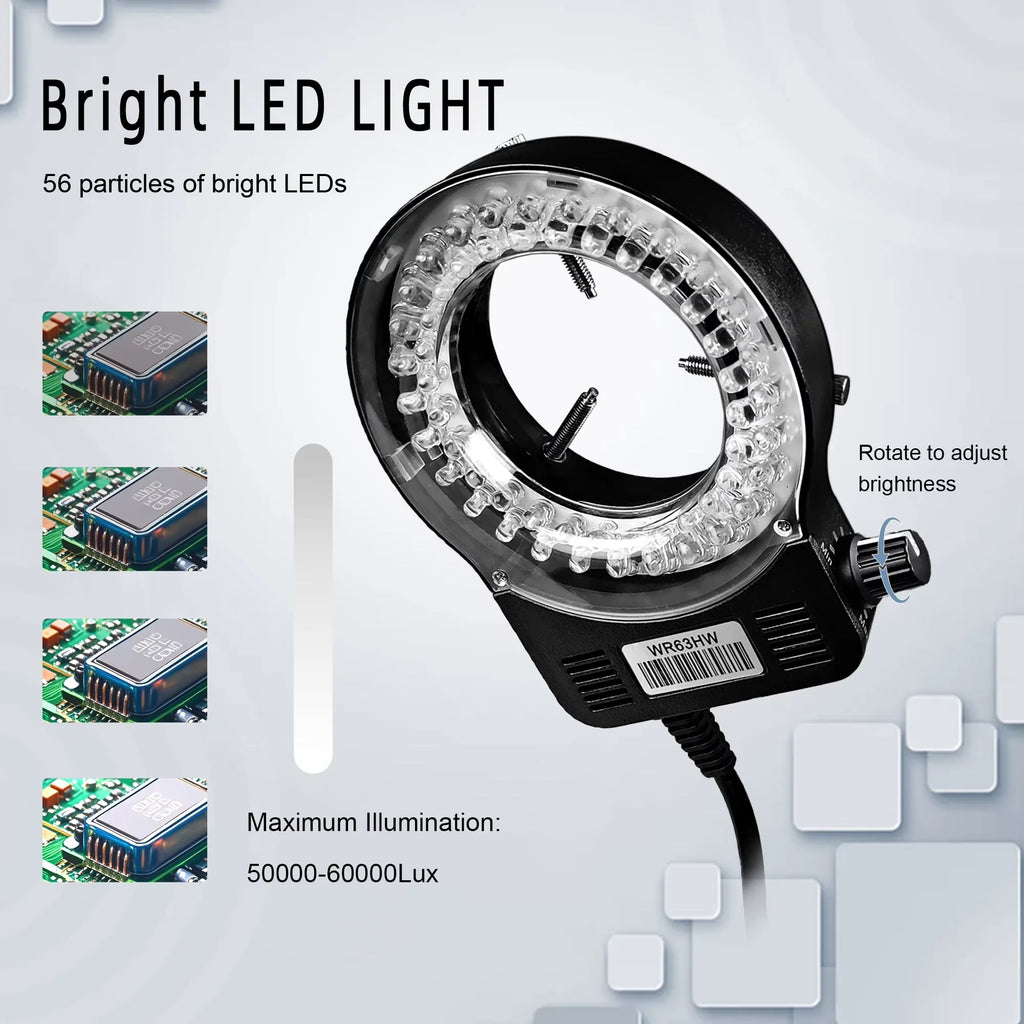

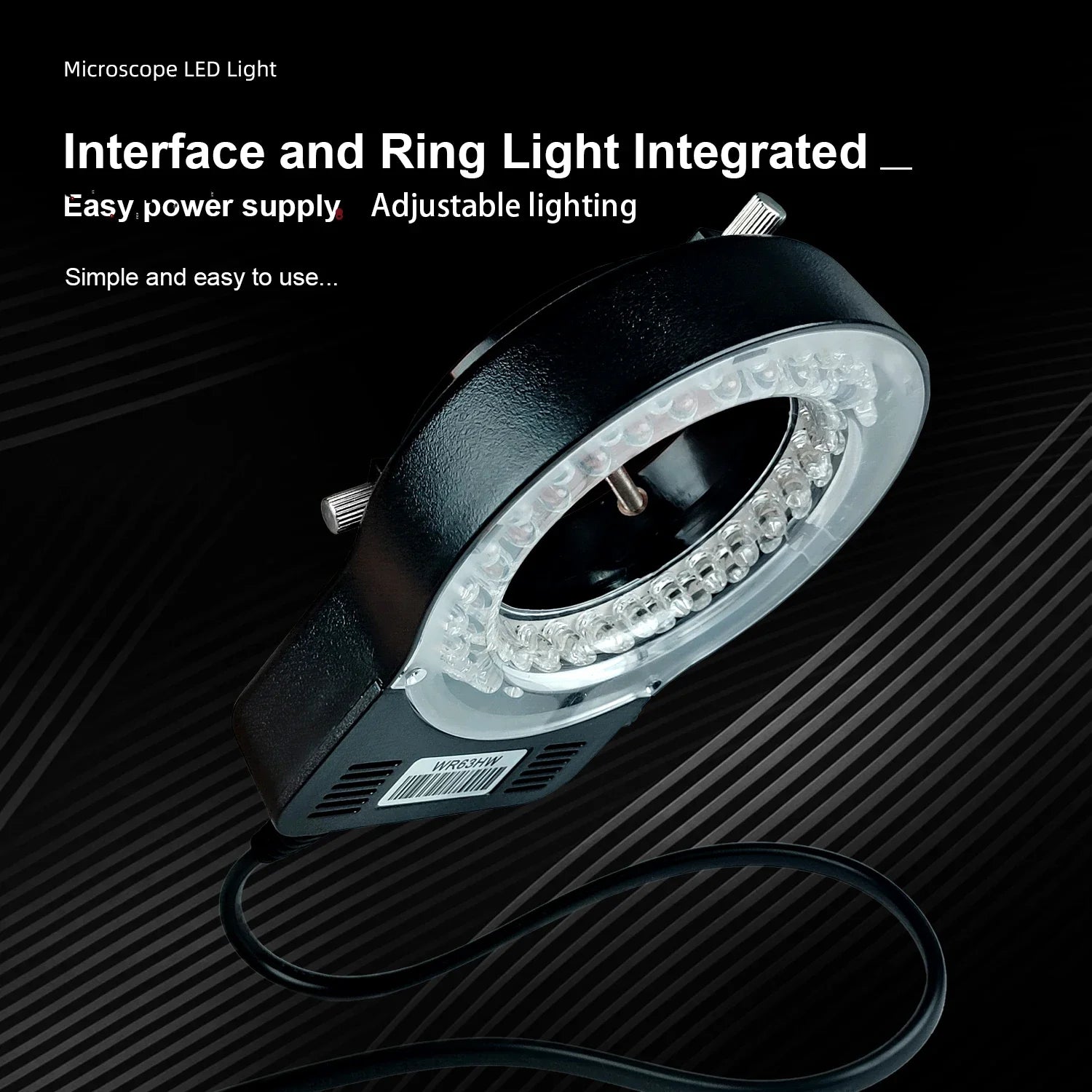

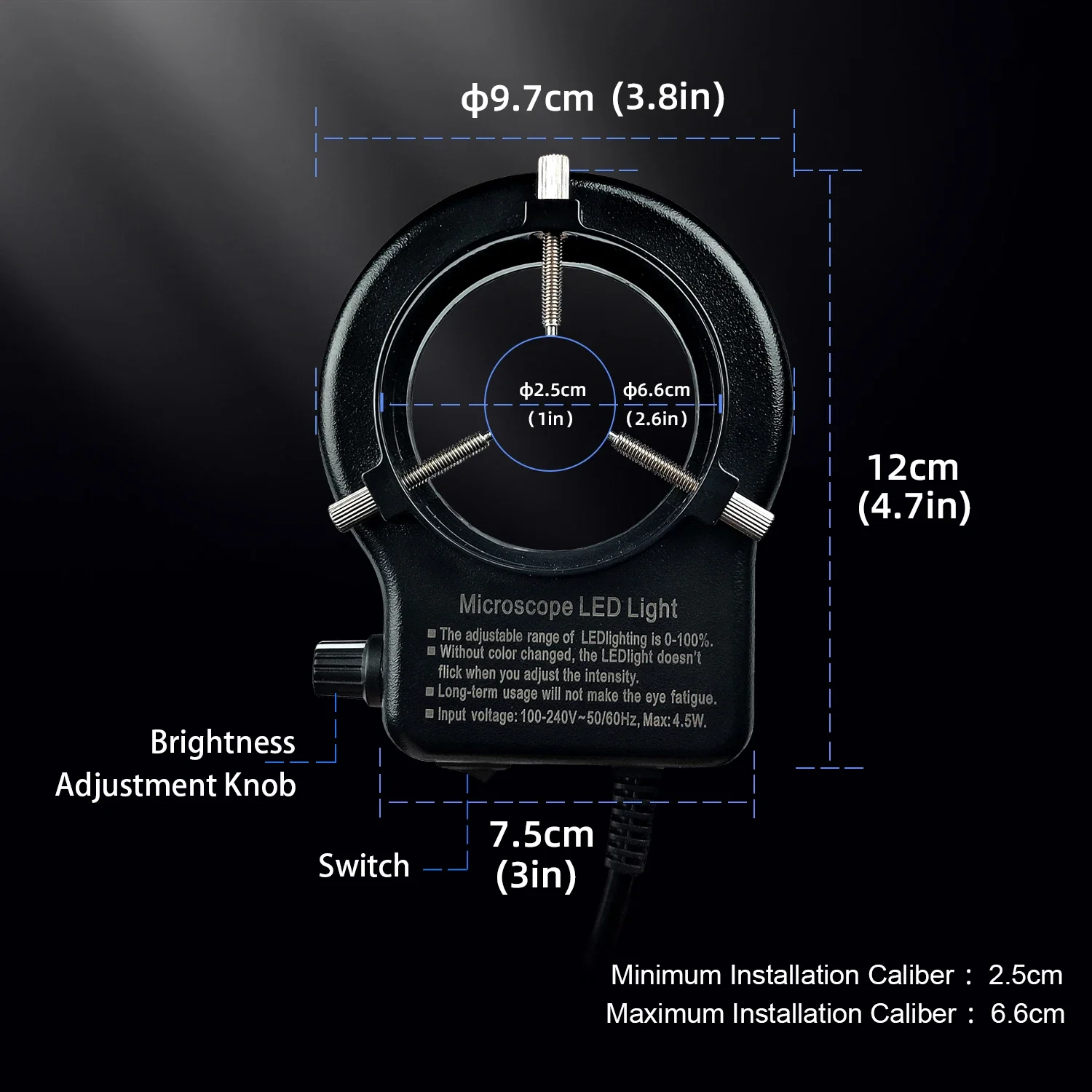

1 x LED Light
Gift: bracket light

Note

Different pixel quality and output interface for you to choose:
Interface options: USB/HDMI/VAG
Pixel quality can be selected: 13MP/48MP (4K)
The number of frames transmitted per second: 60Fps
Please pay attention to the picture and the parameter description in the packing list when purchasing!

Applicable scenarios: mobile phone repair/computer repair/watch repair/jewelry repair/various circuit board repair/various motherboard repair/any scene that needs to be enlarged can be used!
